Competitive Cylinder Block Grinding Milling Machine 3M9735A Normal CNC 2920*1100*2175
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Cylinder Block Grinding & Milling Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | Latest Day |
| Dimension(L*W*H): | 2920*1100*2175 | Weight (KG): | 2500 |
| Power (kW): | 0.04 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Japan, South Korea, Egypt, Kazakhstan, Peru, Thailand |
| Applicable Industries: | Restaurant, Farms, Manufacturing Plant, Construction Works , Energy & Mining, Retail, Building Material Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump |
| Brand: | TIMAC | Style: | Fashion |
| After-sales Service Provided: | Online Support | After Warranty Service: | Video Technical Support |
| Function: | Grinding Material | Machine Type: | Manual |
| Suitable For: | Grinding Surface | Color: | Customized Optional |
| Motor: | 3HP 220V/380V | Port: | Any China Port |
Product Description
Product Description

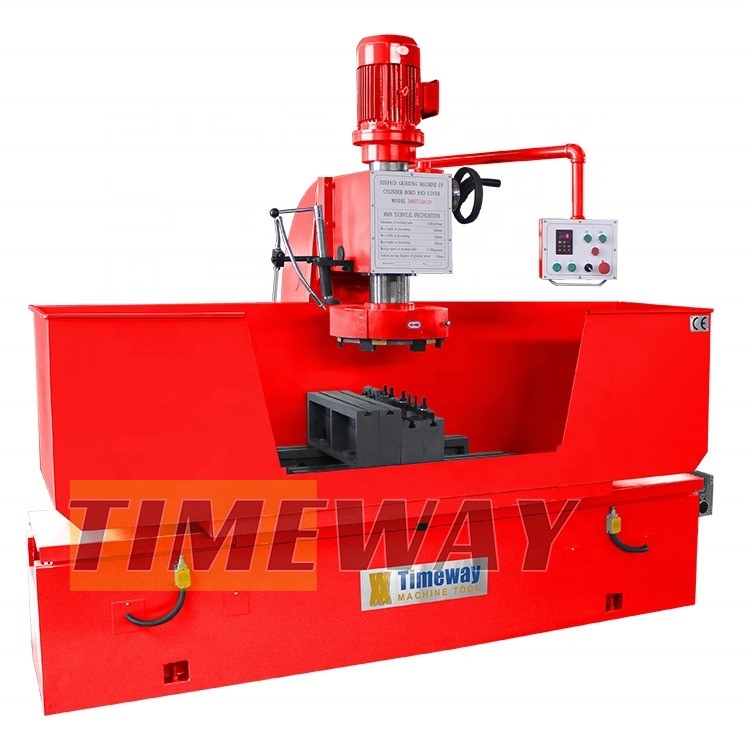

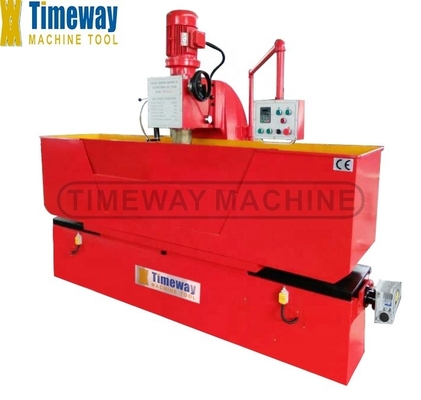

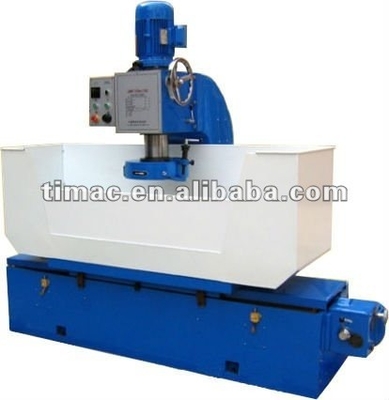

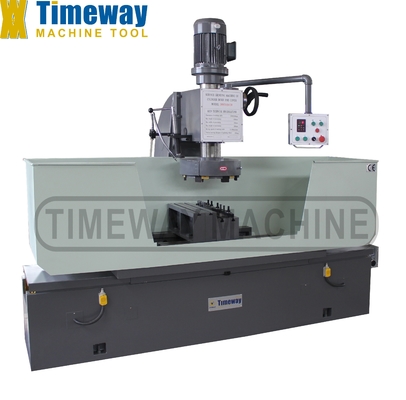

Cylinder Block Grinding & Milling Machine
1.The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2.The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material.
Feature：
1.Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled.
2.The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
3.Pulley adopt with unloading to make the main spindle only usutain twisting moment.
Specification
Specification | 3M9735Ax130 | 3M9735Ax150 |
Working table size | 1300x500mm | 1500x500 mm |
Max. length of grinding | 1300 mm | 1500 mm |
Max. width of grinding | 350 mm | 350 mm |
Max height of grinding | 600 mm | 800 mm |
Vertical moving distance of grinding head | 120 mm | 120 mm |
Transverse moving speed of working table | 40-900 mm/min | 30-900 mm/min |
Grinding wheel disk diameter | 360 mm | 360 mm |
Spindle speed | 1400/700 r/min | 1400/700 r/min |
Electric motor power cooling down | 0.4 Kw | 0.4 Kw |
Power of the main motor | 1.5/2.4 kw | 1.5/2.4kw |
Overall dimensions(LxWxH) | 2650x1050x2100 mm | 2800x1050x2100 mm |
Packing dimensions(LxWxH) | 2980x1150x2200 mm | 3200x1150x2280 mm |
N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
