220/380V Voltage Line Boring Machine for Cylinder Heads Blocks 24-85mm Boring Dia. T8108
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,999.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 0 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 580 R.p.m |
| Spindle Motor Power(kW): | 0.55 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Dimension(L*W*H): | 1620x700x1370 Mm |
| Weight (T): | 0.8 T | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Brazil, Peru, Saudi Arabia, Mexico, Russia, Spain | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Product Name: | Cylinder Body Bushing Boring Machine | Power(W): | 0.55 W |
| Weight: | 600/700 KG | Max.travel Of Shaft: | 100 Mm |
| Motor Power: | 0.55/0.75 Kw | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Philippines, Brazil, Pakistan, India, Mexico, Malaysia, Australia, Morocco, Chile, UAE |
| Port: | China Port | ||
Product Description

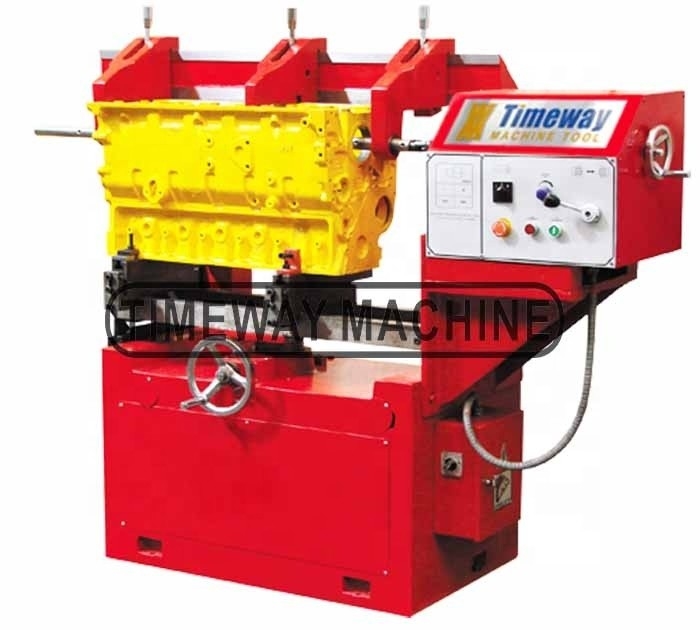

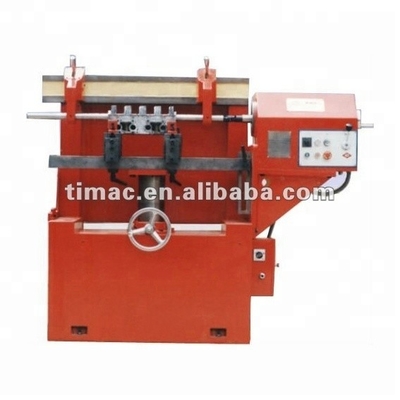

24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108
Features:
Line Boring Machine For Cylinder Heads & Blocks
1. Line boring machine T8108 is a small size machine which, however, has a wide range of application.
2. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.
3. It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.
4. The machine is sturdy, compact and allows accurate machining.
Parameter:
| Specification | T8108 |
| Boring range | Φ24-Φ85 mm |
| Max.travel of shaft | 100 mm |
| Max.boring length | Φ20 x 900 mm |
| Φ32 x 980 mm | |
| Main shaft rotating speed | 245, 380 rpm |
| Boring shaft feed | Stepless |
| Distance between cylinder fixture and boring shaft center | 45-295mm |
| Motor power | 0.55/0.75 Kw |
| Overall dimensions ( L×W×H) | 1620×700×1370 mm |
| Packing dimensions (L×W×H) | 1740×920×1700 mm |
| N.W./G.W. | 600/750 kg |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
