T8115 Cylinder Body Bushing Boring Machine with 300mm Travel W-axis and After Service
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 400*1350mm | Table Travel (X) (mm): | 300 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 700 Mm |
| Number Of Axes: | 3 | Travel (W-axis) (mm): | 300 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 1.1 | Type: | Horizontal |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Dimension(L*W*H): | As Model |
| Weight (T): | 2.2 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Peru, Russia, South Korea | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Product Name: | Cylinder Body Bushing Boring Machine | Power(W): | 0.75/1.1kw |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Egypt, Italy, Brazil, Peru, Mexico | Port: | Shanghai Seaport |
Product Description

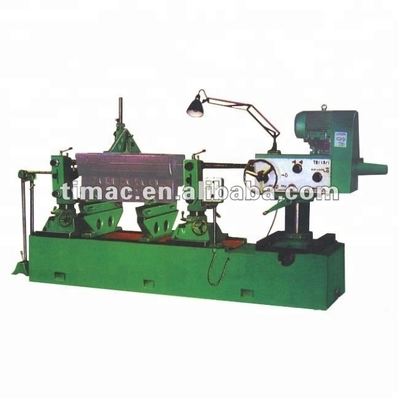

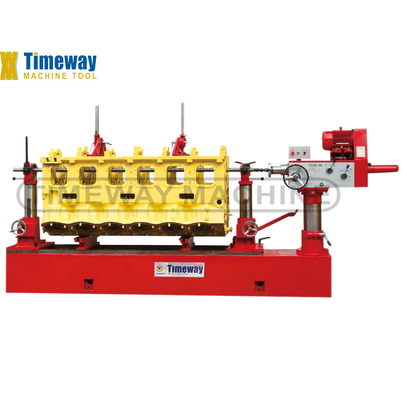

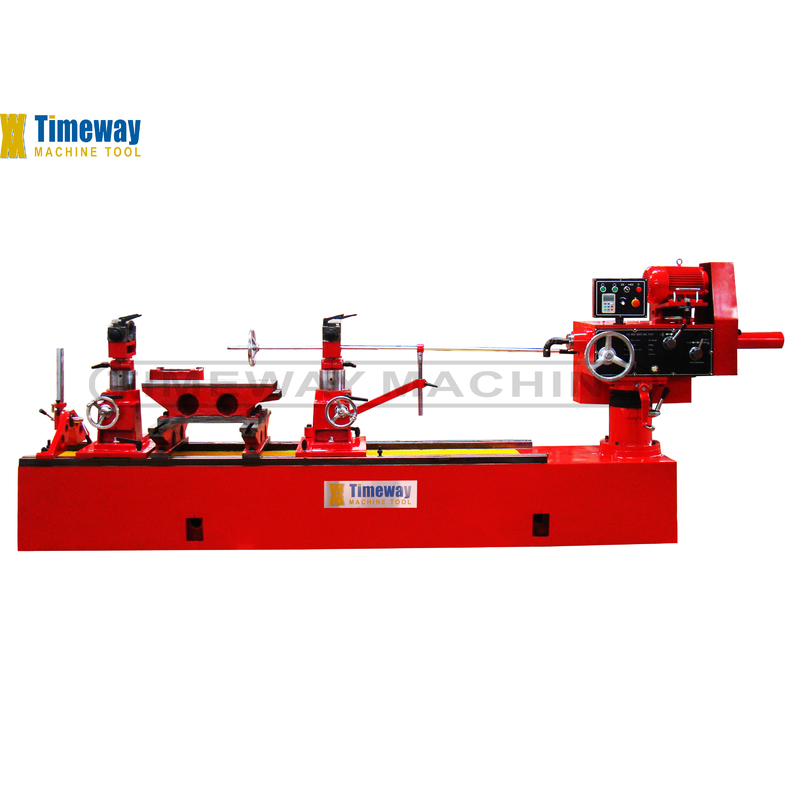

36-150mm Boring Dia./ Cylinder Body Bushing Boring Machine / T8115
Features:
Cylinder Body Bushing Boring Machine
1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the bushing.
5. With special measuring device, it is easily to measure the work piece.
Parameter:
| Specification | T8115 | T8120 |
| Range of hole diameter to be bored | φ36-Φ150mm | φ36-φ200mm |
| Max. length of cylinder body to be bored | 1600mm | 2000mm |
| Main shaft max. elongation | 300mm | 300mm |
| Main shaft rotating speed(6 steps) | 210-945rpm | 210-945rpm |
| Boring shat feed | 0.044, 0.167mm/r | 0.044, 0.167mm/r |
| Motor power | 0.75/1.1kw | 0.75/1.1kw |
| Overall diemension(LxWxH) | 3500x800x1500mm | 3900x800x1500mm |
| Packing diemension(LxWxH) | 3650x1000x1600mm | 4040x1020x1600mm |
| N.W/G.W | 1900/2200kg | 2200/2500kg |
