Energy Mining Brake Drum Lathe / Disc Brake Lathe Machine with accuracy Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets >=1 sets |
| Packaging Details: | wooden case, plywood case |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Weight (KG): | 300 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, India, Morocco, Kenya, Algeria, Sri Lanka | Brake Lathe: | Brake Drum And Disc Cutting Lathe Machine |
| Brand: | TIMAC | Style: | Fashion |
| Product Name: | Brake Disck Lathe Machine | Name: | Drum Brake Lathe Machine |
| After-sales Service Provided: | Online Support | Color: | Customer Choose |
| Machine Type: | Brake Lathe Machine | Model: | C9372 |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description
Product Description

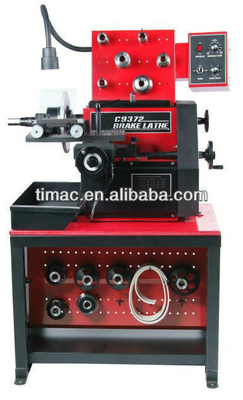

Brake Drum Disc Lathe Machine
*The fastest brake lathe in the world, one-minute brake lathe.
Feature：
*Work lamp can keep workpiece lighted even in dark area.
*The simple design can change from rotor to drum quickly.
*A tool tray and top board mean you can easy to take tools and adapters.
*Variable spindle speed and cross feed speed provide a perfect finish.
*The perfect finish meets or exceeds all OEM specifications.
*The automatic shut-off switches make the motor of rotor and drum automatic stop after finishing.
*Positive rate tooling for optimum finish with a single pass.
*A chip bin can keep work area clean and safe.
*The heavy work bench can reduce vibration and chatter, ensuring the smooth finish.
*A low board can put all adapters which you need.
*The simple design can change from rotor to drum quickly.
*A tool tray and top board mean you can easy to take tools and adapters.
*Variable spindle speed and cross feed speed provide a perfect finish.
*The perfect finish meets or exceeds all OEM specifications.
*The automatic shut-off switches make the motor of rotor and drum automatic stop after finishing.
*Positive rate tooling for optimum finish with a single pass.
*A chip bin can keep work area clean and safe.
*The heavy work bench can reduce vibration and chatter, ensuring the smooth finish.
*A low board can put all adapters which you need.
Specification
Specification | C9372 |
Rotor diameter | 4"-24" (102-610mm) |
Max. rotor thickness | 2.85"(73mm) |
Drum diameter | 6"-28"(152-711mm) |
Drum depth | 9"(229mm) |
Flywheel diameter | 6"-24"(152-610mm) |
Spindle weight capacity(standard 1" arbor) | 150Ibs(68kg) |
Spindle speed | 70-320RPM |
Feed rates-rotor and drum | 0"-0.026"(0-0.66mm) |
Feed rate per minute | 2.54"(64.5mm) |
Motor | 110V/220V,50/60HZ |
Gross weight | 300Kg |
Dimension (L×W×H) | 1130mm ×720mm×750mm |
Site requirements | 1525x1270x1780mm |
