470KG Brake Drum Lathe T8465 / Disc Cutting Machine/ Car Brake Lathe with Competitive
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Weight (KG): | 470 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, India, Morocco, Colombia, Kazakhstan, Japan | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Product Name: | Car Disc Brake Lathe | Brand: | TIMAC TOMEWAY |
| Tool Post Travel: | 250 Mm | Feed Rate: | 0.16 Mm/r |
| Name: | Brake Drum Lathe | Type: | Disc Cutting Machine |
| Machine Type: | Car Brake Lathe | Color: | Customer Choose |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description
Product Description

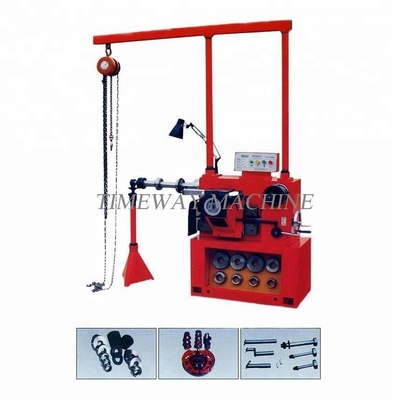

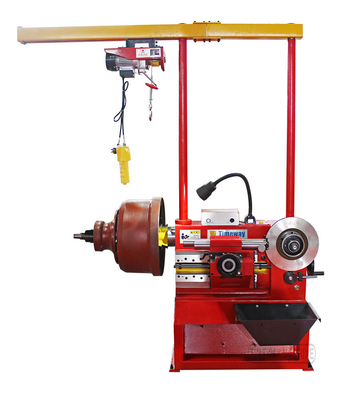

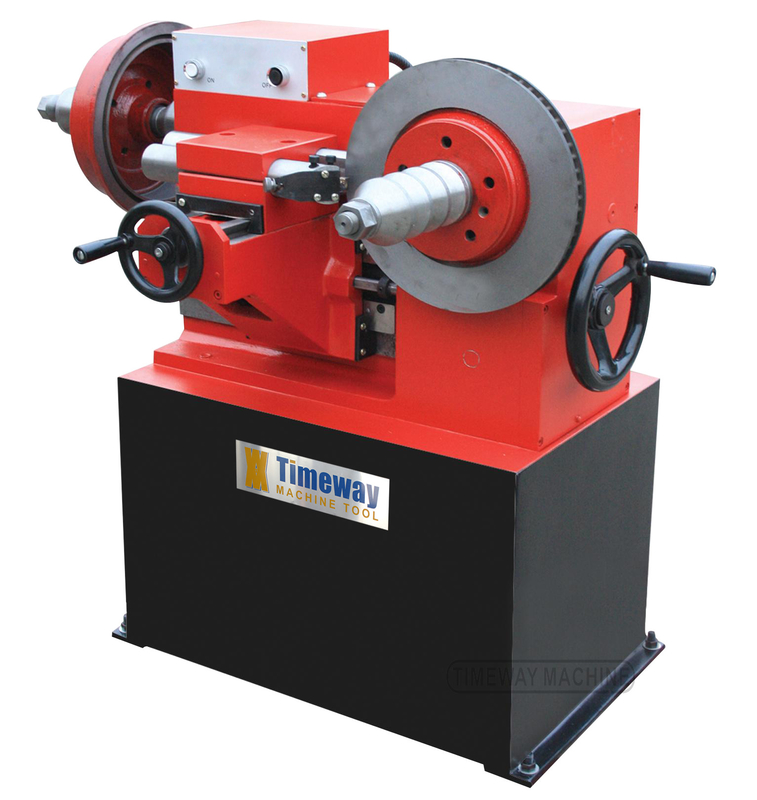

Brake Drum Lathe / Disc Brake Cutting Lathe
Feature：
1. Brake drum lathe T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of automobiles from minicar to medium trucks.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process
quality and lower your process cost.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process
quality and lower your process cost.
Specification
Specification | Unit | T8465 |
Drum dia. capacity | mm | 180-650mm |
Disc dia. capacity | mm | 0-500 |
Spindle speed (three grades) | r/min | 25, 40, 70 |
Tool post Travel | mm | 250 |
Feed Rate | mm/r | 0.16 |
Motor | kw | 1.1/1400 |
Length | mm | 800 |
Width | mm | 875 |
Height | mm | 940 |
Net Weight | kg | 580 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
