Lightweight 1.1 KG TQZ8560 Air Float Auto Centering Gas Valve Seat Boring Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets >=1 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Weight (KG): | 1.1 | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Brazil, Kenya, Colombia, Algeria, Ukraine | Spindle Travel: | 200mm |
| Fixture Rotary Angle: | +45°~ -15° | Power Supply: | 220V/50HZ |
| Product Name: | Valve Seat Boring Machine | Name: | Gas Valve Seat Boring Machine |
| Type: | Boring Machine | Key Word: | Valve Boring Machine |
| Machine Type: | Boring Machine For Valve Seats | Color: | Customer Choose |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description
Summary
*Model TQZ8560 valve seat boring machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc.
*The machine features are airfloating, vacuum clamping, high positing precision, easy operation. *The machine is set with grinder for cutter and vacuum check device for workpiece.
Product Description

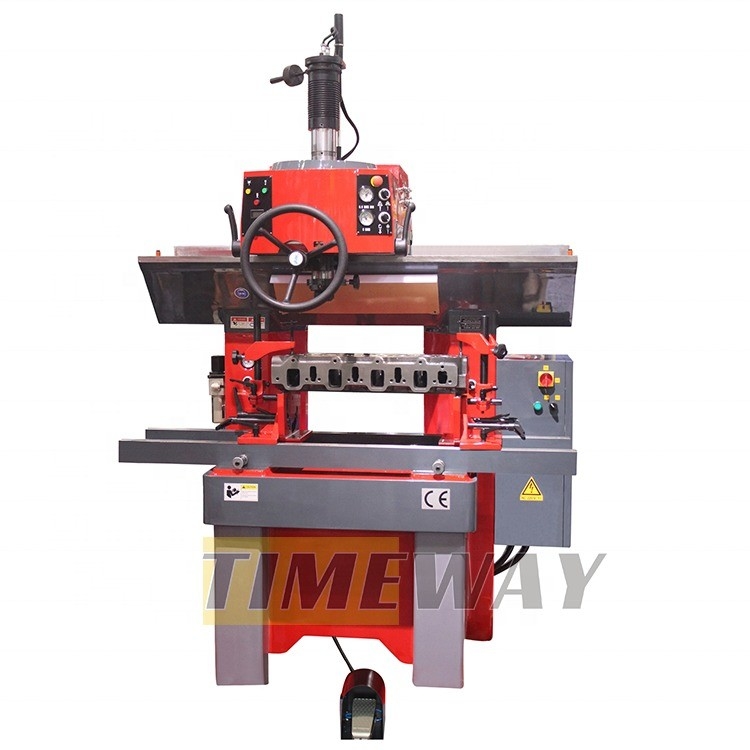

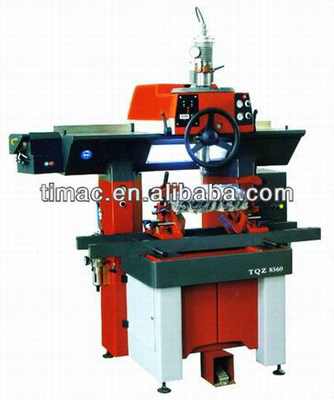

Air Float Auto Centering Gas Valve Seat Boring Machine
Feature：
1. Moden technic, new design;
2. Air floating, air vacuum clamping, auto-centering, high, positing precision;
3. Straight and V valve seats;
4. 30°, 45°, 60°and multy-angle cutter;
5. Central operation, quick clamping;
6. Spindle frequency coverter, unstep speeds;
7. High quality surface, different clour paint;
2. Air floating, air vacuum clamping, auto-centering, high, positing precision;
3. Straight and V valve seats;
4. 30°, 45°, 60°and multy-angle cutter;
5. Central operation, quick clamping;
6. Spindle frequency coverter, unstep speeds;
7. High quality surface, different clour paint;
Specification
Specification | TQZ8560 |
Spindle travel | 200 mm |
Spindle speeds | 30~750/1000rpm |
Boring range | Φ14~Φ60 mm |
Spindle swing angle | 5° |
Spindle cross travel | 950 mm |
Spindle longitudinal travel | 35 mm |
Spindle motor power | 0.4KW |
Air supply | 0.6~0.7Mpa; 300L/min |
Machine weight | 1050/1200kg |
Overall dimension | 1600x1050x2170mm |
