Brake Lathe Machine T8440 The Perfect Solution for Brake Drum and Disc Cutting Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,000.00/sets >=1 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Weight (KG): | 195 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Brazil, Peru, Mexico, Russia, Argentina, South Korea, Sri Lanka | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Drum Dia. Capacity: | 200-400 Mm | Machine Dimensions (L*W*H): | 770*650*1130 Mm |
| Product Name: | Metal Cutting Disc Machine | Name: | Drum Brake Lathe Machine |
| Color: | Customer Choose | Key Selling Point: | Competitive Price |
| Machine Type: | Brake Lathe Machine | Key Word: | Drum Brake Lathe Machine |
| Model: | T8440 | Port: | China Port |
Product Description
Summary
T8440 Brake Drum & Disc Cutting Machine is a multi-function machine to bore and repair brake drums & brake discs.
The Machine's design & manufacture conform to the requirement of our national < Brake drum cutting machine GB12064>.
Product Description

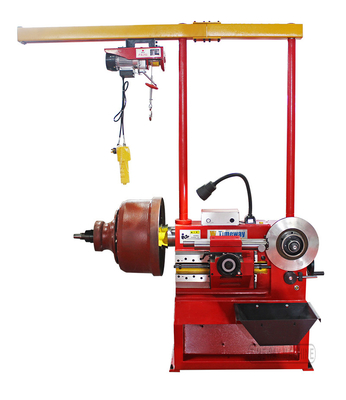

BRAKE DRUM LATHE / DISC CUTTING MACHINE
Specification
Specification | Unit | T8440 | ||
Drum dia. capacity | mm | 200-400 | ||
Disc dia. capacity | mm | ≤400 | ||
Spindle speed three steps | rpm | 60, 90,120 | ||
Tool post travel | mm | 100 | ||
Feed rate | mm/min | 7.6-26 | ||
Motor | kw/rpm | 0.75/1400 | ||
Dimension: not incluble crane and outboard supporter | ||||
Overall dimensions | mm | 770x650x1130 | ||
Net weight | kg | 195 | ||
Gross weight | kg | 230 | ||
Feature：
* This machine is equipped with all kinds of types and specification’s clamps, in order to fix brake components for the implementation of boring & repair. * It is adapted to bore & repair a lots of car brake drums and discs. * This machine is suitable for use when repairing vehicles' brake components.
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Factory Display：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
