500x1500 mm Table Size T200A Vertical Boring Machine with 14-900 mm/min Spindle Feed
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,189.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 500x1500 | Table Travel (X) (mm): | 700 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 300 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 600 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Range Of Spindle Speed(r.p.m): | 850 R.p.m |
| Spindle Motor Power(kW): | 5.5 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220V 380V | Dimension(L*W*H): | 2250x1900x2280 Mm |
| Weight (T): | 3.8 T | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Germany, Indonesia, Russia, Chile, Algeria, Romania, South Africa | Product Name: | Vertical Boring Machine |
| Number Of T-slots: | 5 Pcs | Dimensional Precision Of Boring Hole: | H7 |
| Main Motor Power: | 3 Kw | Spindle Travel: | 700 Mm |
| Feeding Of The Spindle: | 14-900 Mm/min | Table Size: | 500x1500 Mm |
| X-axis Travel: | 700mm | Y-axis Travel: | 500mm |
| Z-axis Travel: | 300mm | Port: | CHINA PORT |
Product Description
Product Description

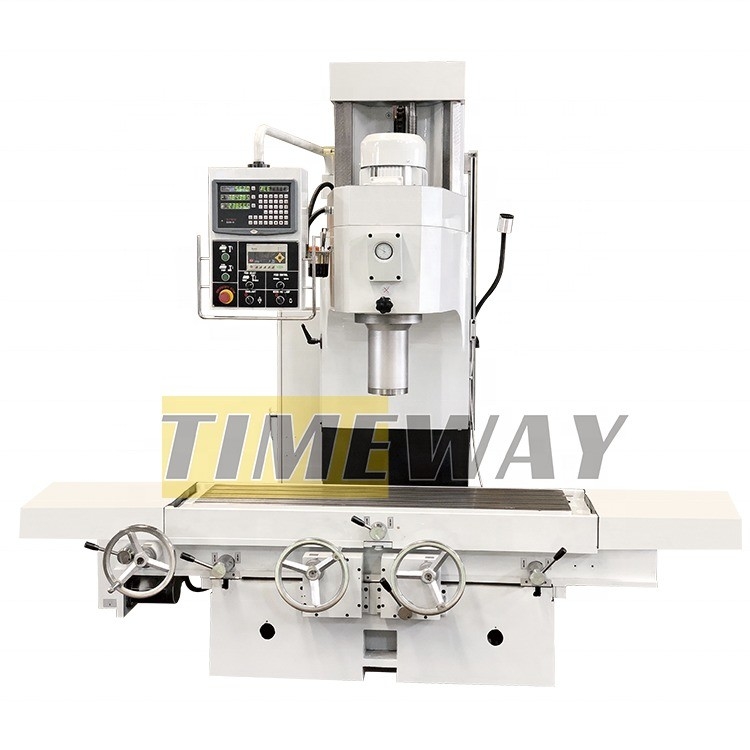

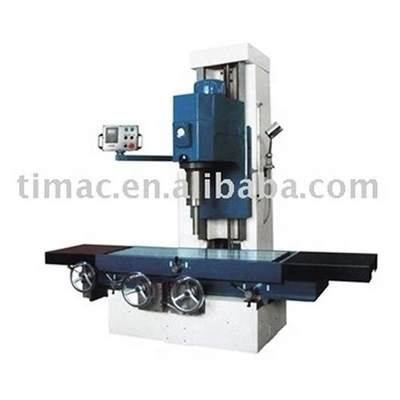

Vertical Boring Machine
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Specification
Model | T170A | T200A | T250A | ||||
Max. boring diameter | Φ170 mm | Φ200mm | Φ250 mm | ||||
Max. boring depth | 400 mm | 500 mm | 500 mm | ||||
Max. drilling & reaming diameter | Φ30 mm | ||||||
Spindle speed | 120-860 r/min | ||||||
Feeding of the spindle | 14-900 mm/min | ||||||
Rapid moving speed of the spindle | 1000 mm | ||||||
Spindle travel | 700 mm | ||||||
Distance between spindle end face and table | 0-700 mm | ||||||
Distance between spindle axis and carriage vertical plane | 375 mm | ||||||
Max longitudinal travel of working table | 1500 mm | ||||||
Max cross travel of the working table | 200 mm | ||||||
Working table size (W×L) | 500×1250 mm | 500×1500 mm | |||||
Quantity of “T” Slot | 5 qua. | ||||||
Main motor | 5.5 Kw | ||||||
Boring precision | Dimension Precision | H7 | |||||
Boring roughness | Ra 2.5 | ||||||
Overall dimensions (L×W×H) | 2600×1630×2300 mm | ||||||
Packing dimensions (L×W×H) | 2250×1900×2280 mm | ||||||
N.W./G.W. | 3300/3600 kg | 3500/3800 kg | |||||
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
