110v/220v/380v VOLTAGE DM-50 Model Automobile Brake Shoe Grinding Machine Within Your Budget
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,980.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Knife Grinder | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220v 380v |
| Dimension(L*W*H): | 920x750x350mm | Weight (KG): | 150 |
| Power (kW): | 0.75 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Showroom Location: | Australia, South Africa, Peru, Thailand, Chile, Philippines, Brazil, Indonesia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine |
| Product Name: | Disc Brake Grinding Machine | Max. Outside Dimension Of Cap: | 160 Mm |
| Max. Thickness Of The Connecting Rod: | 50 Mm | Grinding Wheel Speed: | 2800 Rpm |
| Usage: | Special | Power: | 0.75kw |
| VOLTAGE: | 110V/220V/380V | COLOR: | Standard |
| Model: | DM100 | Port: | CHINA PORT |
Product Description
Product Description
Brake Shoe Grinding Machine
Function Introduction:
Cap and rod grinding machine is mainly used when grinding the connecting rod and its end faces for the engines of automobile, tractors and so on.
Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted to accurately regulate the degree of parallelism between the grinding face of workpiece and the end-face of grinding wheel so that the processing requirements can be fully satisfied with a high precision of grind. The lateral shifting of the trailing bar adopts the gear-rack structure to adapt to different grinding speeds, with an easy operation.
Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted to accurately regulate the degree of parallelism between the grinding face of workpiece and the end-face of grinding wheel so that the processing requirements can be fully satisfied with a high precision of grind. The lateral shifting of the trailing bar adopts the gear-rack structure to adapt to different grinding speeds, with an easy operation.
Specification

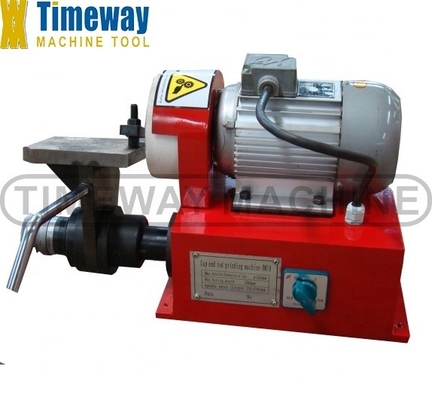

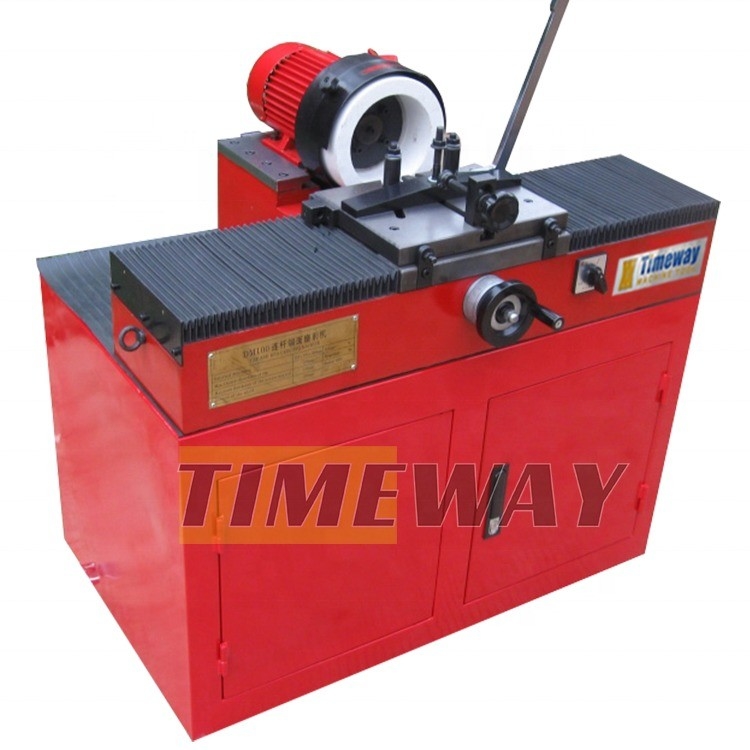

Model | Unit | DM50 | DM100 |
Max. outside dimension of cap | mm | 160 | 275 |
Max. thickness of the connecting rod | mm | 50 | 100 |
Grinding wheel speed | rpm | 2800 | 2800 |
Main motor power | kw | 0.75 | 0.75 |
Base dimensions (LxWxH) | mm | - | 960x580x665 |
Machine dimensions (LxWxH) | mm | 520x350x310 | 920x750x350 |
Packing dimensions (LxWxH) | mm | 650x380x420 | 1360x890x1200 |
N.W/G.W | kg | 35/45 | 150/180 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
