T8445 Brake Drum Lathe/Disc Cutting Machine for Heavy-Duty Brake Drums and Discs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 3-4 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Years | Model: | T8445 |
|---|---|---|---|
| Brand: | TIMAC | Product Name: | BRAKE DRUM LATHE |
| Port: | CHINA PORT | ||
Product Description

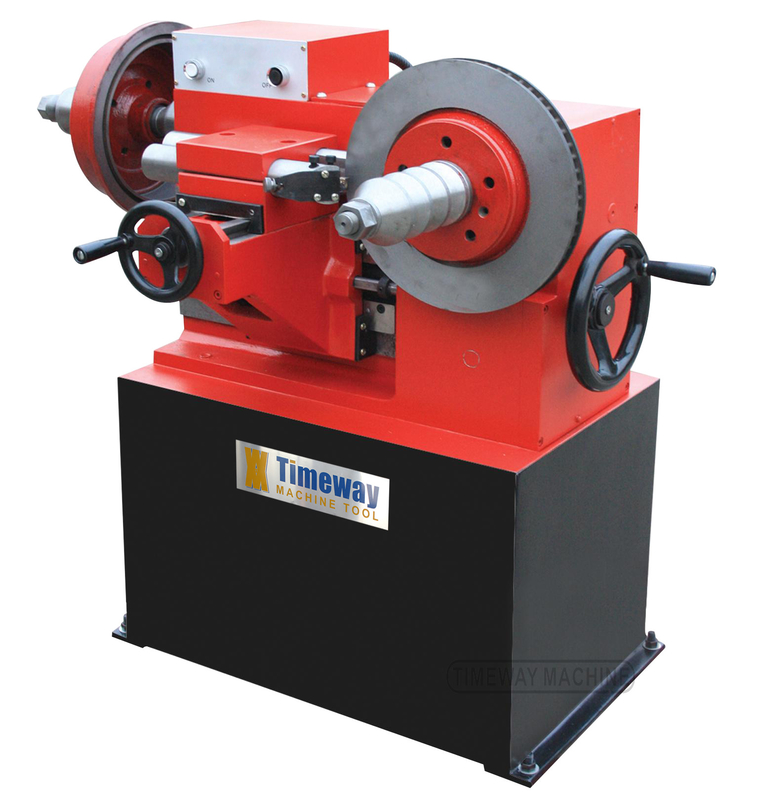

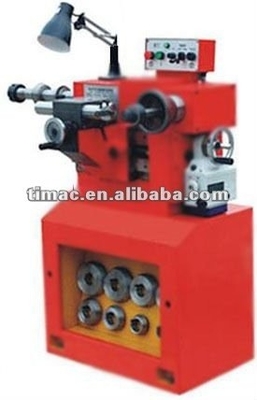

T8445 (FCV) BRAKE DRUM LATHE/ DISC CUTTING MACHINE

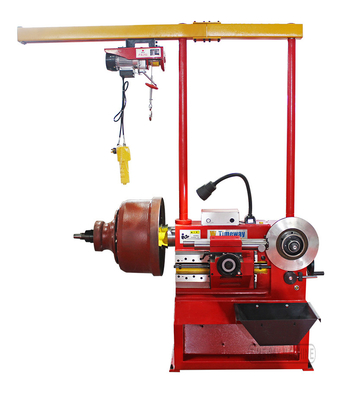

This machine is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of auto-mobiles from mini-car to heavy trucks. The unusual feature of this equipment is its twin-spindle each other perpendicular structure. The brake drum/shoe can be cut on the first spindle and the brake disc can be cut on the second spindle. This equipment has higher rigidity, accurate workpiece positioning and is easy to operate. This equipment is fit up with out-board supporter to advance loading. Capability of first spindle. Besides, this equipment is fit up with set of crane which turn loading and unloading a heavy break drum into easier. If you adopt this equipment, it can help your enterprise set up higher reputation due to better. Process quality and lower your process cost.
T8445 Parameter
| Model | Unit | T8445 | |
| Drum dia Capacity | mm | 180-450 | |
| Disc dia Capacity | mm | ≤400 | |
| Spindle speed (three grades) | r/min | 30, 50, 85 | |
| Toolpost Travel | mm | 170 | |
| Feed Rate | mm/r | 0-0.5 | |
| Motor | kw | 1.1/1400 | |
| Power Requirement | 380V/ 50HZ/ 3phases/ 3A | ||
| Dimension:not incluble crane and outboard supporter | |||
| Length | mm | 820 | |
| Width | mm | 1080 | |
| Height | mm | 1280 | |
| Net Weight | kg | 320 | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
