220V/380V Voltage Cylinder Head Block Surface Grinding Machine for CNC Plasma Cutters
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,880.00 - $12,800.00/sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | CNC Plasma Cutters |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Voltage: | 220V/380V |
| Rated Power: | 2.2kw | Dimension(L*W*H): | 2800x1050x1700mm |
| Year: | 2020 | Warranty: | One Year, 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, India, Morocco, Kenya, Argentina, Algeria, Sri Lanka | Weight (KG): | 2800 KG |
| After-sales Service: | Engineers Available To Service Machinery Overseas | Brand: | TIMAC |
| Style: | Fashion | Weight: | 2800kg |
| Port: | China Port | ||
Product Description

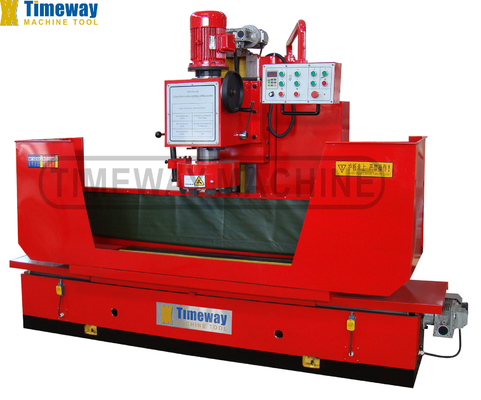

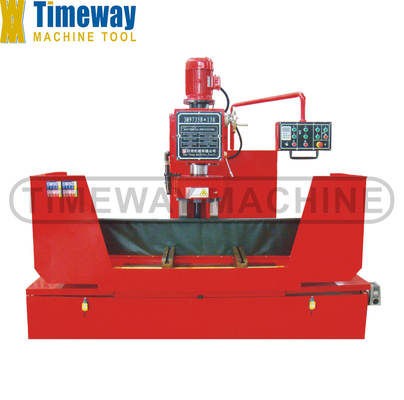

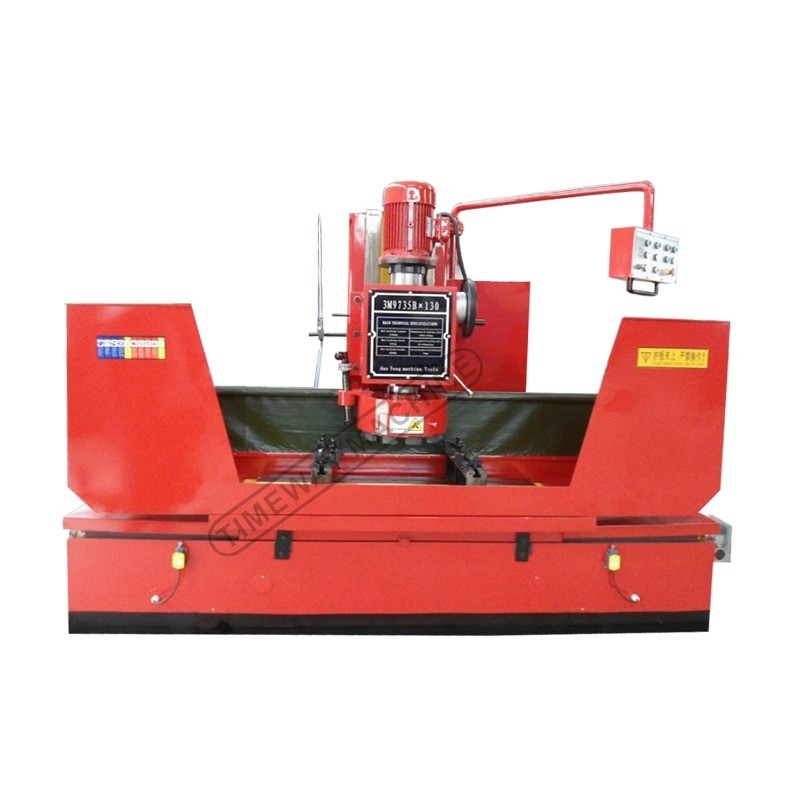

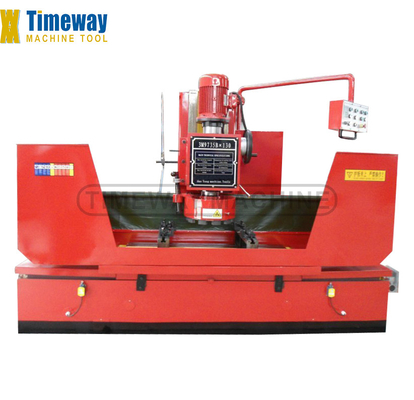

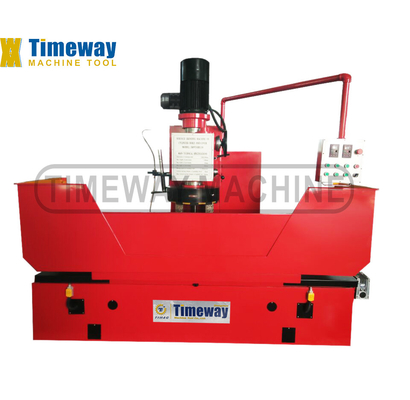

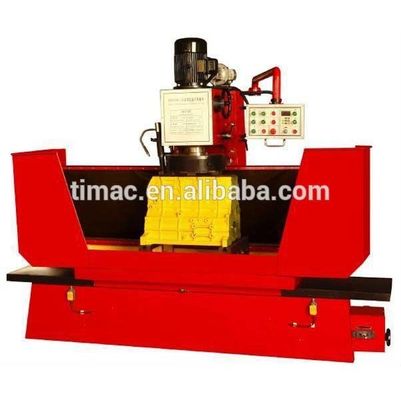

CYLINDER HEAD & BLOCK SURFACE GRINDING MACHINE
1.This machine is accurate and wide use. It makes possible to solve mostly grinding jobs, and it is optimal and economic choice.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
| Specification | 3M9735Bx130 | 3M9735Bx150 |
| Working table size | 1300 x500mm | 1500x500mm |
| Max working length | 1300 mm | 1500 mm |
| Max. width of grinding | 350 mm | 350 mm |
| Max height of grinding | 800 mm | 800 mm |
| The vertical moving distance of grinding head | 60 mm | 60 mm |
| The vertical moving distance of spindle box | 800 mm | 800 mm |
| Spindle speed | 1400/700 r/min | 1400/700 r/min |
| Transverse moving speed of working table | 40-900 mm/min | 40-900 mm/min |
| Overall dimensions(LxWxH) | 2800x1050x1700 mm | 3050x1050x1700 mm |
| Packing dimensions(LxWxH) | 3100x1200x1850 mm | 3350x1200x1850 mm |
| N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
