Maximize Your Output with T8018A Cylinder Boring Machine 140-610 r/min Spindle Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets >=1 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Years | Product Name: | CYLINDER BORING MACHINE |
|---|---|---|---|
| Brand: | TIMAC | Style: | Fashion |
| Max. Boring Depth: | 450 Mm | The Rotational Speed Of Spindle: | 140-610 R/min |
| Spindle Travel: | 500 Mm/r | The High Rising Speed Of Spindle: | 2.65 M/min |
| Table Size: | 1200*500 Mm | Rapid Travel Of Guide Slide: | 2800 Mm/min |
| Color: | Customized | Port: | CHINA PORT |
Product Description
Product Description

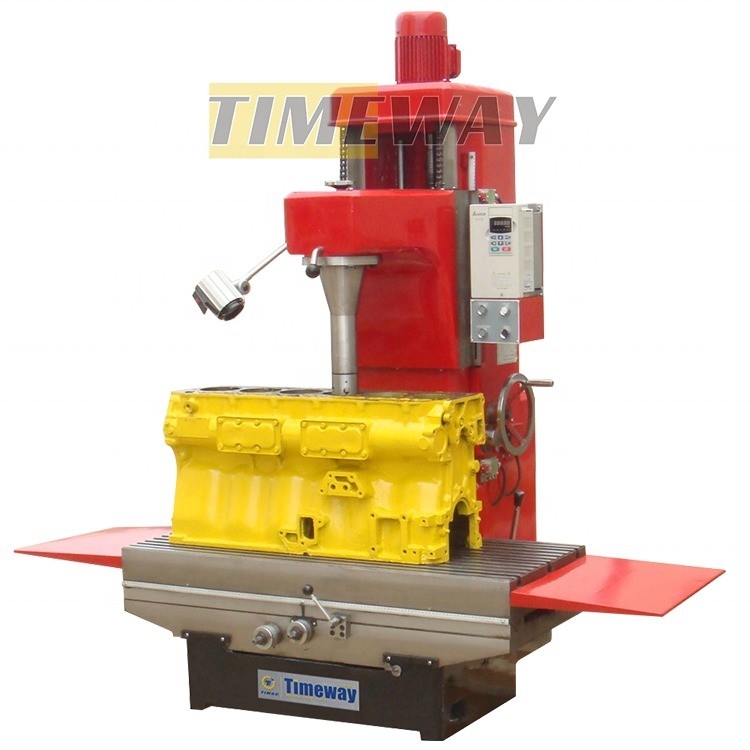

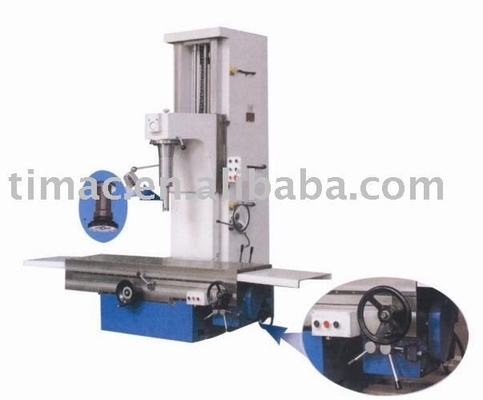

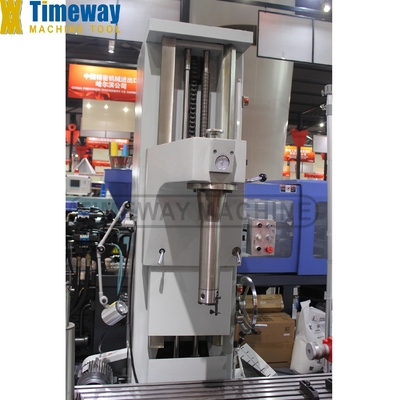

CYLINDER BORING MACHINE
The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
Feature：
T8018A is a mechatronics driven and spindle speed frequence changed speed variation.
T8018B is a mechanically driven.
T8018C is used for processing special large motor cylinders.
The machines are with the advantages of cramped structure, reliable performance, wide uses and high processing accuracy, etc.
T8018B is a mechanically driven.
T8018C is used for processing special large motor cylinders.
The machines are with the advantages of cramped structure, reliable performance, wide uses and high processing accuracy, etc.
Specification
Model | T8018A | T8018B | T8018C | |||
Range of boring diameter | Φ30-Φ180 mm | Φ42-Φ180 mm | ||||
Max. boring depth | 450 mm | 650 mm | ||||
The rotational speed of spindle | 140-610 r/min | 175,230,300,350,460,600 r/min | 175,230,300,350,460,600 r/min | |||
Spindle feed | 0.05,0.10,0.20 mm | 0.05,0.10,0.20 mm | ||||
Spindle travel | 500 mm/r | 800 mm/r | ||||
The high rising speed of spindle | 2.65 m/min | 2.65 m/min | ||||
The distance from the central line of the spindle to the body | 320 mm | 315 mm | ||||
Table size | 1200×500 mm | 1680×450 mm | ||||
Table travel | Crosswise | 100 mm | 150 mm | |||
Lengthwise | 800 mm | 1500 mm | ||||
Rapid travel of guide slide | 2800 mm/min | 2800 mm/min | ||||
Rapid travel of table | 1400 mm/min | |||||
Machine power | Main motor | 3 Kw | 2.4 / 3 Kw | 2.4/3 Kw | ||
Motor for quick-moving | 0.75 Kw | 0.75 Kw | ||||
Overall dimensions(L×W×H) | 2000×1235×1920 mm | 2680×1500×2325 mm | ||||
Packing dimensions(L×W×H) | 1400×1400×2250 mm | 1578×1910×2575 mm | ||||
N.W./G.W. | 2000/2200 kg | 3500/3700 kg | ||||
