3 kW Spindle Motor Vertical Boring Machine for 850 mm Table Travel in Industrial Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,500.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1100 Mm | Table Travel (Y) (mm): | 850 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 250 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 200 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Pressure Vessel |
| No. Of Spindles: | Twin | Range Of Spindle Speed(r.p.m): | 840 R.p.m |
| Spindle Motor Power(kW): | 3 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380V | Dimension(L*W*H): | 2210x1600x2340mm |
| Weight (T): | 3.8 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | Canada, Turkey, Italy, Peru, Chile, UAE, Algeria, Romania | Product Name: | Vertical Boring Machine |
| Brand: | TIMAC | Max. Boring Diameter: | 200mm |
| Max. Boring Depth: | 500mm | Spindle Travel: | 710mm |
| Table Longitudinal Travel: | 900mm | Table Cross Travel: | 100mm |
| N.W./G.W.: | 3300/3800kg | Port: | CHINA PORT |
Product Description

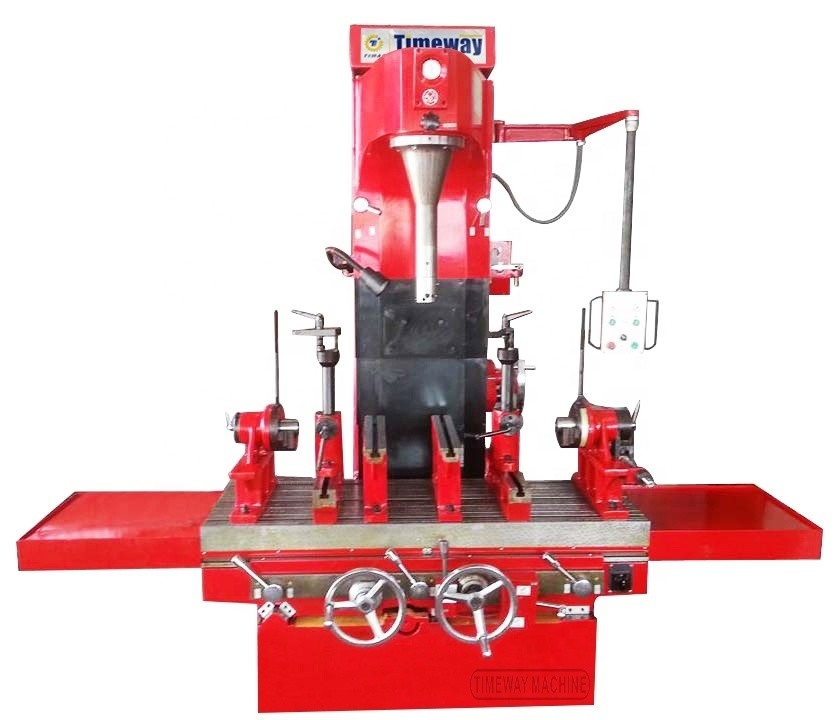

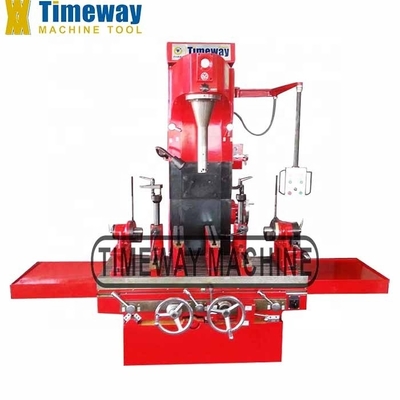

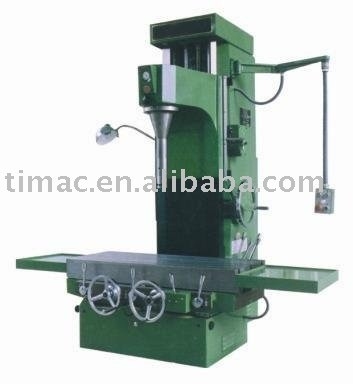

Vertical Boring Machine
The B200B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
The BM200C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling, reaming.
Parameter
| Model | B200B | BM200C |
| Max. boring diameter | Φ200 mm | Φ200 mm |
| Max. boring depth | 500 mm | 500 mm |
| Milling cutter head diamenter | - | 250 mm |
| Max. milling area (L×W) | - | 850×250 mm |
| Spindle speed range | 53-840 r/min | |
| Spindle feed range | 0.05-0.20 mm/r | |
| Spindle travel | 710mm | |
| Distance from spindle axis to carriage vertical plane | 315mm | |
| Table longitudinal travel | 900mm | 1100 mm |
| Table longitudinal feed speed | - | 54,108 mm/min |
| Table longitudinal quick move speed | - | 1500 mm/min |
| Table cross travel | 100 mm | |
| Boring dimension accuracy | IT7 | |
| Milling dimension accuracy | - | IT8 |
| Roundness | 0.005 | |
| Cylindricity | 0.01/300 | |
| Boring surface roughness | Ra1.6 | |
| Milling surface roughness | - | Ra1.6-3.2 |
| Overall dimensions (L×W×H) | 2210×1600×2340 mm | 2610×1600×2350 mm |
| Packing dimensions (L×W×H) | 1850×1840×2230 mm | |
| N.W./G.W. | 3300/3800 kg | 3600/4000 kg |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
