Product 2020 High Fashion Car Engine Piston Cutting Machine with 1000mm X-axis Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE,ISO Standrd. |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,880.00/sets 3-4 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 400 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 1000 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 45 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Max. Table Load(kg): | 50 |
| Travel (W-axis) (mm): | 320 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Range Of Spindle Speed(r.p.m): | 370 R.p.m | Spindle Motor Power(kW): | 1.1 |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | High |
| Voltage: | As Request | Dimension(L*W*H): | 1250x1050x1970mm |
| Weight (T): | 1.3 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Germany, Philippines, Saudi Arabia, India, Mexico, Thailand, Morocco, Kenya | Product Name: | Vertical Fine Boring Machine |
| Style: | Fashion | Brand: | TIMAC |
| After-sales Service Provided: | Video Technical Support | After Warranty Service: | Online Support |
| Table Size: | Custmized | X-axis Travel: | 1000mm |
| Y-axis Travel: | 45mm | Z-axis Travel: | 0mm |
| Port: | China Port. | ||
Product Description
Product Description

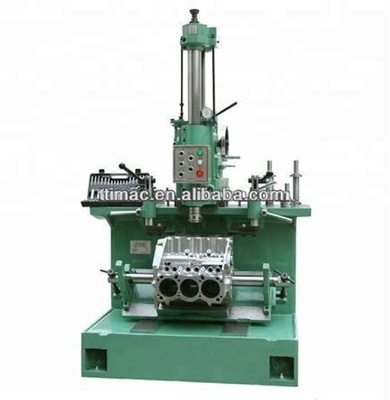

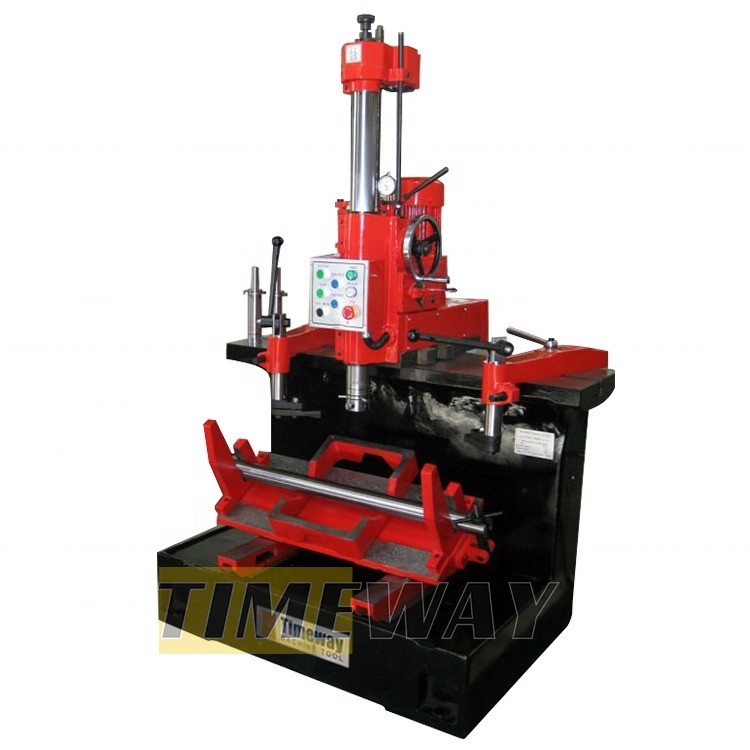

Vertical Air-floating Fine Boring Machine

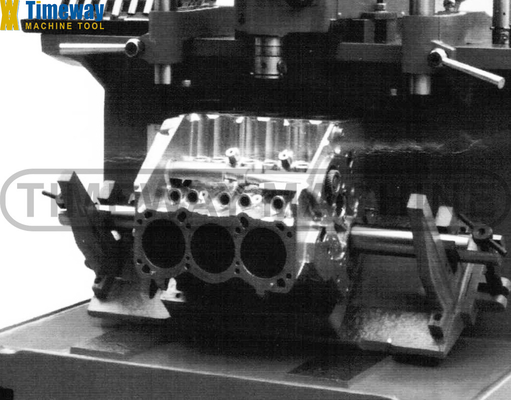

The machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Feature：
* Reliable performance, widely use, processing accuracy, high productivity. * Easy and flexible operation. * Air-floating position quick and precise, automatic pressure. * Spindle speed is suitability. * The tool setting and measuring device. * There is a vertical measuring device. * Good rigidity, amount of cutting.
Specification
Specification | Unit | TB8016 |
Boring diameter | mm | 39-160 |
Max. boring depth | mm | 320 |
Boring head travel (longitudinal/transversal) | mm | 1000/45 |
Spindle speed (4 steps) | r/min | 125, 185, 250, 370 |
Spindle feed | mm/r | 0.09 |
Spindle quick reset | mm/min | 430, 640 |
Pneumatic pressure | Mpa | 0.6 |
Motor output | kw | 0.85/1.1 |
Overall dimensions (LXWXH) | mm | 1250x1050x1970 |
Machine weight | kg | 1300 |
V-block fixture patented system (special accessories) | (°) | 30/45 |
V-block fixture patented system weight | kg | 130 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
