200 mm Table Travel Z Vertical Fine Boring Machine T7220B T7220C for Large Workpieces
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,580.00/sets 2-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 500 Set/Sets per Month . |
|
Detail Information |
|||
| Table Size (mm): | 850x250 | Table Travel (X) (mm): | 200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 200 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 500 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 840 R.p.m |
| Spindle Motor Power(kW): | 5.5kw | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380v | Dimension(L*W*H): | 2610x1600x2350mm |
| Weight (T): | 3.8 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | United States, Philippines, India, Colombia, Kazakhstan, Japan | Product Name: | Vertical Boring Machine |
| Brand: | TIMAC | Weight: | 3800 Kgs |
| Max. Boring Diameter: | 200mm | Max. Boring Depth: | 500mm |
| Milling Cutter Head Diamenter: | 250mm | Spindle Travel: | 710mm |
| Table Longitudinal Travel: | 1100mm | Port: | China Port |
Product Description

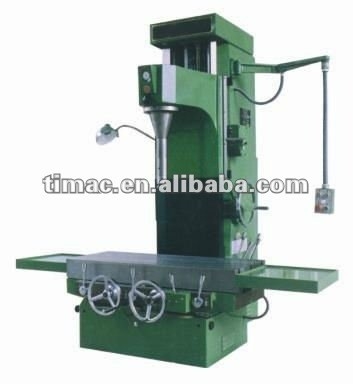

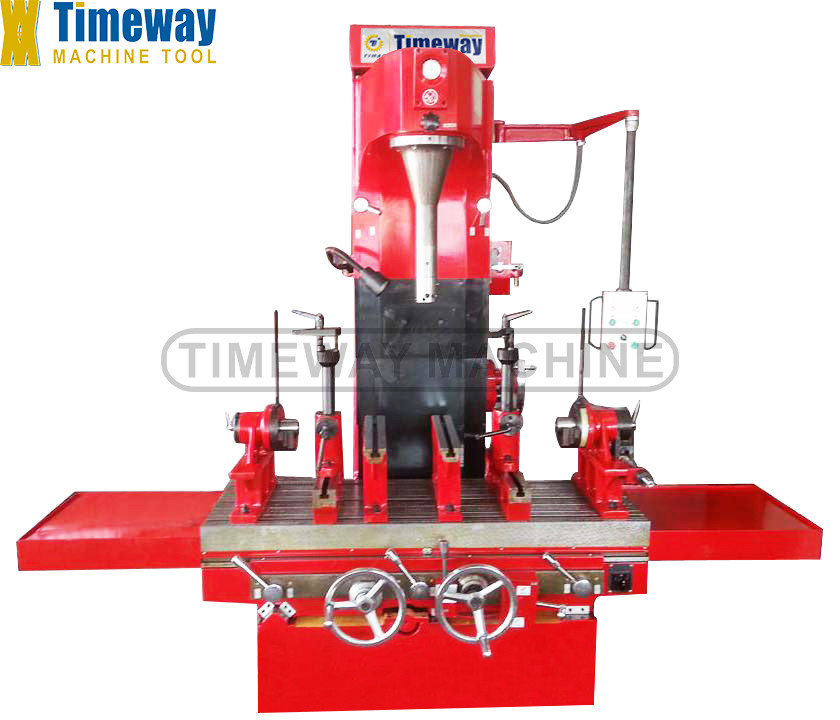

VERTICAL BORING MACHINE
Features:

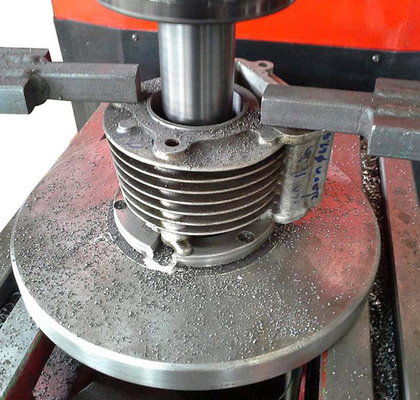

1. The T716A is mainly used for fine boring holes of cylinder and sleeve for various engines and other sccurate holes.
2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling, reaming.
Specification:
| Specification | Unit | T716A | T7220B | T7220C |
| Max. boring diameter | mm | Φ160 | Φ200 | Φ200 |
| Max. boring depth | mm | 410 | 500 | 500 |
| Milling cutter head diamenter | mm | - | - | 250 |
| Max. milling area (L×W) | mm | - | - | 850×250 |
| Spindle speed range | r/min | 190-600 | 53-840 | 53-840 |
| Spindle feed range | mm/r | 0.05-0.20 | 0.05-0.20 | 0.05-0.20 |
| Spindle travel | mm | 550 | 710 | 710 |
| Distance from spindle axis to carriage vertical plane | mm | 310 | 315 | 315 |
| Table longitudinal travel | mm | 700 | 900 | 1100 |
| Table longitudinal feed speed | mm/min | - | - | 54,108 |
| Table longitudinal quick move speed | mm/min | - | - | 1500 |
| Table cross travel | mm |
| 100 | 100 |
| Boring dimension accuracy |
| IT7 | IT7 | IT7 |
| Milling dimension accuracy |
| - | - | IT8 |
| Roundness |
| 0.005 | 0.005 | 0.005 |
| Cylindricity |
| 0.02/300 | 0.01/300 | 0.01/300 |
| Boring surface roughness |
| Ra1.6 | Ra1.6 | Ra1.6 |
| Milling surface roughness |
| - | - | Ra1.6-3.2 |
| Overall dimensions (L×W×H) | mm | 1845x1712x2225 | 2210x1600x2340 | 2610x1600×2350 |
| Packing dimensions (L×W×H) | mm | 1460x1890x2190 | 1850x1840x2230 | 1850x1840×2230 |
| N.W./G.W. | kg | 2800/3000 | 3300/3800 | 3600/4000 |
