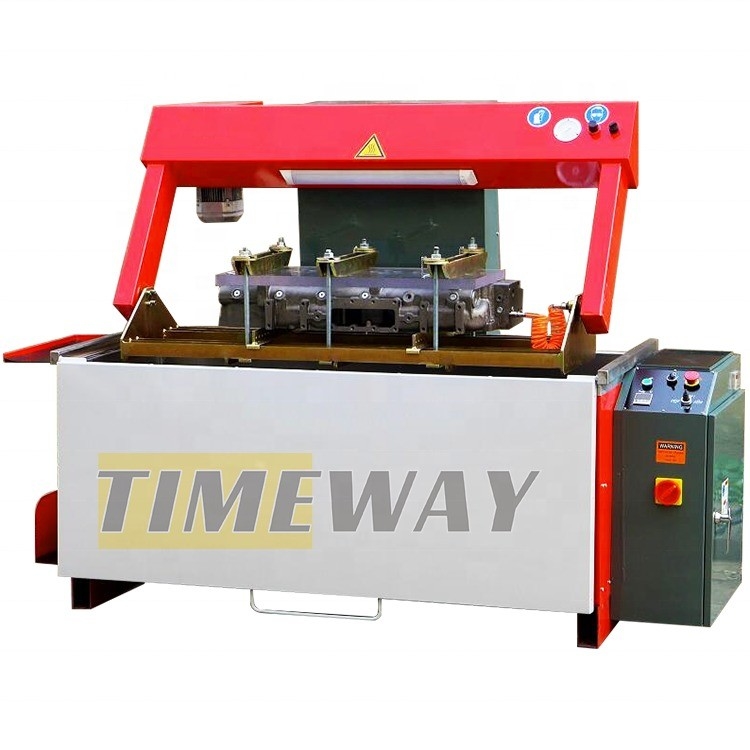

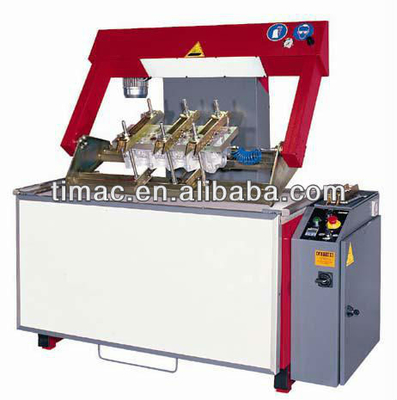

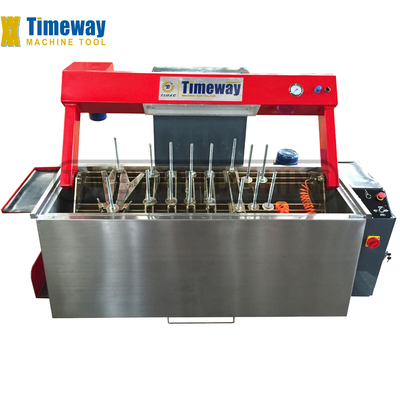

600KG TPT1600 Cylinder Head and Block Pressure Tester Advanced Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,060.00/sets 1-2 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Weight (KG): | 600 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Russia, Morocco, UAE, Romania | Brand: | TIAMC |
| Weight: | 600 Kg | Product Name: | Block Pressure Tester |
| Style: | Fashion | Machine Type: | Cylinder Head Pressure Test |
| Name: | Cylinder Head Pressure Testing Machine | Type: | Pressure Test Machine |
| Key Selling Print: | Competitive Price | Color: | Customer Choose |
| Key Word: | Cylinder Head Pressure Tester Machine | Port: | China Port |
Product Description
Product Description
Pressure Tester
The TPT1600 test bench is designed to test the pressure of cylinder head and cylinder block coolant circuits.
Feature：
* Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
* Quick and easy clamping system allowing tests at a pressure of the 4 to 5 bar.
* 360° electric powered roll-over fixture. 360°
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control. Low voltage:24 V operating control.
* Electronic adjustable thermostat.
* Heating programmer daily or weekly.
* Quick and easy clamping system allowing tests at a pressure of the 4 to 5 bar.
* 360° electric powered roll-over fixture. 360°
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control. Low voltage:24 V operating control.
* Electronic adjustable thermostat.
* Heating programmer daily or weekly.
Specification
Model | Unit | TPT1600 | TPT1600L | TPT1700XL |
Length | mm/inch | 1250/49 | 1350/53.15 | 1350/53.15 |
Width | mm/inch | 400/15.74 | 425/16.73 | 460/18.11 |
Height | mm/inch | 300/11.81 | 300/11.81 | 410/16.14 |
Height elements | kw | 2×4.5 | 2×4.5 | 2×4.5 |
Hydraulic hoist | kw | 0.75 | 0.75 | 0.75 |
Gear-motor | kw | 0.25 | 0.25 | 0.25 |
Rotationalspeed | Tr/min | 4 | 4 | 4 |
Up and down travel time | mm/inch in 10 sec | 600/23.62 | 600/23.62 | 620/24.41 |
Thermostat | ºC | 0-90 | 0-90 | 0-90 |
Power supply | 3×220V-AC-60Hz / 3×380V-AC-50Hz | 3×220V-AC-60Hz / 3×380V-AC-50Hz | 3×220V-AC-60Hz / 3×380V-AC-50Hz | |
Net weight | kg/1bs | 600/1324 | 600/1324 | 650/1434 |
Length | mm/inch | 2000/78.75 | 2100/82.68 | 2100/82.68 |
Width | mm/inch | 1050/41.34 | 1050/41.34 | 1140/44.88 |
Height | mm/inch | 1700/66.93 | 1700/67.00 | 1775/69.83 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
