Customized T8210D Con-Rod Boring Machine with 16-100mm Boring Dia. and 0.8 T Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,340.00/sets 1-4 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 100 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 425 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Positioning Accuracy (X Axis) Mm: | 0 |
| Positioning Accuracy (Y Axis) Mm: | 0 | Positioning Accuracy (Z Axis) Mm: | 0 |
| No. Of Spindles: | Single | Range Of Spindle Speed(r.p.m): | 1180 R.p.m |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Weight (T): | 0.8 T |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Canada, Turkey, United States, Russia, Chile, Romania, Malaysia, Australia |
| Product Name: | Cylinder Body Bushing Boring Machine | Style: | Fashion |
| Brand: | TIMAC | Cross Adjusting Stroke Of Fixture: | 80 Mm |
| Table Size: | Other | X-axis Travel: | 100mm |
| Y-axis Travel: | 425mm | Z-axis Travel: | 0mm |
| Color: | Custmized | Key Selling Point: | High-accuracy |
| Port: | China Port | ||
Product Description
Product Description

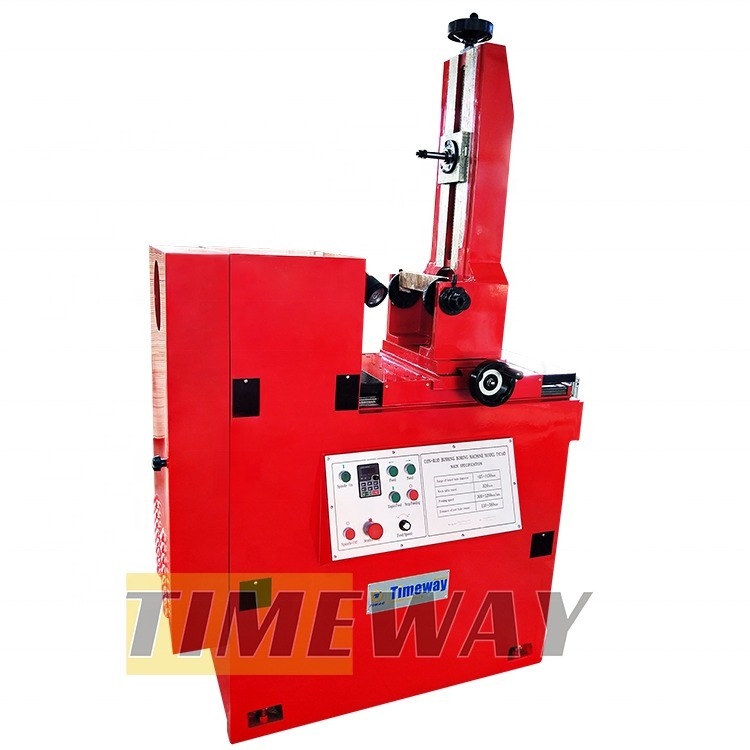

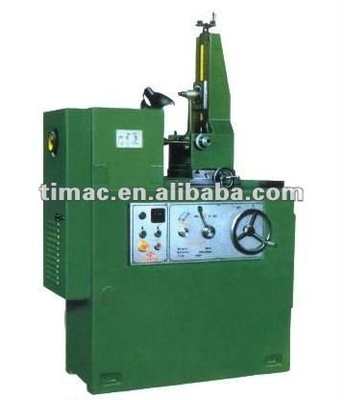

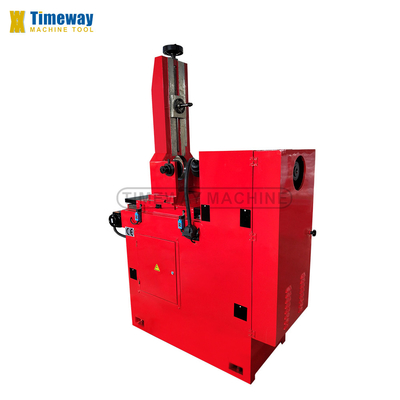

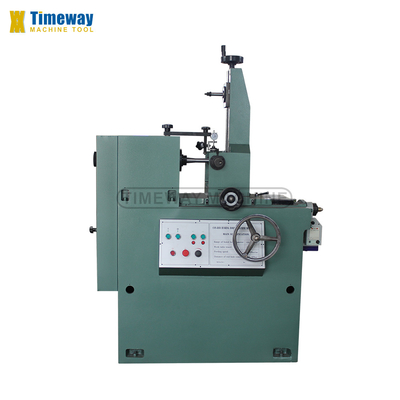

Con-Rod Boring Machine
The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
Feature：
1. Con-rod boring machine has good performance, better structure, easy operation and high accuracy and can meet customer’s demand.
2. In case of necessity, rod bushing seat hole can be fine-bored.
3. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
4. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.
2. In case of necessity, rod bushing seat hole can be fine-bored.
3. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
4. Besides, it has the accessories for centering sectifying tools, boring tools and micro-adjustment tools holder etc.
Specification
Specification | T8210D | T8216 |
Diameter range of boring hole | 16-100 mm | 15-150 mm |
Centre distance of link two hole | 100-425 mm | 85-600 mm |
Longitudinal travel of worktable | 220 mm | 320 m |
Spindle speed | 350, 530, 780, 1180 rpm | 140, 215, 355, 550, 785, 1200 rpm |
Transverse adjusting amount of fixture | 80 mm | 80 mm |
Feeding speed of worktable | 16-250 mm/min | 16-250 mm/min |
Traveling speed of working | 1800 mm/min | 1800 mm/min |
Diameter of boring bar (4 class) | 14, 16, 24, 40 mm | 14, 29, 38, 59 mm |
Main motor power | 0.65/0.85 Kw | 0.85/1.1 Kw |
Motor power of oil pump | 0.55 Kw | 0.55 Kw |
Overall dimensions(L×W×H) | 1150×570×1710 mm | 1300×860×1760 mm |
Packing dimensions(L×W×H) | 1700×950×1450 mm | 1850×1100×1700 mm |
N.W/G.W | 700/900 kg | 900/1100 kg |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
