39-70mm Boring Dia. T-807 Cylinder Boring Bar with 2 Axes and 0 mm Table Travel Z
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 3-4 sets |
| Packaging Details: | Wooden cases (can be fumigated) |
| Supply Ability: | 85 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 0 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 160 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 486 R.p.m |
| Spindle Motor Power(kW): | 0.25 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380 | Dimension(L*W*H): | 330x400x1080 Mm |
| Weight (T): | 0.09 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Italy, Peru, Pakistan, Russia, UAE, Romania, Bangladesh, South Africa | Product Name: | Cylinder Boring Machine |
| Brand: | TIMAC | Machine Weight: | 81kgs |
| After-sales Service Provided: | Video Technical Support | After Warranty Service: | Online Support |
| Local Service Location: | Kyrgyzstan | Port: | FOB China |
Product Description

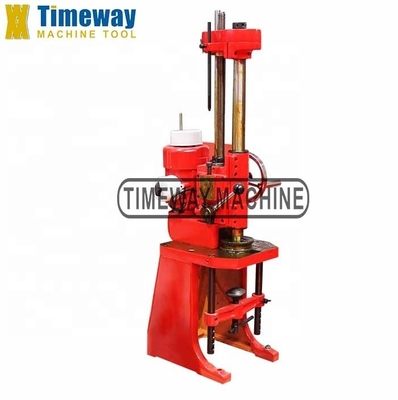

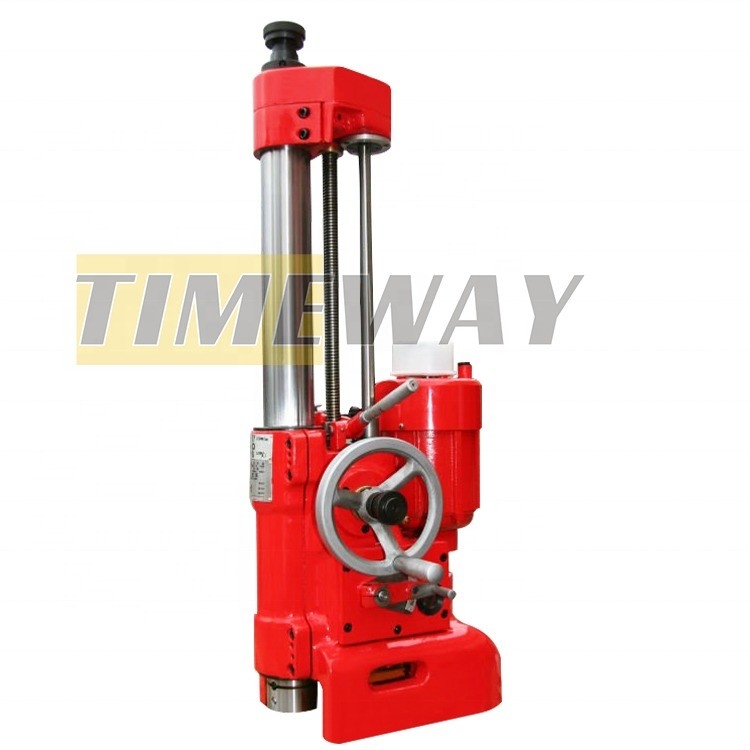

Cylinder Boring Machine Model T-807
Feature:
Cylinder Boring Bar
1) The machine is mainly used for reboring engine cylinders of automobiles motor cycles and tractors.
2) Reliable performance, widely use, processing accuracy high productivity.
3) Easy and flexible operation.
Parameter:
| Model | T806 | T807 | T806A | T808A | T8014A | T8016A | |
| Boring diameter | Φ39-Φ60 mm | Φ39-Φ70 mm | Φ46-Φ80 mm | Φ50-Φ85 mm | Φ65-Φ140 mm | Φ80-Φ165 mm | |
| Max. boring depth | 160 mm | 160 mm | 160 mm | 170 mm | 300 mm | 400 mm | |
| Spindle speed | 486 r/min | 486 r/min | 486 r/min | 394 r/min | 250;380 r/min | 200;300 r/min | |
| Spindle feed | 0.09 mm / r | 0.09 mm / r | 0.09 mm / r | 0.10 mm / r | 0.11 mm / r | 0.12 mm / r | |
| Spindle rapid reset | 636 mm / min | 780 mm / min | |||||
| Motor | Voltage | 220/380 V | 220/380 V | 220/380 V | 220/380 V | 220/380 V | 220/380 V |
| Power | 0.25 Kw | 0.25 Kw | 0.25 Kw | 0.25 Kw | 0.25/0.37 Kw | 0.25/0.37 Kw | |
| Speed | 1440 r/min | 1440 r/min | 1440 r/min | 1440 r/min | 1440 r/min | 1440 r/min | |
| Overall dimensions | 330×400×1080 mm | 330×400×1080 mm | 330×400×1080 mm | 350×272×725 mm | 320×330×850 mm | 360×345×1100 mm | |
| Packing dimensions | 490×520×1290 mm | 490×520×1290 mm | 490×520×1290 mm | 460×440×870 mm | 540×470×1030 mm | 500×490×1270 mm | |
| Weight | 80 Kg | 80 Kg | 80 Kg | 48 Kg | 62 Kg | 85 Kg | |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
