1300mm Processing Length Cylinder Block Grinding Milling Machine with Competitive
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE Certification |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Cylinder Block Grinding & Milling Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | 220/380V | Dimension(L*W*H): | 2800x1050x1700 Mm |
| Weight (KG): | 2800 | Power (kW): | 2.4 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Japan, South Korea, Canada, Kazakhstan, Italy, Philippines | Applicable Industries: | Farms, Manufacturing Plant, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump | Max. Grinding Length: | 1500mm |
| Max. Grinding Diameter: | 250mm | Product Name: | Cylinder Head And Block Surface Grinding Machine |
| Name: | Motorcycle Cylinder Block | Color: | Customized Optional |
| Brand: | TIMEWAY | Machine Type: | Manual |
| Keywords: | Cylinder Block Machine | Key Words: | Cylinder Block Grinding Machine |
| Port: | Any China Port | ||
Product Description
Product Description

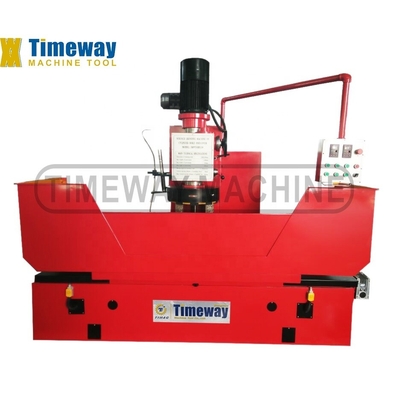

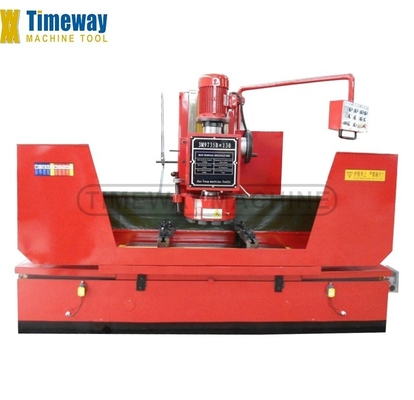

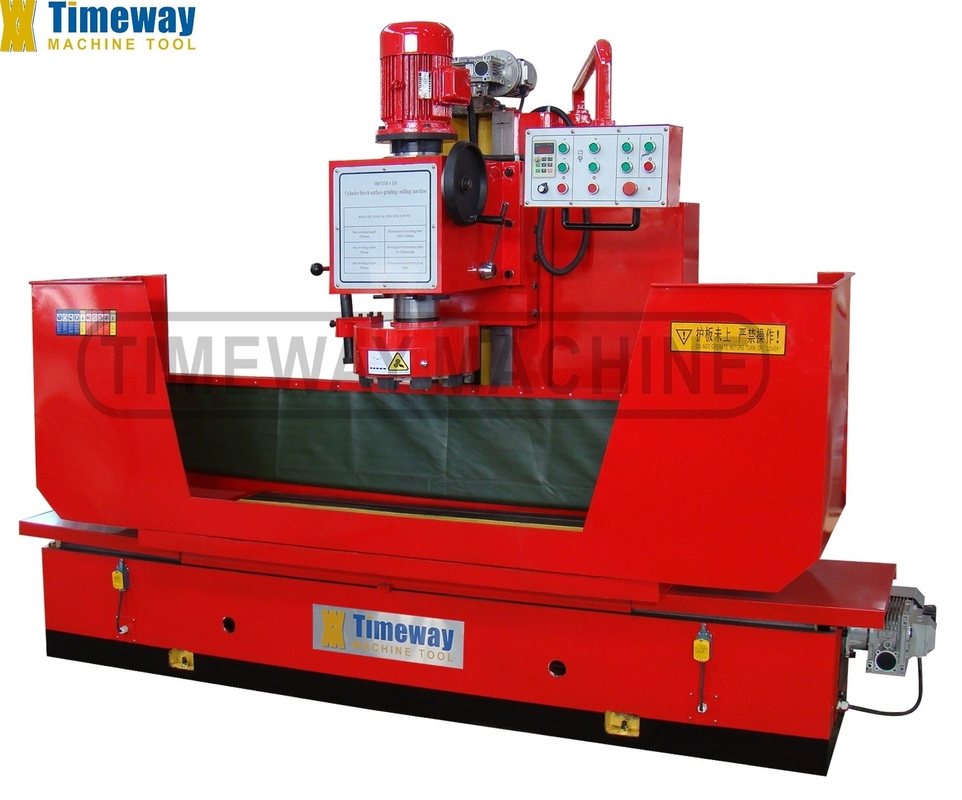

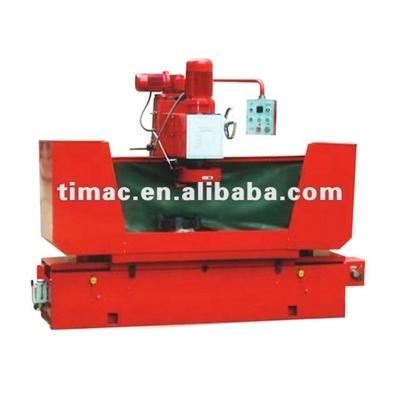

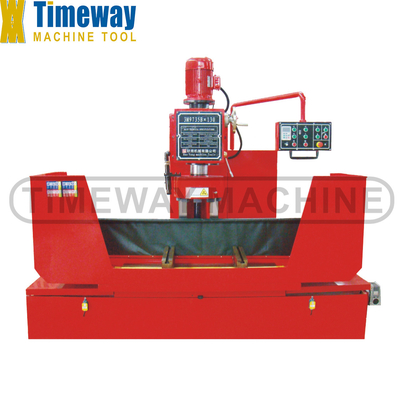

1300mm Processing Length / Cylinder Block Grinding & Milling Machine / 3M9735B
Features:
1. This machine is Surface Grinding and Milling Machine for small and medium, large-size cylinder heads and blocks. This machine is accurate and wide use. It makes possible to solve mostly grinding jobs, and it is optimal and economic choice.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
Specification
Specification | 3M9735Bx130 | 3M9735Bx150 |
Working table size | 1300x500mm | 1500x500mm |
Max working length | 1300mm | 1500mm |
Max. width of grinding | 350mm | 350mm |
Max height of grinding | 800mm | 800mm |
The vertical moving distance of grinding head | 60mm | 60mm |
The vertical moving distance of spindle box | 800mm | 800mm |
Spindle speed | 1400/700r/min | 1400/700r/min |
Transverse moving speed of working table | 40-900mm/min | 40-900mm/min |
N.W. / G.W. | 2800/3100kg | 3000/3300kg |
***Standard accessories:
Parallel support, Grinding disk, Grinding wheel dresser, Cooling box, Grinding tiles & milling cutters, Wheel balance stand arbor.
***Optional accessories:
Diamon dresser, Digital readout, Universal support.
