T8440 Brake Drum Disc Cutting Machine with Gross weight 230 kg and Motor power 0.75 kw
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets 3-4 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Years | Product Name: | T8440 Brake Drum & Disc Cutting Machine |
|---|---|---|---|
| Motor Power: | 0.75 Kw | Toolpost Travel: | 100 Mm |
| Disc Dia. Capacity: | ≤400 Mm | Gross Weight: | 230 Kg |
| Net Weight: | 195 Kg | Port: | CHINA PORT |
Product Description

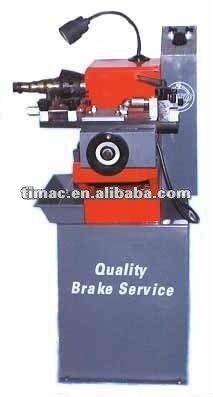

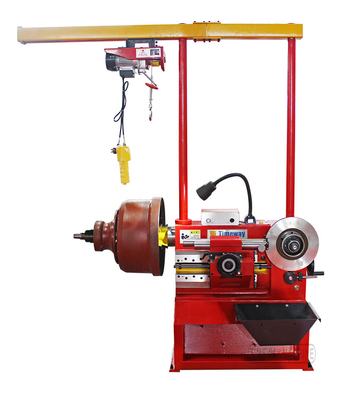

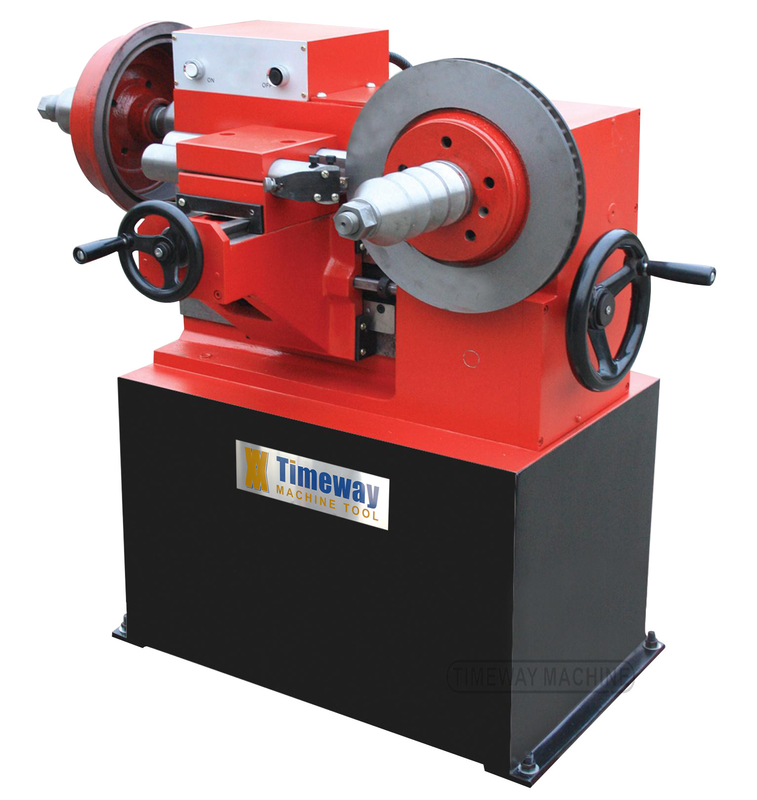

T8440 Brake Drum & Disc Cutting Machine
Features:
* T8440 Brake Drum & Disc Cutting Machine is a multi-function machine to bore and repair brake drums & brake discs. This machine is equipped with all kinds of types and specification’s clamps, in order to fix brake components for the implementation of boring & repair.
* T8440 Brake Drum & Disc Cutting Machine is adapted to bore & repair a lots of car brake drums and discs.
* T8440 Brake Drum & Disc Cutting Machine's design & manufacture conform to the requirement of our national < Brake drum cutting machine GB12064>. This machine is suitable for use when repairing vehicles' brake components.
* T8440 Brake Drum & Disc Cutting Machine had lots of models, and different specifications, so users could choose the right ones according to the requirements.
Main specification:
| Specification | Unit | T8440 |
| Drum dia. Capacity | mm | 200-400 |
| Disc dia. Capacity | mm | ≤400 |
| Spindle speed three steps | rpm | 60, 90,120 |
| Tool post travel | mm | 100 |
| Feed rate | mm/min | 7.6-26 |
| Motor | kw/rpm | 0.75/1400 |
| Dimension: not incluble crane and outboard supporter | ||
| Overall dimensions | mm | 770x650x1130 |
| Net weight | kg | 195 |
| Gross weight | kg | 230 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
