500mm Travel Vertical Boring Milling Machine for Precise Drilling
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $27,500.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 500x1250 | Table Travel (X) (mm): | 1500 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 200 Mm | Table Travel (Z) (mm): | 350 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 500 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Range Of Spindle Speed(r.p.m): | 120 R.p.m |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Voltage: | 220v/380v |
| Weight (T): | 3.8 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Mexico, Russia, Spain, Thailand, Chile, Algeria, Romania | Product Name: | Vertical Boring Milling Machine |
| Style: | Fashion | Max. Drilling & Reaming Diameter: | 30mm |
| Port: | CHINA PORT | ||
Product Description

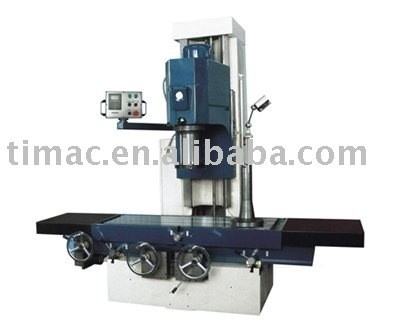

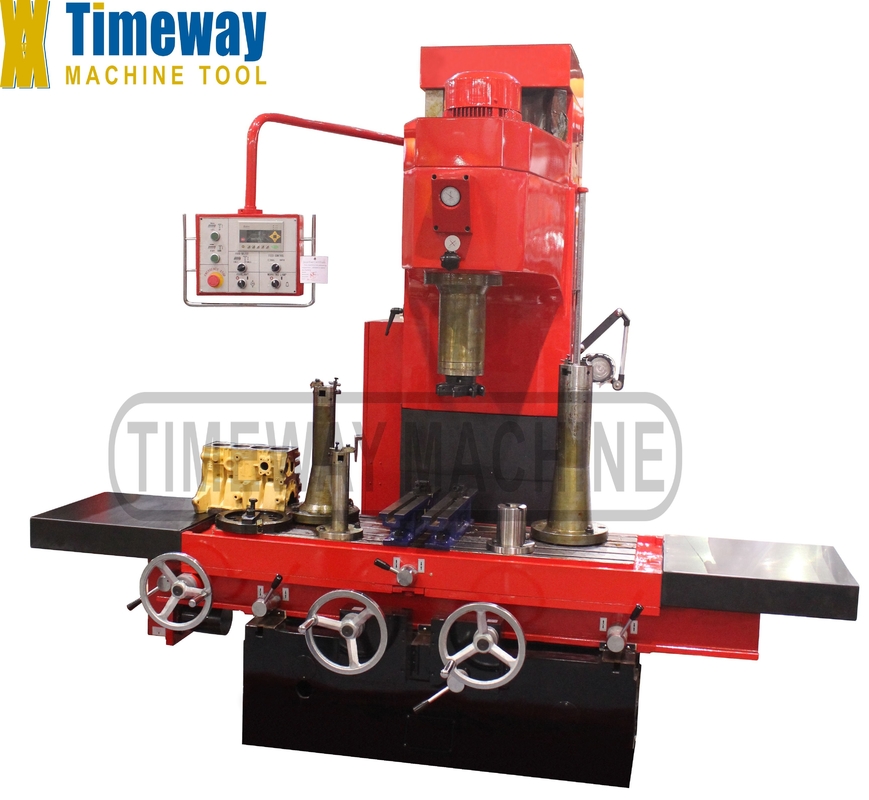

Vertical Boring Milling Machine
This serial model of Vertical Boring Milling Machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring, surface milling of other workpieces.
| Model | TX170A | TX200A | TX250A | |
| Max. boring diameter | Φ170 mm | Φ200 mm | Φ250 mm | |
| Max. boring depth | 400 mm | 500 mm | 500 mm | |
| Max. milling area | 400x1000 mm | |||
| Max. drilling & reaming diameter | Φ30 mm | |||
| Spindle speed | 120-860 r/min | |||
| Feeding of the spindle | 14-900 mm/min | |||
| Rapid moving speed of the spindle | 1000 mm/min | |||
| Spindle travel | 700 mm | |||
| Distance between spindle end face and table | 0-700 mm | |||
| Distance between spindle axis and carriage vertical plane | 375 mm | |||
| Feed of work table longitudinal | 32-1350 mm/min | |||
| Rapid moving speed of the table longitudinal travel | 32-1350 mm/min | |||
| Max longitudinal travel of working table | 1500 mm | |||
| Max cross travel of the working table | 200 mm | |||
| Working table size (W×L) | 500×1250 mm | 500×1500 mm | ||
| Main motor | 5.5 Kw | |||
| Processing roughness | Boring | Ra 2.5 | ||
| Milling | Ra 3.2 | |||
| Overall dimensions (L×W×H) | 2600×1630×2300 mm | |||
| Packing dimensions (L×W×H) | 2250×1900×2280 mm | |||
| N.W./G.W. | 3300/3600 kg | 3500/3800 kg | ||
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
