High Productivity Vertical Boring Milling Grinding Machine at 1200 r.p.m Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,800.00/sets 1-2 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1500x500 | Table Travel (X) (mm): | 200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 1350 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1200 R.p.m |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | 1200 |
| Voltage: | 220/380V | Dimension(L*W*H): | 2600x1630x2300mm |
| Weight (T): | 3.5 T | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, Pakistan, India, Mexico, Russia, Spain, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Product Name: | Vertical Boring Milling Grinding Machine | Power(W): | 5.5kw |
| Weight: | 3300kg | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Egypt, Canada, Turkey, United Kingdom, Pakistan, India, Mexico, Russia, Spain, Colombia, Algeria, Sri Lanka, Romania, Bangladesh |
| Port: | CHINA PORT | ||
Product Description

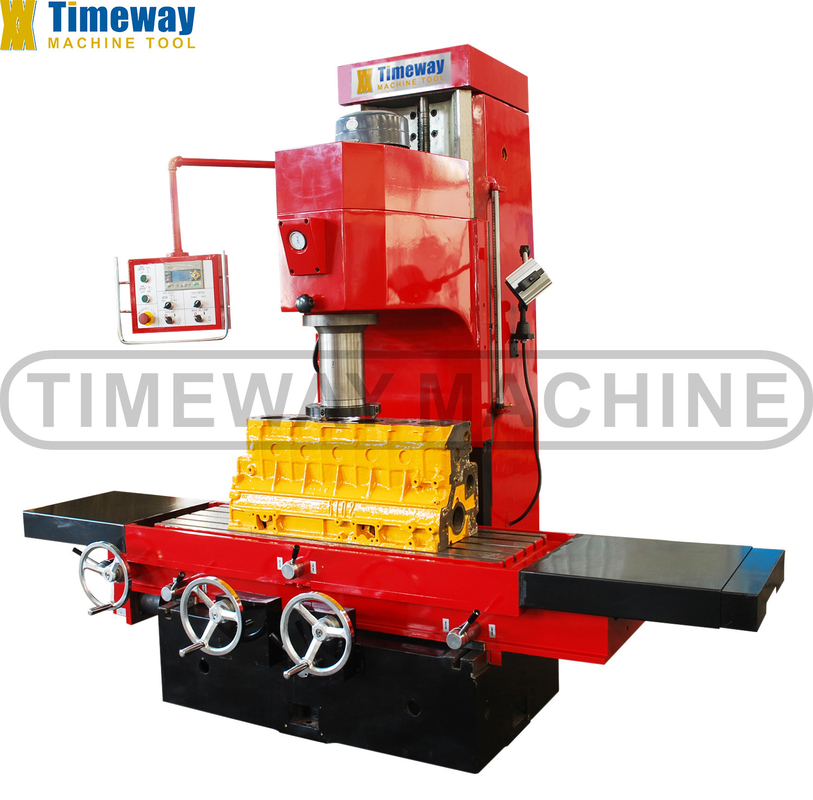

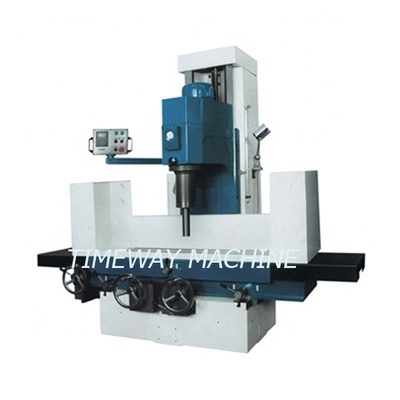

Vertical Boring Milling Grinding Machine

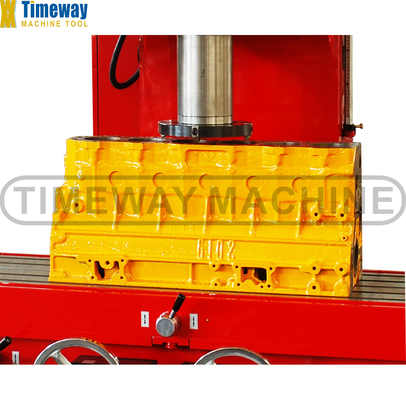

This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, surface milling grinding of other workpieces.
| Model | BMG170A | BMG200A | BMG250A | |
| Max. boring diameter | Φ170 mm | Φ200 mm | Φ250 mm | |
| Max. boring depth | 400 mm | 500 mm | 500 mm | |
| Max. grinding area | 400×1000 mm | |||
| Max. milling area | 400×1000 mm | |||
| Max. drilling & reaming diameter | Φ30 mm | |||
| Spindle speed | 120-1200 r/min | |||
| Feeding of the spindle | 14-900 mm/min | |||
| Rapid moving speed of the spindle | 1000 mm/min | |||
| Spindle travel | 700 mm | |||
| Distance between spindle end face and table | 0-700 mm | |||
| Distance between spindle axis and carriage vertical plane | 375 mm | |||
| Feed of work table longitudinal | 32-1350 mm/min | |||
| Rapid moving speed of the table longitudinal travel | 32-1350 mm/min | |||
| Max. longitudinal travel of working table | 1500 mm | |||
| Max. cross travel of the working table | 200 mm | |||
| Working table size (W×L) | 500×1250 mm | 500×1500 mm | ||
| Main motor | 5.5 Kw | |||
| Processing roughness | Boring | Ra 2.5 | ||
| Milling | Ra 3.2 | |||
| Grinding | Ra 0.8 | |||
| Overall dimensions (L×W×H) | 2600×1630×2300mm | |||
| Packing dimensions (L×W×H) | 2250×1900×2280mm | |||
| N.W./G.W. | 3300/3600 kg | 3500/3800 kg | ||
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
