Flywheel Grinding Machine FG-500 The Perfect Combination of Style and Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets >=1 sets |
| Packaging Details: | WOODEN CASE/PLYWOOD CASE |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220/380 |
| Dimension(L*W*H): | 1200x800x1750 | Weight (KG): | 700 |
| Power (kW): | 5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, Russia, Malaysia, Peru, Germany |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Product Name: | Flywheel Disk Grinding Machine | Brand: | TIMAC |
| OEM: | Acceptaple | Style: | Fashion |
| Name: | FG-500 Flywheel Disk Grinding Machine | Keywords: | Flywheel Grinder |
| Color: | Customized Optional | Machine Type: | Flywheel Grinding |
| Key Selling Point: | Competitive Price | Key Words: | Flywheel Grinders |
| Port: | CHINA PORT | ||
Product Description
Product Description

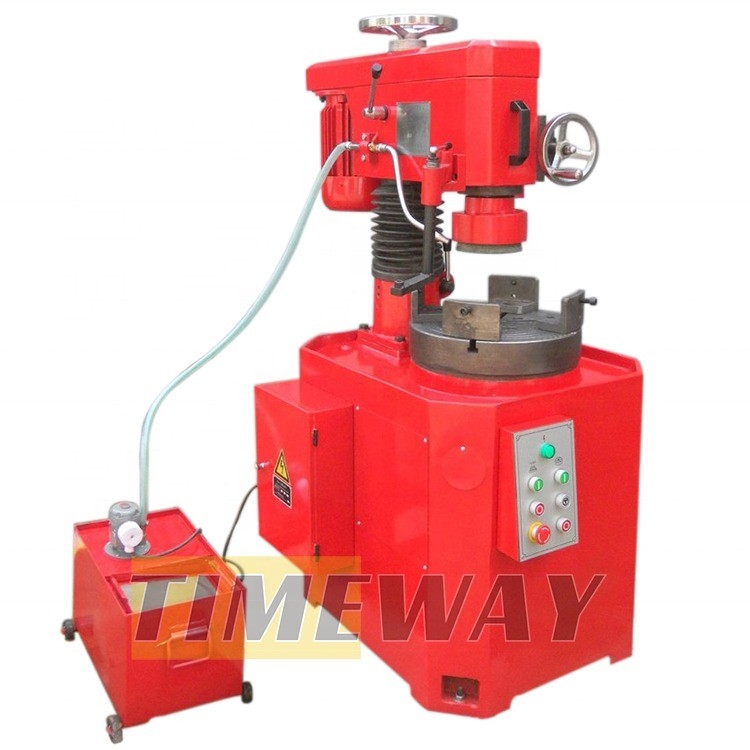

Flywheel Grinding Machine
This flywheel disk grinding machine is suitable for grinding the arc surface of brake band of automobiles & tractors. It is specially designed for flywheel and clutch plate grinder of automobile.
Characteristics:
1, Adopt vertical structure to be convenience for mounting & clamping workpiece.
2, Provide turning mechanism, firstly turning and then, milling with high working efficiency.
3, Equipped with special fixtures to carry out repairing parts of other disks.
2, Provide turning mechanism, firstly turning and then, milling with high working efficiency.
3, Equipped with special fixtures to carry out repairing parts of other disks.
Specification
Model | Unit | FG-500 |
Table diameter | mm | 450 |
Max. diameter of workpiece | mm | 500 |
Distance from spindle nose to table | mm | 200 |
Grinding wheel size | mm | 150 |
Grinding head spindle speed | rpm | 2800 |
Table rotation speed | rpm | 36 |
Total power | kw | 5 |
Grinding head motor power | kw | 4 |
Table motor power | kw | 0.75 |
Table motor rotation speed | rpm | 700 |
Cooling pump motor power | kw | 0.12 |
Machine dimensions (LxWxH) | mm | 1200x800x1750 |
Machine weight | kg | 700 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
