Table Travel Z mm 0 mm Con-Rod Boring and Grinding Machine TM8216
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,900.00/sets 3-4 sets |
| Packaging Details: | Wooden cases ( can be fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 100 Mm | Table Travel (Y) (mm): | 425 Mm |
|---|---|---|---|
| Table Travel (Z) (mm): | 0 Mm | Number Of Axes: | 2 |
| Travel (W-axis) (mm): | 0 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Positioning Accuracy (X Axis) Mm: | 0 | Positioning Accuracy (Y Axis) Mm: | 0 |
| Positioning Accuracy (Z Axis) Mm: | 0 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 1180 R.p.m | Spindle Motor Power(kW): | 0.75 |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Voltage: | 220/380V |
| Dimension(L*W*H): | 1700x1300x1800mm | Weight (T): | 1.3 T |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Philippines, Pakistan, India, Kenya, Algeria, Ukraine |
| Product Name: | Con-Rod Boring And Grinding Machine | Style: | Fashion |
| Brand: | TIMAC | Cross Adjusting Stroke Of Fixture: | 80 Mm |
| After-sales Service Provided: | Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | Philippines, Pakistan, India, Japan, Malaysia, Australia, UAE | Port: | China Port |
Product Description

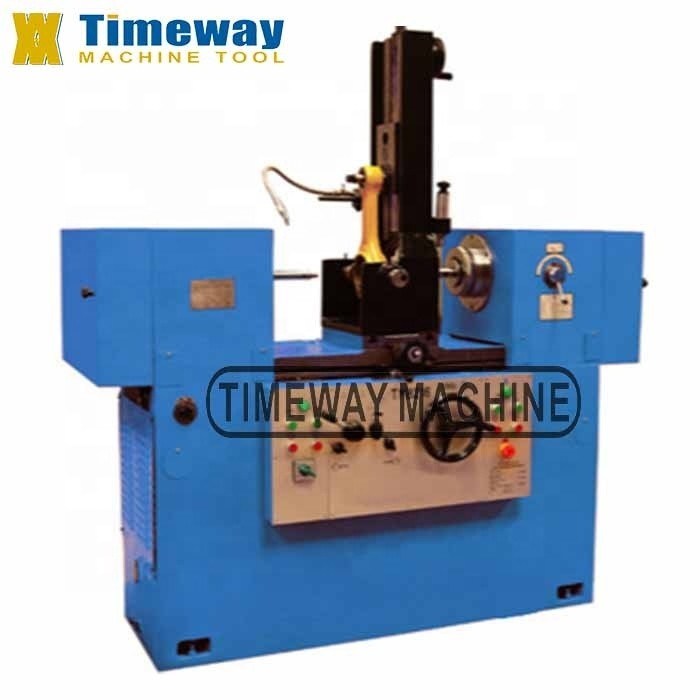

Con-Rod Boring and Grinding Machine TM8216
Features:
1. This machine is mainly applied to bore and grind bearing holes (including copper quill and connecting-rod tile) on connecting-rod of gasoline and diesel engine in automobile, tractor and other power sources.
2. Customer also can carry out fine boring or grinding process to connecting-rod bearing seat of deformed work-piece, after grinding combining surface, to ensure the pluralism of tow center lines.
3. Equipped with various specialized fixture, TM8216 can be used to complete fine boring and grinding process to piston pin hole, gas pump bearing hole and valve seat hole etc.
Parameter:
| Model | Unit | TM8216 |
| Diameter range of boring hole | mm | 40-160 |
| Diameter range of grinding hole | mm | 50-160 |
| Centre distance of link two holes | mm | 250-650 |
| Distance from spindle center to table | mm | 270 |
| Table longitudinal travel | mm | 450 |
| Boring head motor power | kw | 0.55/0.75 |
| Grinding head rotation/revolution motor power | kw | 0.55/0.37 |
| Hydraulic system motor motor | kw | 0.55 |
| Machine dimensions (LxWxH) | mm | 1700x1300x1800 |
| Packing dimensions (LxWxH) | mm | 2250x1000x1950 |
| N.W/G.W | kg | 1300/1500 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
