Vertical Cylinder Boring Milling Grinding Machine for Professional Engine Rebuilding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets >=1 sets |
| Packaging Details: | wooden / plywood case, or pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 1700 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain | After-sales Service: | Engineers Available To Service Machinery Overseas |
| Table Cross Travel: | 530 Mm | Boring Surface Roughness: | Ra2.5 Um |
| Grinding Surface Roughness: | Ra0.8 Um | After-sales Service Provided: | Online Support |
| Port: | China Port | ||
Product Description
Product Description

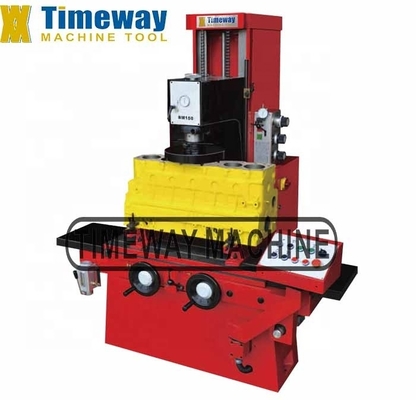

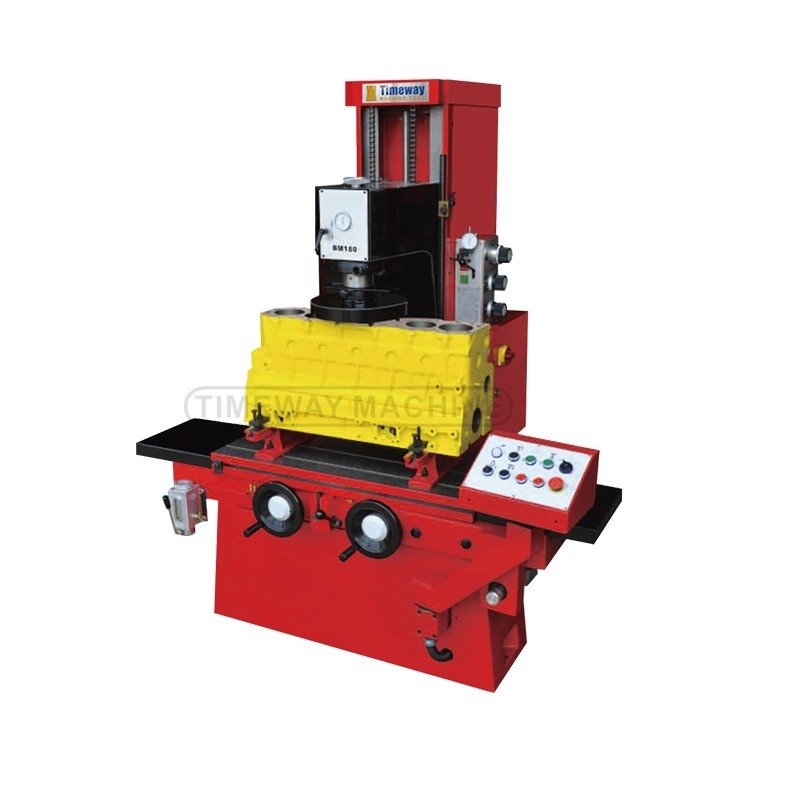

Vertical Boring Milling Grinding Machine
Features:
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors,as well as various high precision holes boring, surface milling grinding of other workpieces.
Specification
Model | Unit | B150 | BM150 |
Boring diameter | mm | 31-150 | 31-150 |
Max. boring depth | mm | 350 | 350 |
Max. milling width | mm | 300 | 300 |
Max. milling area | mm | - | 300x800 |
Spindle travel | mm | 530 | 530 |
Distance from spindle center to column | mm | 335 | 335 |
Table size | mm | 400x1000 | 400x1000 |
Table longitudinal travel | mm | 830 | 830 |
Table cross travel | mm | 60 | 60 |
Spindle speed | rpm | 105, 210, 280, 390, 550, 780 | 105, 210, 280, 390, 550, 780 |
Spindle feed speed per revolution | mm/r | 0.06, 0.12, 0.18 | 0.06, 0.12, 0.18 |
Spindle rapid feed speed | mm/min | 1200 | 1200 |
Table feed speed | mm/min | - | 52-104 |
Main motor power | kw | 1.5/1.2 | 1.5/1.2 |
Spindle lifting motor power | kw | 0.09 | 0.09 |
Table feed motor power | kw | - | 0.19 |
Machine dimensions (LxWxH) | mm | 2570 x 1175 x1920 | 2570 x 1175 x1920 |
Packing dimensions (LxWxH) | mm | 1710 x 1450 x2200 | 1710 x 1450 x2200 |
N.W/G.W | kg | 1700/1950 | 1700/1950 |

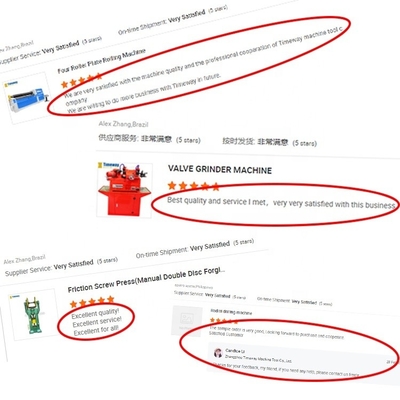

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

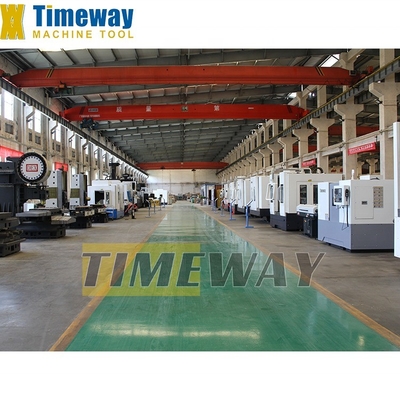

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
