1350kg Machine Weight Vertical Air-floating Fine Boring Machine FT7 for and Boring
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,880.00/sets 1-2 sets |
| Packaging Details: | Plywood case |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 180 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 380 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 320 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 1.1 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Production Capacity: | High | Voltage: | 220V/380V |
| Dimension(L*W*H): | 1400x930x2095mm | Weight (T): | 1.3 T |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining | Showroom Location: | Kenya, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan |
| Product Name: | Vertical Fine Boring Machine | Boring Dia.: | 39-180 Mm |
| Style: | Fashion | Max. Boring Depth: | 380 Mm |
| Spindle Feed: | 0.09 Mm/r | Machine Weight: | 1350 Kg |
| After-sales Service Provided: | Online Support | After Warranty Service: | Video Technical Support |
| Local Service Location: | United States | Port: | China Port |
Product Description
Product Description

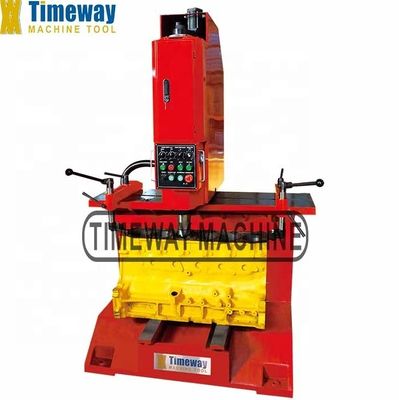

Fine Boring Machine
* To introduce: This machine is mainly used for boring engine's cylinder of automobile and tractor to retreat it. It is also applicable for boring cylinder of V engine, and other mechanical part's holes such as cylinder sleeve of single cylinder, if some suitable fixtures are equipped.
Feature

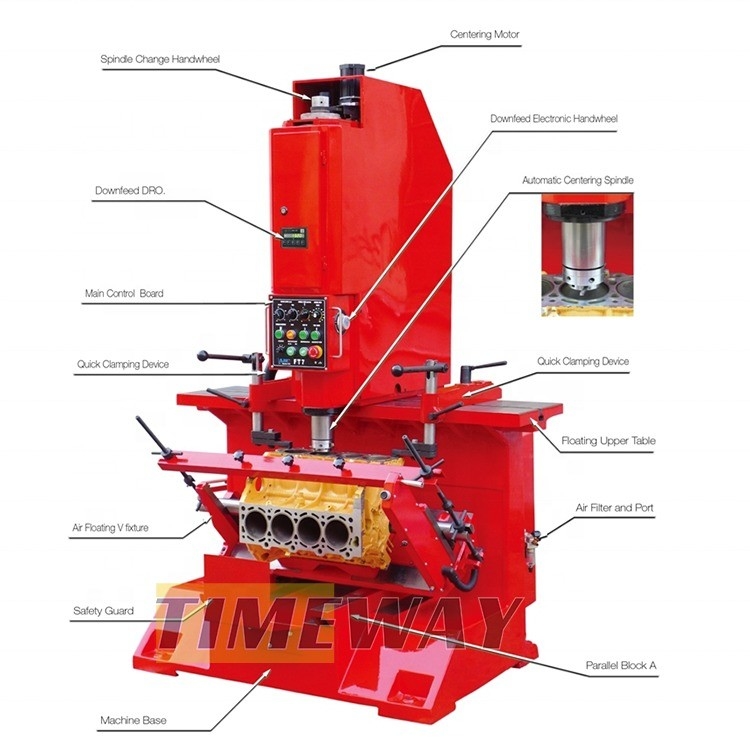

* Mainly used for repairing automobile and tractor cylinders. * The spindle of FT7 can be moved freely above the floating table, quickly move to the top of the cylinder you will work with. * 4-point automatic centering system, make your work fast and precision. * Various of the tool holder fit this machine work from 39-180mm. * Together with the air floating V- Fixture make this machine available to work with 60° and 45° V-type cylinder.
Specification
Model | Unit | FT7 |
Boring diameter | mm | 39-180 |
Max. boring depth | mm | 380 |
Spindle speed | rpm | 50-1000 (stepless) |
Spindle feed speed | mm/min | 15-60 (stepless) |
Spindle rapid feed speed | mm/min | 100-960 (stepless) |
Main motor power | kw | 1.1 |
Feed motor power | kw | 0.4 |
Positioning motor power | kw | 0.15 |
Working pressure | Mpa | 0.6≤P≤1 |
Machine dimensions (LxWxH) | mm | 1400x930x2095 |
Machine weight | kg | 1350 |
Centering range of centering rack | mm | 39-54, 53-82, 81-155, 130-200 |
Spindle 38mm | mm | 39-53 (optional) |
Spindle 52mm | mm | 53-82 |
Spindle 80mm | mm | 81-155 |
Spindle 120mm | mm | 121-180 (optional) |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
