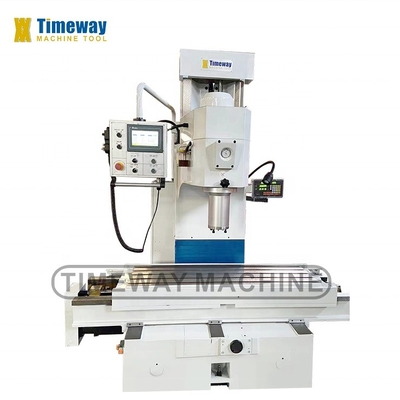

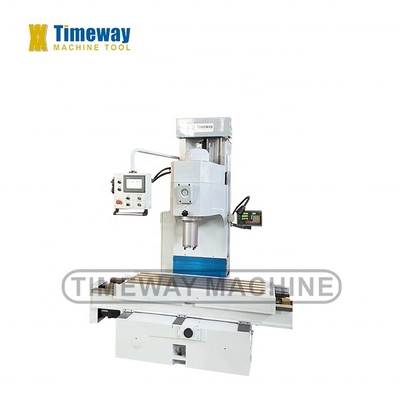

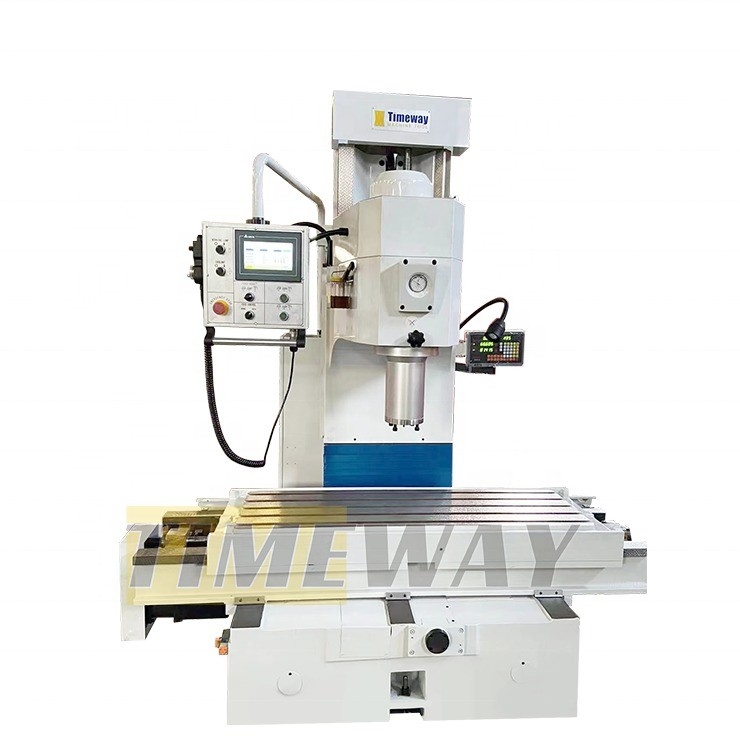

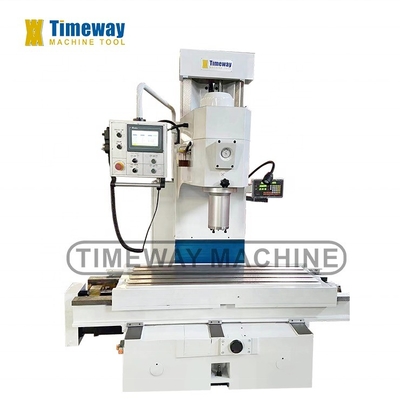

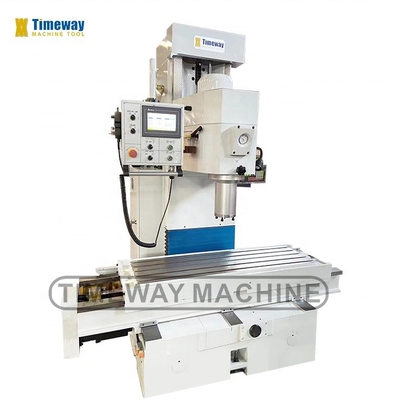

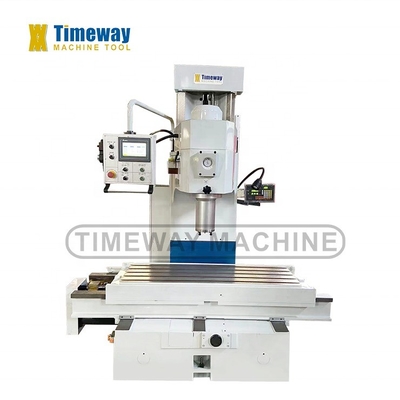

Manufacturing Plant 2022 Vertical Fine Cylinder Boring Machine with 200 mm Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets >=2 sets |
| Packaging Details: | in pallet |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 500x1500 | Table Travel (X) (mm): | 1500 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 200 Mm | Table Travel (Z) (mm): | 590 Mm |
| Number Of Axes: | 3 | Travel (W-axis) (mm): | 200 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Gear | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 120 R.p.m | Spindle Motor Power(kW): | 3 |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | 50Sets/month |
| Voltage: | 380v/220v | Dimension(L*W*H): | 225x190x227 |
| Weight (T): | 3500 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Turkey, United Kingdom, Germany, Viet Nam, Philippines, Spain, Kenya, Chile, UAE | Table Size: | 500x1500mm |
| X-axis Travel: | 1500mm | Y-axis Travel: | 200mm |
| Z-axis Travel: | 590mm | Spindle Feed Speed: | 14-900mm/min |
| Spindle Rapid Feed Speed: | 1000mm/min | Spindle Travel: | 700mm |
| Table Longitudinal Travel: | 1500mm | Table Cross Travel: | 200mm |
| Main Motor Power: | 3kw | Port: | China Port |
Product Description
Products Description
Features:
Stepless of spindle turning ,feeding.Rotating speed and feed of spindle is free-setup, automatical retuming of spindle can be realized.
Longitudingal and cross movement of table.
Complete set of accessories of boring, drilling & reaming and easy exchange.
Spindle fast centering device.
Spindle fast centering device.
Tool mwasuring device.
Boring depth control device.
Table with digital readout for boring machine.
Model | Units | B200A |
Max. boring diameter | mm | 200 |
Max. boring depth | mm | 500 |
Max. drilling & reaming diameter | mm | 30 |
Spindle speed | rpm | 120-860 |
Spindle feed speed | mm/min | 14-900 |
Spindle rapid feed speed | mm/mim | 1000 |
Spindle travel | mm | 700 |
Distance from spindle nose to table | mm | 0-700 |
Distance from spindle center to column | mm | 350 |
Table longitudinal travel | mm | 1500 |
Table cross travel | mm | 200 |
Table size | mm | 500x1500 |
Number of T-slots | pcs | 5 |
Dimensional precision of boring hole | - | H7 |
Boring surface roughness | um | Ra2.5 |
Main motor power | kw | 3 |
Machine dimensions (LxWxH) | cm | 260x163x230 |
Packing dimensions (LxWxH) | cm | 225x190x227 |
N.W/G.W | kg | 3500/3800 |
Φ150 Boring spindle | Universal spindle stand |
Φ75 Boring spindle | |
Φ55 Boring bar | |
Φ40 Boring bar | |
Φ20 Boring bar | |
Tool measuring device | |
Drilling & reaming chuck | |
Inner micrometer | |
Universal fixture for cylinder and head | |
Fast fixture for cylinder and head | |
Fixture for V-engine | |
Special tool measuring device |
