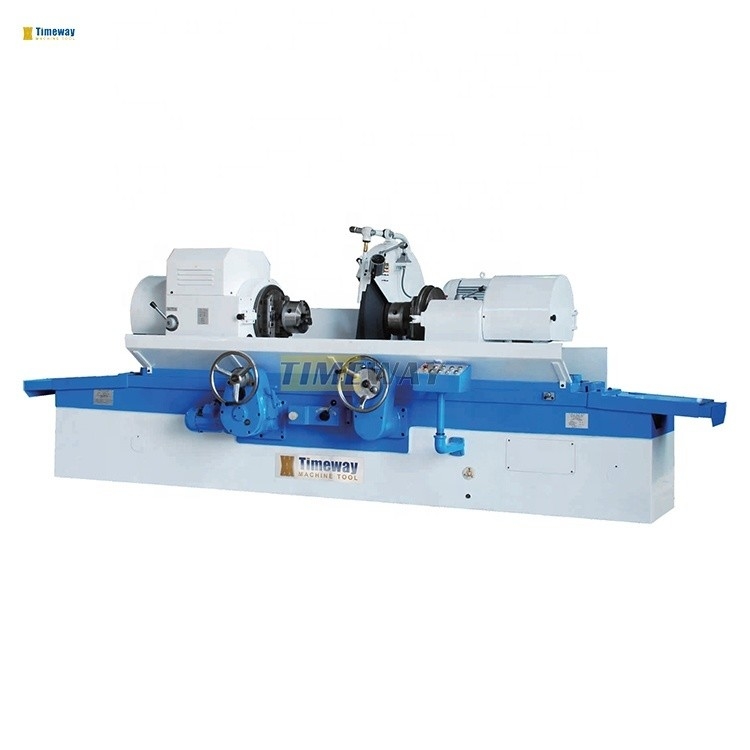

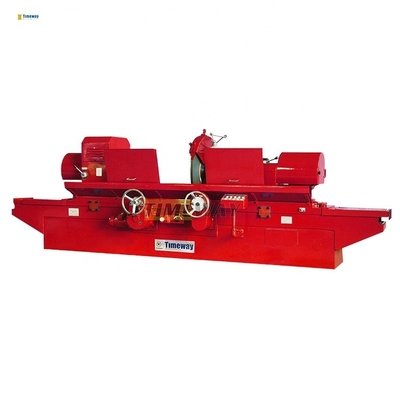

900x32x305 Wheel Size QM-600A Crankshaft Grinding Machine Perfect for Client's Request
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 900x32x305 |
| Year: | 2022 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 4166x2037x1584mm | Weight (KG): | 6000 |
| Power (kW): | 9.82 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, UAE, South Korea, Egypt, Russia, Malaysia, Canada, Turkey, United States, Peru, Chile, Pakistan, Uzbekistan, Ukraine, Brazil, Indonesia |
| Applicable Industries: | Construction Works , Retail | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Max. Swing Dia. Over Table: | 580mm | Throw Of Crankshaft: | 110mm |
| Max. Work Length Gound: Between Centers: | 1600mm | Max. Loading Capacity: | 120kg |
| Center Height: | 300mm | Work Speed: | 25,45,95rpm |
| Wheel Spindle Speed: | 740,890rpm | Grinding Wheel Size: | 900x32x305mm |
| Total Motor Power: | 9.82kw | COLOR: | Client's Request |
| Port: | China Port | ||
Product Description
Products Description
- The crankshaft grinding machine is used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crankpins of crankshaft, also used in large engineering machinery and diesel engines for ships to grind crankshaft.
- Flexible belt drive for speed change three steps speeds of work spindle (QM-600Ax20); Four different work speeds are obtainable by making use of double-speed motor & the belts in work head (QM-600Ax16, QM-600Ax18).
- Flexible belt drive for speed change three steps speeds of work spindle (QM-600Ax20); Four different work speeds are obtainable by making use of double-speed motor & the belts in work head (QM-600Ax16, QM-600Ax18).
- Union chuck are used in the headstock and tailstock for adjusting eccentricity up to 120 mm.
- Friction coupling is used in the headstock transmission chain for its easy adjustment.
- Table longitudinal traverse is operated either by hand or by power.
- The bed ways & wheel-head ways are lubricated in automatic cycle by means of oil pump.
- Plastic coated bed ways with less friction.
- The digital display device can be optional.
Specification | Unit | QM-600Ax16 | QM-600Ax18 | QM-600Ax20 |
Max. work swing dia. x Max. length | mm | 580x1600 | 580x1800 | 580x2000 |
Max. swing dia. over table | mm | 580 | 580 | 580 |
Work dia. ground with steady rest | mm | 30-100 | 300-100 | 50-120 |
Throw of crankshaft | mm | 110 | 110 | 120 |
Max. work length ground: between centers | mm | 1600 | 1800 | 2000 |
Max. work weight | kg | 120 | 120 | 150 |
Center height | mm | 300 | 300 | 300 |
Work speed | rpm | 25,45,95 | 25,45,95 | 30,45,65,100 |
Max. cross movement | mm | 185 | 185 | 185 |
Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 100 |
Wheel spindle speed | rpm | 740,890 | 740,890 | 740,890 |
Wheel peripheral speed | m/s | 25.6-35 | 25.6-35 | 25.6-35 |
Grinding wheel size | kw | 900x32x305 | 900x32x305 | 900x32x305 |
Table travel/turn of handwheel coarse | mm/r | 5.88 | 5.88 | 5.88 |
Table travel/turn of handwheel fine | mm/r | 1.68 | 1.68 | 1.68 |
Table swivel (taper 18/100) | ° | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
Total motor power | kw | 9.82 | 9.82 | 11.12 |
Machine dimensions(LxMxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4166x2037x1584 |
Machine weight | kg | 6000 | 6200 | 7000 |
Ovality | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.01 | 0.01 |
Roughness(external) | um | Ra0.32 | Ra0.32 | Ra0.32 |
Roughness(end) | um | Ra0.63 | Ra0.63 | Ra0.63 |
· 3-jaw chuck · Wheel adopter · Grinding wheel & wheel extractor · Steady rest · Driving dog · Wheel dresser · Wheel balancing arbor · Vertical aligning stand · Horizontal aligning stand | · End dresser · Diamond pen · Digital indicator · Centering device · Wheel balancing stand · Hanging measuring device |
