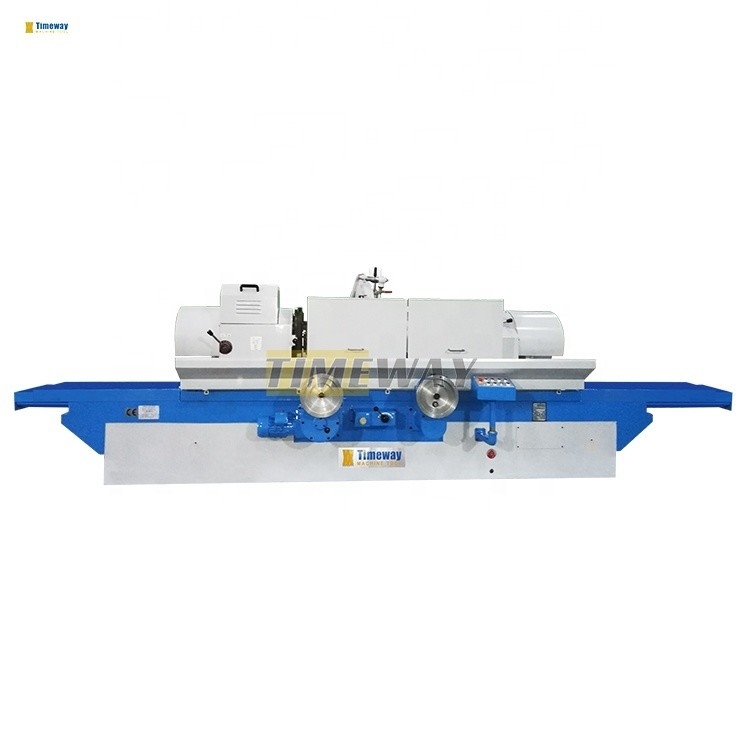

Max. Work Length Ground Between Centers 1600mm QM-600C Crankshaft Grinding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 900x32x305 |
| Year: | 2022 | Voltage: | As Customer's Requirements |
| Dimension(L*W*H): | 4166x2037x1584mm | Weight (KG): | 6000 |
| Power (kW): | 9.82 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | India, UAE, Spain, South Korea, Egypt, Russia, Canada, United States, Peru, Thailand, Chile, Pakistan, Ukraine, Brazil, United Kingdom, Indonesia |
| Applicable Industries: | Construction Works , Retail | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Max. Swing Dia. Over Table: | 600x1600mm | Throw Of Crankshaft: | 110mm |
| Max. Work Length Gound: Between Centers: | 1600mm | Max. Loading Capacity: | 120kg |
| Center Height: | 300mm | Work Speed: | 25, 45, 95rpm |
| Wheel Spindle Speed: | 740, 890rpm | Grinding Wheel Size: | 900x32x305mm |
| Total Motor Power: | 9.82kw | Color: | Client's Request |
Product Description
Products Description
The crankshaft grinding machine is used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crank-pins of crankshaft, also used in large engineering machinery and diesel engines for ships to grind crankshaft.
*QM-600Cx16, QM-600Cx18*
Work spindle speed adjustable between 3 speeds by simply changing belts.

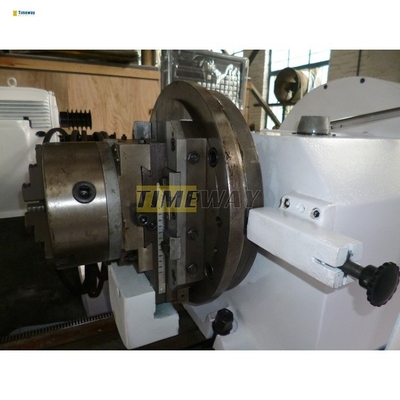

Cross swallow tailed chucks used in workstock and tailstock.
Friction clutch used in the headstock transmission chain for easy adjustment.
Single layer table, with an oblique angle of 10 degree; table traverse operated both by hand and by power.
Rapid approach and withdrawal of wheel carriage effected by hydraulic means.
The wheel spindle being of 80mm in diameter has good rigidity and strength.
The rolling guideways employed for movement of wheel carriage.
Lubrication of table and wheel carriage operated automatically bu oil pump circulation.
Work spindle speed adjustable between 3 speeds by simply changing belts.
Cross swallow tailed chucks used in workstock and tailstock.
Friction clutch used in the headstock transmission chain for easy adjustment.
Single layer table, with an oblique angle of 10 degree; table traverse operated both by hand and by power.
Rapid approach and withdrawal of wheel carriage effected by hydraulic means.
The wheel spindle being of 80mm in diameter has good rigidity and strength.
The rolling guideways employed for movement of wheel carriage.
Lubrication of table and wheel carriage operated automatically bu oil pump circulation.
*QM-600x30*
Table traverse operated either by hand or by power; rapid approach & withdrawal of wheel carriage effected by hydraulic means.
Wheel spindle rotation controlled by a hydraulic & mechanical interlocking mechanism.
Workpiece rotation driven by servo motors controlled bu an electrical synchronous system.
The hydrostatic & dynamic wheel spindle driven by pulleys, equipped with separated oil system, separated lubrication device, special oil tank, and air cooling device as well.
The machine equipped with an independent electrical cabinet, coolant system and magnetic separator.
The machine has an independent coolant device attached with a magnetic separator filtering the dirt efficiently.
Specification | Unit | QM-600Cx16 | QM-600Cx18 | QM-600x30 |
Max. work swing dia. x Max. length | mm | 600x1600 | 600x1800 | 600x3000 |
Max. swing dia. over table | mm | 600 | 600 | 600 |
Work dia. ground with steady rest | mm | 30-110 | 300-110 | 30-200 |
Throw of crankshaft | mm | 110 | 110 | 120 |
Max. work length ground: between centers | mm | 1600 | 1800 | 3000 |
Max. work weight | kg | 120 | 120 | 1000 |
Center height | mm | 300 | 300 | 320 |
Work speed | rpm | 25,45,95 | 25,45,95 | 25-95(stepless) |
Max. cross movement | mm | 185 | 185 | 185 |
Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 260 |
Wheel spindle speed | rpm | 740,890 | 740,890 | 740,890 |
Wheel peripheral speed | m/s | 25.6-35 | 25.6-35 | 35 |
Grinding wheel size | kw | 900x32x305 | 900x32x305 | 900x65x305 |
Table travel/turn of handwheel coarse | mm/r | 5.88 | 5.88 | 5.88 |
Table travel/turn of handwheel fine | mm/r | 1.68 | 1.68 | 1.68 |
Total motor power | kw | 9.82 | 9.82 | 35 |
Machine dimensions(LxMxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 9650x2400x1584 |
Machine weight | kg | 6000 | 6500 | 14500 |
Ovality | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.01 | 0.01 | 0.012 |
Roughness(external) | um | Ra0.32 | Ra0.32 | Ra0.32 |
Roughness(end) | um | Ra0.63 | Ra0.63 | Ra0.63 |
· 3-jaw chuck · Wheel adopter · Grinding wheels & wheel extractor · Steady rest · Driving dog · Wheel dresser · Wheel balancing arbor · Vertical aligning stand · Horizontal aligning stand | · End dresser · Diamond pen · Digital indicator · Centering device · Wheel balancing stand · Hanging measuring device |
