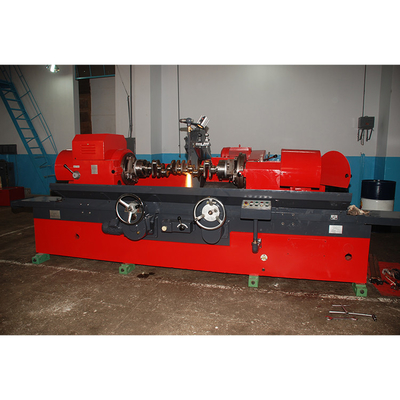

QM-400 Crankshaft Grinder Machine Perfectly Suited for Heavy Construction Works
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 750 |
| Year: | New | Voltage: | According To Customer's Requirement, 220-600V |
| Dimension(L*W*H): | 4115x2050x1500 | Weight (KG): | 5000 |
| Power (kW): | 7.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, UAE, Viet Nam, Australia, South Korea, Russia, Canada, United States, Peru, Chile, Pakistan, Ukraine, Brazil, United Kingdom |
| Applicable Industries: | Construction Works | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Color: | Customized Optional | Max. Swing Dia. Over Bed: | 400mm |
| Max. Length Of Workpiece(chucks): | 830mm | Between Centers: | 1000mm |
| Max. Workpiece Weight: | 80kg | Main Motor Power: | 7.5kw |
| Machine Weight: | 5000kg | Roughness: | 0.005mm |
| Cylindricity: | 0.008mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

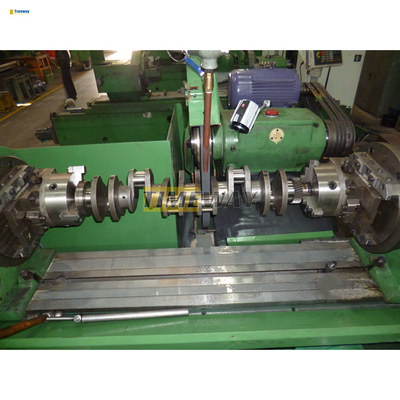

- Crankshaft grinding machine is suitable for grinding cranks of engine crankshaft in automotive, tractor and diesel repair shops, and also can be used for general cylindrical grinding.
- The machine tool set a safe interlock, when grinding crankshaft and wheelhead at grinding position, table can longitudinal move by only manual, don't hydraulic driven; when wheelhead at back position, table can longitudinal move by manual and hydrarulic.
- Longitudinal movement of table adopts the methods of manual or hydraulic movement.
- Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
- The worktable and the grinding wheel adopt hydraulic and electric interlocking structure, which can ensure the operation safety regardless of adjustment or grinding due to operational errors.

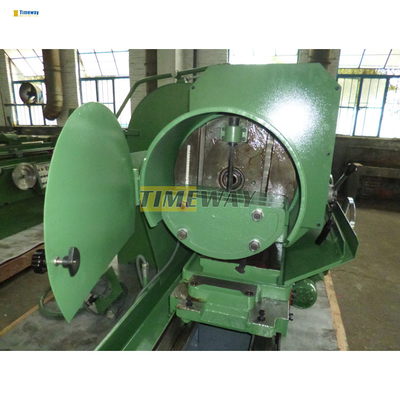

- The wheelhead is equipped with a reliable protective cover.
- Wheelhead cross rapid feed and table longitudinal movement all are driven by hydraulic.
- The machine tool set a safe interlock, when grinding crankshaft and wheelhead at grinding position, table can longitudinal move by only manual, don't hydraulic driven; when wheelhead at back position, table can longitudinal move by manual and hydrarulic.
- The grinder can realize grinding external cylindrical, table longitudinal feed by hydraulic and feed speed variable; wheelhead manual feed.
- The workpiece is clamped by centers or chucks, driven by the headstock motor, and manually ground.
- Longitudinal movement of table adopts the methods of manual or hydraulic movement.
- Workhead spindle, wheelhead spindle, oil pump, cooling pump are driven by separate motors.
- The worktable and the grinding wheel adopt hydraulic and electric interlocking structure, which can ensure the operation safety regardless of adjustment or grinding due to operational errors.
- The wheelhead is equipped with a reliable protective cover.
Specification | Unit | QM-400 | QM-600 | QM-660 |
Max. swing dia. over bed | mm | 400 | 600 | 660 |
Max. length of workpiece (chucks) | mm | 830 | 1830 | 1830 |
Between centers | mm | 1000 | 2000 | 2000 |
Max. grinding dia. of crankshaft journal | mm | 130 | 130 | 130 |
Min. grinding dia. of crankshaft journal | mm | 30 | 30 | 30 |
Max. crankshaft crank radius | mm | 80 | 110 | 120 |
Max. workpiece weight | kg | 80 | 400 | 500 |
Grinding wheel diameter | m/s | 35 | 35 | 35 |
Wheel peripheral speed | rpm | 7.5 | 15 | 15 |
Main motor power | kw | 100 | 100 | 100 |
Machine weight | kg | 5000 | 11900 | 11900 |
Machine dimensions(LxMxH) | mm | 4115x2050x1500 | 6000x2580x1750 | 6000x2580x1750 |
Cylindricity | mm | 0.008 | 0.008 | 0.008 |
Roughness(external/end) | um | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 |
· Bridge plate · Grinding wheel · Steady rest · Wheel dresser · Vertical stand · Horizontal stand | · End dresser · Measuring device · Digital readout · Center device · Balancing stand · Polisher |
