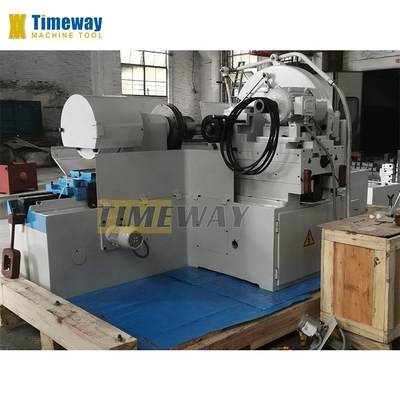

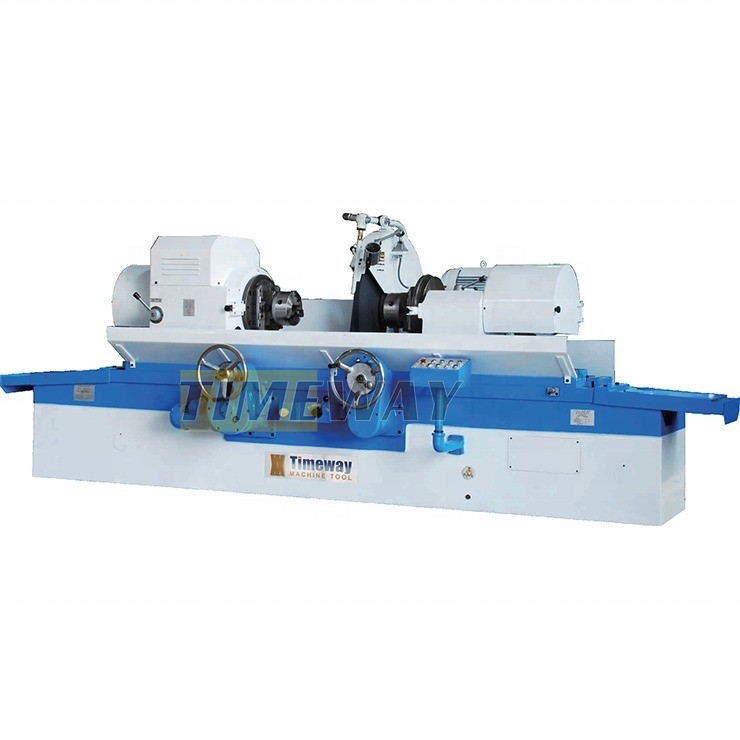

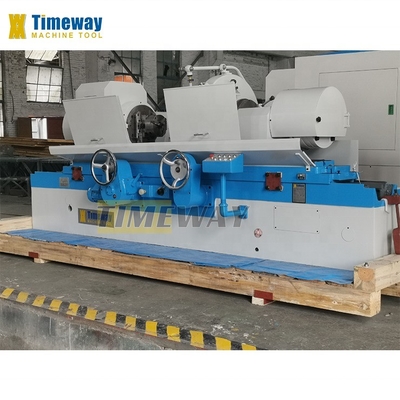

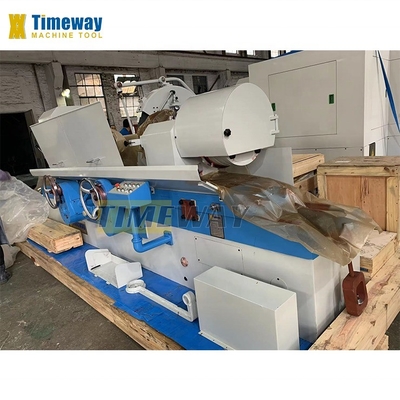

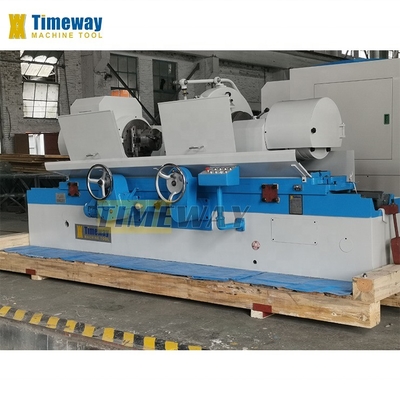

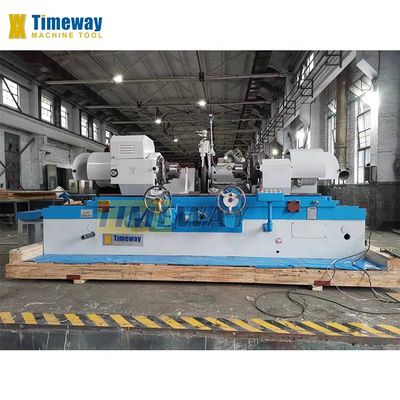

Engine Rebuilding Machine Crankshaft Grinder for Work Dia. 30-110 and Max. Work Weight 120
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2023 |
| Voltage: | 220V/380V 50Hz | Dimension(L*W*H): | 4166x2037x1584mm |
| Weight (KG): | 6000 | Power (kW): | 9.82kw |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Showroom Location: | India, Viet Nam, Russia | Applicable Industries: | Manufacturing Plant, Construction Works |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Max. Swing Diameter Over Table: | 580 |
| Max. Work Swing Dia. X Max. Length: | 580*1600 | Work Dia. Ground With Steady Rest: | 30-110 |
| Throw Of Crankshaft: | 110 | Max. Work Length Ground: In 3-jaw Chuck: | 1400 |
| Max. Work Length Ground: Between Centers: | 1600 | Max. Work Weight: | 120 |
| Center Height: | 300 | Work Speed: | 25,45,95 |
| Max. Cross Movement: | 185 | Port: | China Port |
Product Description
Products Description
Model | Unit | MQ8260Ax16 | MQ8260Ax18 | MQ8260Ax20 |
Max. work swing dia. x Max. length | mm | 580x1600 | 580x1800 | 580x2000 |
Max. swing daimeter over table | mm | 580 | 580 | 580 |
Work dia. ground with steady rest | mm | 30-100 | 30-100 | 50-120 |
Throw of crankshaft | mm | 110 | 110 | 120 |
Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 |
Max. work length ground: between centers | mm | 1600 | 1800 | 2000 |
Max. work weight | kg | 120 | 120 | 150 |
Center height | mm | 300 | 300 | 300 |
Work speed | rpm | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 |
Max. cross movement | mm | 185 | 185 | 185 |
Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 100 |
Wheel feed per turn of cross feed handwheel | mm | 1 | 1 | 1 |
Per grad of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 |
Wheel spindle speed | rpm | 740, 890 | 740, 890 | 740, 890 |
Wheel peripheral speed | m/s | 25.6-35 | 25.6-35 | 25.6-35 |
Grinding wheel size | mm | 900x32x305 | 900x32x305 | 900x32x305 |
Table travel per turn of handwheel coarse | mm/r | 5.88 | 5.88 | 5.88 |
Table travel per turn of handwheel fine | mm/r | 1.68 | 1.68 | 1.68 |
Table swivel (taper 18/100) | ° | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
Table swivel per grad of scale(taper 1:50) | ° | 1°, taper 1/100 | 1°, taper 1/100 | 1°, taper 1/100 |
Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 |
Machine dimensions (LxWxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4900x2037x1584 |
Machine weight | kg | 6000 | 6200 | 7000 |
Ovality (new standard) | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.01 | 0.01 |
Roughness (external) | um | Ra0.32 | Ra0.32 | Ra0.32 |
Roughness (end) | um | Ra0.63 | Ra0.63 | Ra0.63 |
3-jaw chuck Wheel adapter Grinding wheels & wheel extractor Steady rest Driving dog Wheel dresser Wheel balancing arbor Vertical aligning stand Horizontal aligning stand | End dresser Diamond pen Digital indicator Centering device Wheel balancing stand Hanging measuring device |
