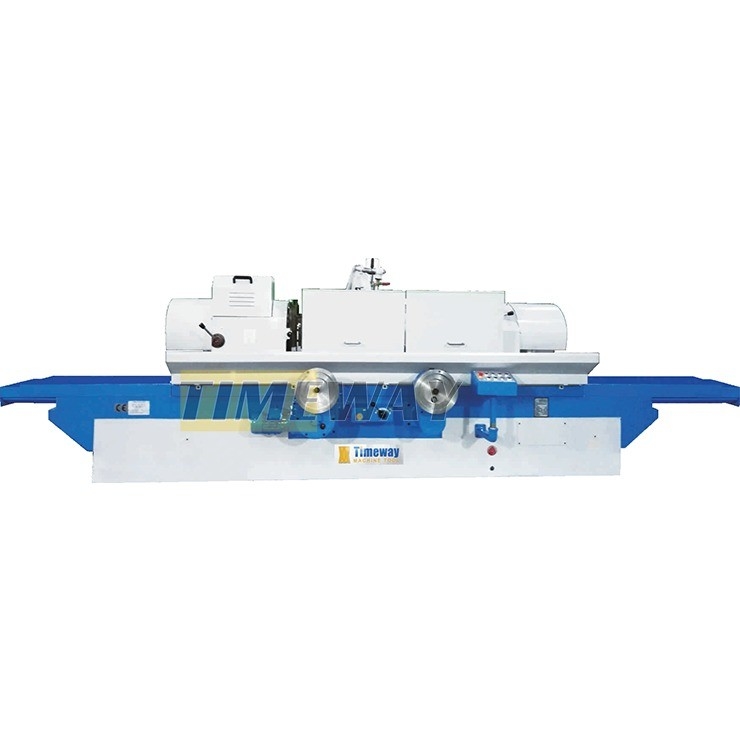

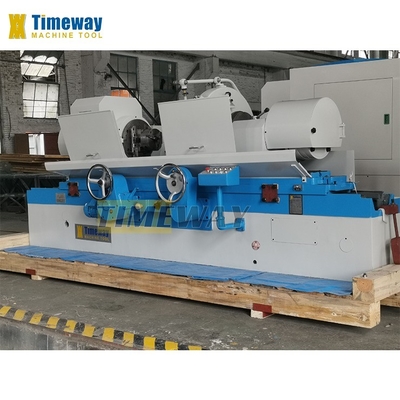

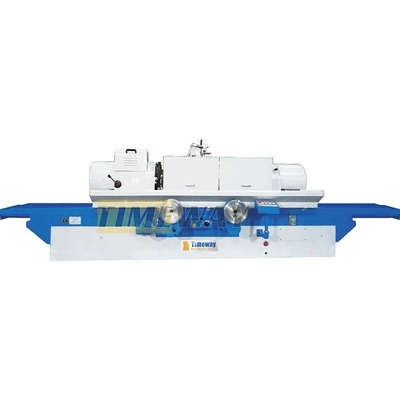

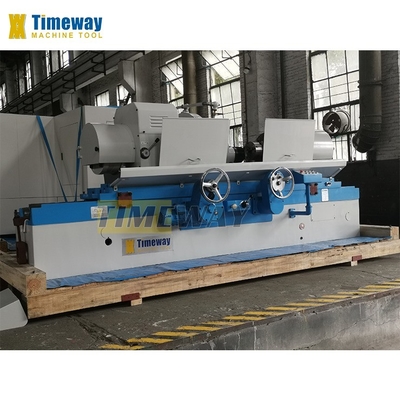

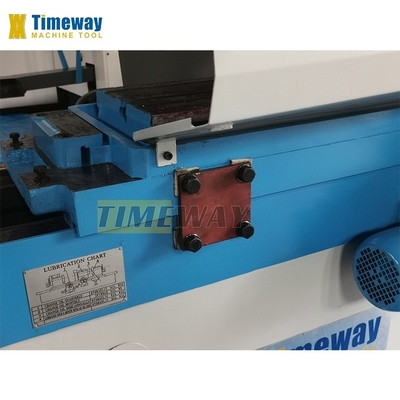

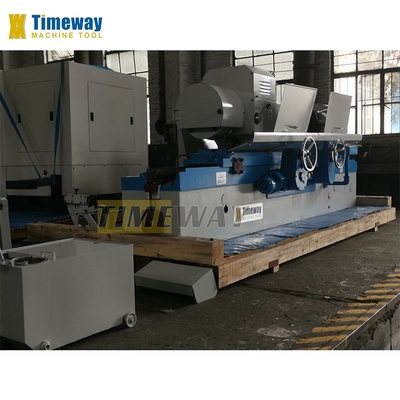

9.82kw Universal Engine Rebuilding Machine for Automobile and Tractor Diesel Engine Works
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2023 |
| Voltage: | 220V/380V 50Hz | Dimension(L*W*H): | 4166x2037x1584mm |
| Weight (KG): | 6000 | Power (kW): | 9.82kw |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Showroom Location: | India, Viet Nam, Russia | Applicable Industries: | Manufacturing Plant, Construction Works |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Max. Swing Diameter Over Table: | 580 |
| Max. Work Swing Dia. X Max. Length: | 580*1600 | Work Dia. Ground With Steady Rest: | 30-110 |
| Throw Of Crankshaft: | 110 | Max. Work Length Ground: In 3-jaw Chuck: | 1400 |
| Max. Work Length Ground: Between Centers: | 1600 | Max. Work Weight: | 120 |
| Center Height: | 300 | Work Speed: | 25,45,95 |
| Max. Cross Movement: | 185 | Port: | China Port |
Product Description
Products Description
Model | Unit | M8260 | M8266 | MQ8240A |
Max. swing diameter over bed | mm | 600 | 660 | 400 |
Max. length of workpiece (chucks) | mm | 1830 | 1830 | 830 |
Between centers | mm | 2000 | 2000 | 1000 |
Max. grinding diameter of crankshaft journal | mm | 130 | 130 | 130 |
Min. grinding diameter of crankshaft journal | mm | 30 | 30 | 30 |
Max. crankshaft crank radius | mm | 110 | 120 | 80 |
Max. workpiece weight | kg | 400 | 500 | 80 |
Grinding wheel diameter | mm | 900/700 | 900/700 | 750 |
Wheel peripheral speed | m/s | 35 | 35 | 35 |
Main motor power | kw | 15 | 15 | 7.5 |
Machine weight | kg | 11900 | 11900 | 5000 |
Machine dimensions (LxWxH) | mm | 6000x2580x1750 | 6000x2580x1750 | 4115x2050x1500 |
Roundness | mm | 0.005 | 0.005 | 0.005 |
Cylindricity | mm | 0.008 | 0.008 | 0.008 |
Roughness (external/end) | um | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 | Ra0.32/Ra0.8 |
3-jaw chuck Wheel adapter Grinding wheels & wheel extractor Steady rest Driving dog Wheel dresser Wheel balancing arbor Vertical aligning stand Horizontal aligning stand | End dresser Diamond pen Digital indicator Centering device Wheel balancing stand Hanging measuring device |
