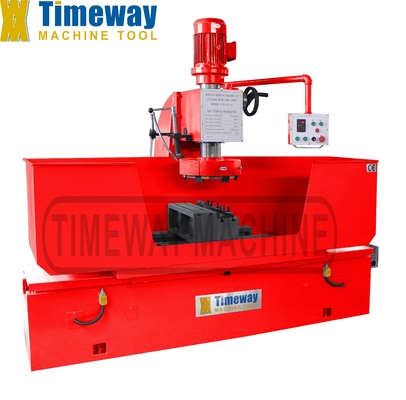

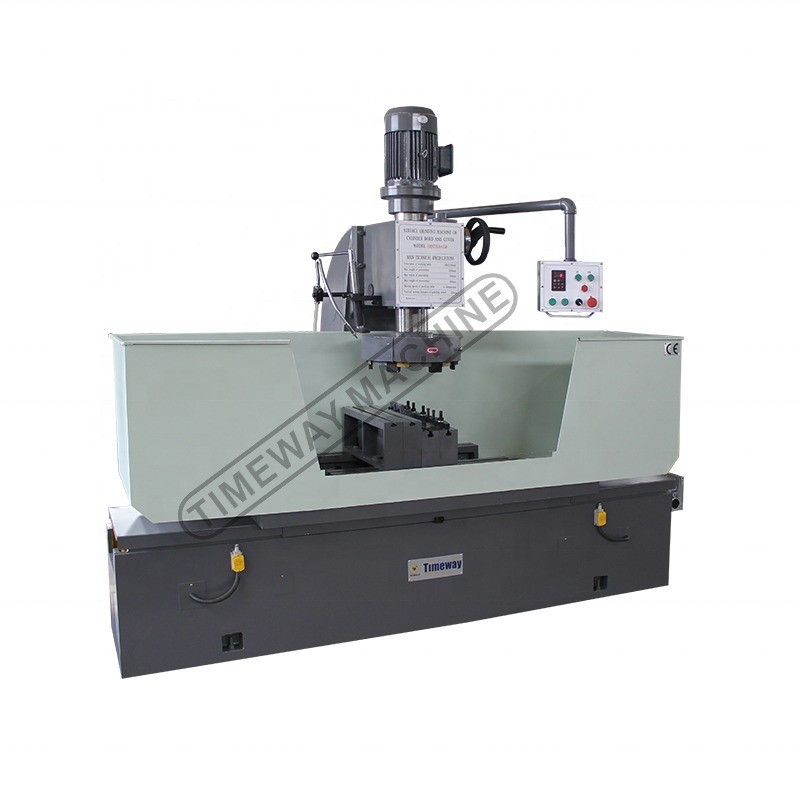

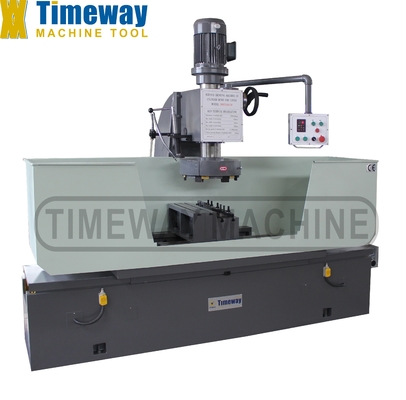

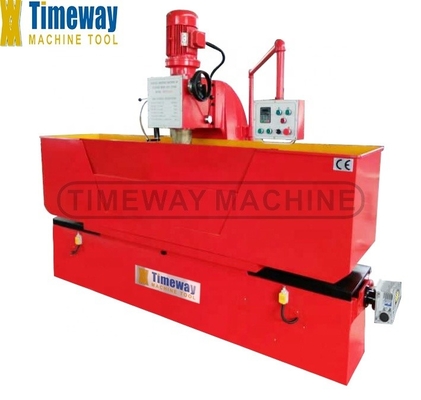

Professional Cylinder Block Grinding Milling Machine/Rectificadora de Culatas 3M9735A
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,500.00/sets 1-2 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2022 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 2300 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Philippines, Pakistan, Morocco, Colombia, Kazakhstan, Japan | Product Name: | Cylinder Head Surface Grinding Machine |
| Type: | Cylinder Head And Block Surface Grinding Machine | Name: | Cylinder Block Surface Grinding Machine |
| Machine Type: | Surface Grinder For Cylinder Heads | Key Word: | Surface Grinding Cylinder Heads |
| Keywords: | Cylinder Head Surface Grinding Machine | Color: | Customer Choose |
| After-sales Service Provided: | Online Support | Model: | 3M9735A |
| Port: | China Port | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Cylinder Block Grinding Machine
Features:
Cylinder Block Grinding & Milling Machine
1. The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2. Because of the engine be used for long, the connecting surface of cylinder body and cylinder cover would transmute and the engine will working off normal.
3. Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled.
4. The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
5. The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material. Emery wheel feeding is manual. Emery wheel feed 0.02mm during hand wheel rotate 1 lattice. Pulley adopt with unloading to make the main spindle only usutain twisting moment.
6. The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the
potentiometer whorl twists and to gain right feed speed, easy to operate reliable.
1. The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2. Because of the engine be used for long, the connecting surface of cylinder body and cylinder cover would transmute and the engine will working off normal.
3. Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled.
4. The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
5. The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material. Emery wheel feeding is manual. Emery wheel feed 0.02mm during hand wheel rotate 1 lattice. Pulley adopt with unloading to make the main spindle only usutain twisting moment.
6. The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the
potentiometer whorl twists and to gain right feed speed, easy to operate reliable.
Specification
Specification | 3M9735Ax130 | 3M9735Ax150 |
Max. length of grinding | 1300 mm | 1500 mm |
Max. width of grinding | 350 mm | 350 mm |
Max height of grinding | 600 mm | 800 mm |
Vertical moving distance of grinding head | 120 mm | 120 mm |
Transverse moving speed of working table | 40-900 mm/min | 30-900 mm/min |
Grinding wheel disk diameter | 360 mm | 360 mm |
Spindle speed | 1400/700 r/min | 1400/700 r/min |
Electric motor power cooling down | 0.4 Kw | 0.4 Kw |
Power of the main motor | 1.5/2.4 kw | 1.5/2.4kw |
Machine Details
