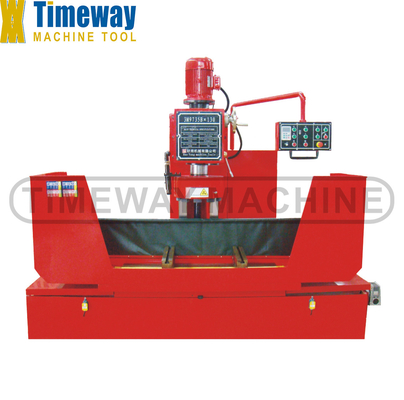

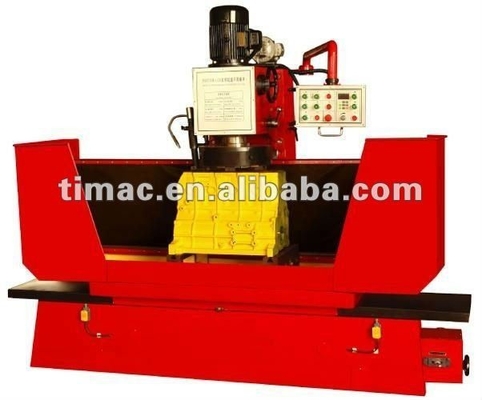

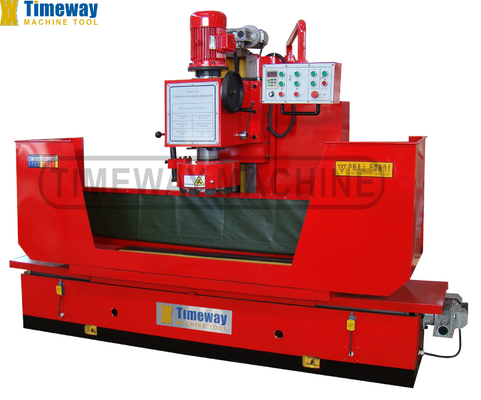

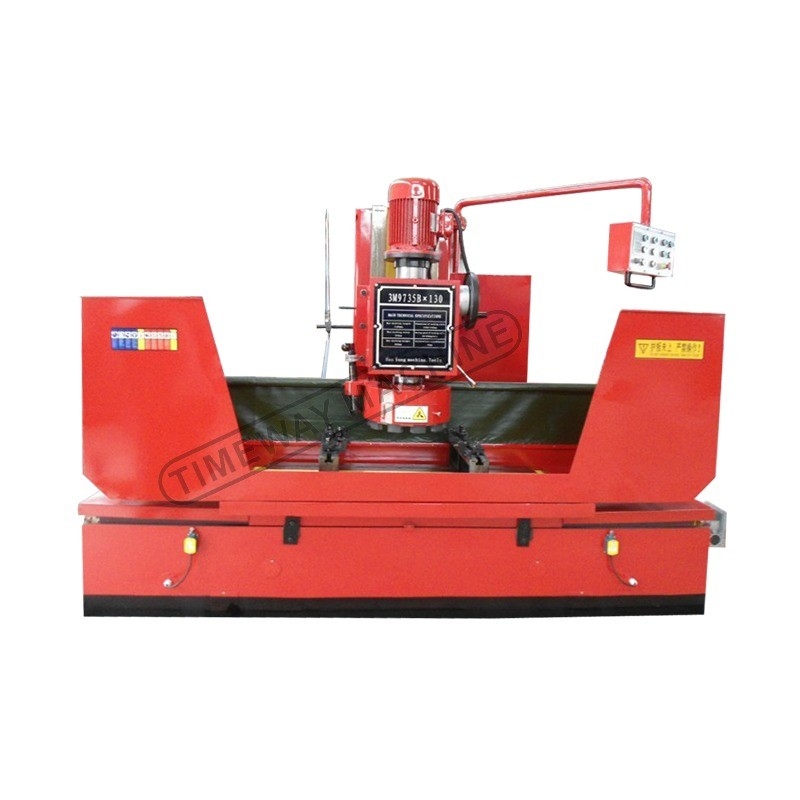

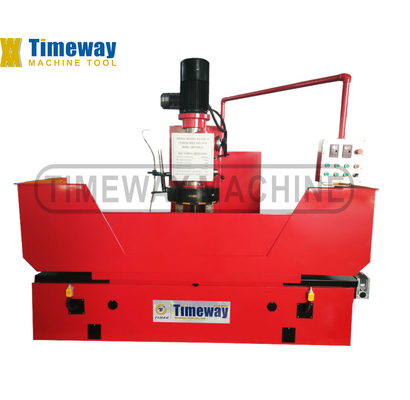

Accurate Cylinder Block Cylinder Head Surface Grinding Milling Machine 3M9735B 2500kg
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,800.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Weight (KG): | 2500 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
| Showroom Location: | United States, Brazil, Russia, UAE, Algeria, South Africa, Malaysia, Australia | Style: | Fashion |
| Brand: | TIMAC | Weight: | 2500kg |
| Working Table Size: | 1300x500 Mm | Max Working Length: | 1300mm |
| After Warranty Service: | 1year | Key Selling Point: | Competitive Price |
| Color: | Customer Choose | Product Name: | Cylinder Block Grinding Machine |
| Name: | Block Lathe Grinding Machine | Port: | China Port |
Product Description
Product Description
cylinder block grinding machine
Features:
1. This machine is Surface Grinding and Milling Machine for small and medium, large-size cylinder heads and blocks. This machine is accurate and wide use. It makes possible to solve mostly grinding jobs, and it is optimal and economic choice.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
Specification
Specification | 3M9735Bx130 | 3M9735Bx150 |
Working table size | 1300 x500mm | 1500x500mm |
Max working length | 1300 mm | 1500 mm |
Max. width of grinding | 350 mm | 350 mm |
Max height of grinding | 800 mm | 800 mm |
The vertical moving distance of grinding head | 60 mm | 60 mm |
The vertical moving distance of spindle box | 800 mm | 800 mm |
Spindle speed | 1400/700 r/min | 1400/700 r/min |
Transverse moving speed of working table | 40-900 mm/min | 40-900 mm/min |
Overall dimensions(LxWxH) | 2800x1050x1700 mm | 3050x1050x1700 mm |
Packing dimensions(LxWxH) | 3100x1200x1850 mm | 3350x1200x1850 mm |
N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
