7.5kW Spindle Motor Power High Precision Horizontal Boring Machine with Digital Display
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,856.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 110 | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 5 | Travel (W-axis) (mm): | 600 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Other | Positioning Accuracy (X Axis) Mm: | 900 |
| Positioning Accuracy (Y Axis) Mm: | 900 | Positioning Accuracy (Z Axis) Mm: | 1400 |
| No. Of Spindles: | Single | Range Of Spindle Speed(r.p.m): | 1000 R.p.m |
| Spindle Motor Power(kW): | 7.5 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220V/380V | Dimension(L*W*H): | 3600x3450x1100 Mm |
| Weight (T): | 13 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Russia, Ukraine | Product Name: | Boring Machine |
| Name: | Boring Machine | Application: | Construction Machine Repairing |
| Functions: | Boring | Product Type: | Horiontal Boring |
| Color: | Custmized | Model: | TPX-110C |
| Precision: | High Precision | Operation Method: | Sample |
| Port: | China Port | ||
Product Description
Product Description
horizontal boring and milling machine:
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4*90 optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4*90 optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
Specification
Specifications | Units | TPX-110B | TPX-110C | TPX-110D | ||
Spindle | Diameter | mm | 110 | 110 | 110 | |
Taper | Morse No.6 | Morse No.6 | Morse No.6 | |||
Max. torque | N.m | 1225 | 1225 | 1225 | ||
Max. axial thrust | N | 12250 | 12250 | 12250 | ||
Speed settings | - | 22 | 22 | 22 | ||
Speed range | rpm | 8-1000 | 8-1000 | 8-1000 | ||
Main motor power | kw | 7.5 | 7.5 | 7.5 | ||
Facing plate | Max. torque | N.m | 1960 | 1960 | 1960 | |
Diameter | mm | 600 | 600 | 600 | ||
Speed range | rpm | 4-200 | 4-200 | 4-200 | ||
Speed settings | - | 18 | 18 | 18 | ||
Worktable | Dimensions | mm | 1100*960 | 1100*960 | 1250*1100 | |
Max. load | kg | 5000 | 5000 | 5000 | ||
T-slot size | mm | 22 | 22 | 22 | ||
T-slot count | 7 | 7 | 7 | |||
Machining range | X-axis max. travel | mm | 900 | 1250 | 1600 | |
Y-axis max. travel | mm | 900 | 900 | 1200 | ||
Z-axis max. travel | mm | 1400 | 1400 | 1400 | ||
W-axis max. travel(spindle) | mm | 600 | 600 | 600 | ||
U-axis max. travel(facing plate slide) | mm | 180 | 180 | 180 | ||
B-axis rotary angle | ° | 360 | 360 | 360 | ||
Min. distance between spindle cneter and worktable | mm | 0 | 0 | 0 | ||
Feed | Rapid traverse X/Y/Z/W | mm/min | 2500 | 2500 | 2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | ||
Speed range(X) | mm/min | - | - | - | ||
Accuracy | Linear measurement reading accuracy(X/Y/Z-axis) | mm | 0.005 | 0.005 | 0.005 | |
Linear measurement reading accuracy(B-axis) | ° | 0.001 | 0.001 | 0.001 | ||
General Specs | Dimensions(L*W*H) | mm | 4910*2454*2750 | 4910*2870*2750 | 5028*3359*3079 | |
Machine weight | kg | 11500 | 13000 | 14000 | ||

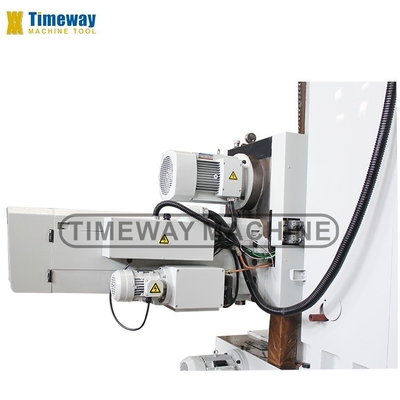

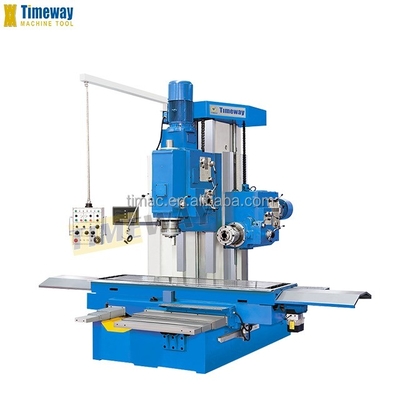

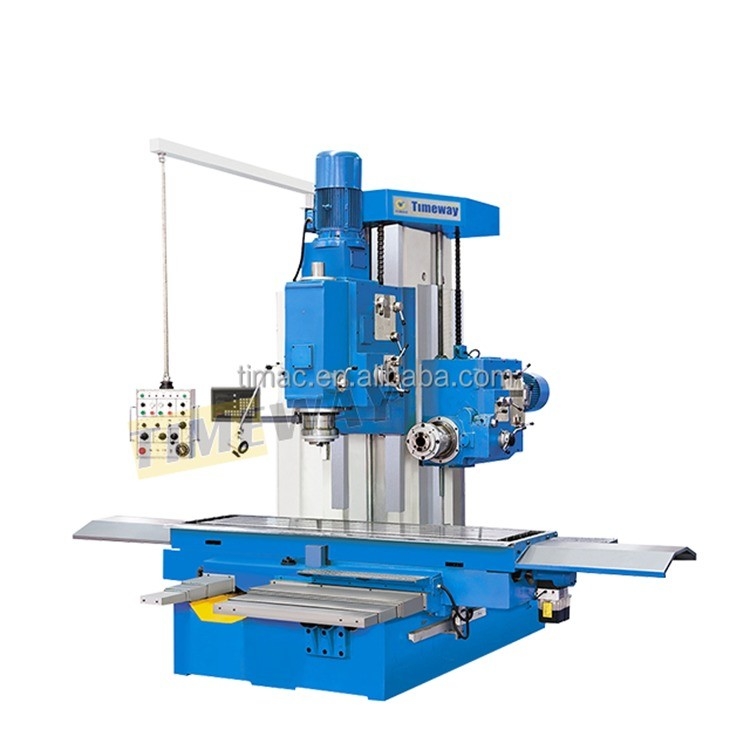

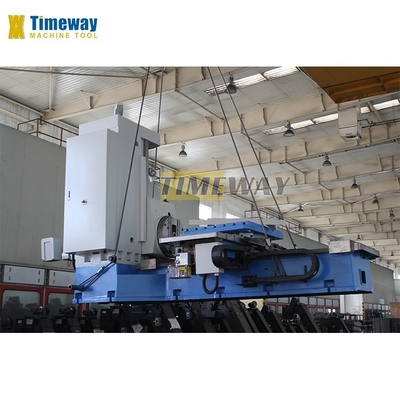

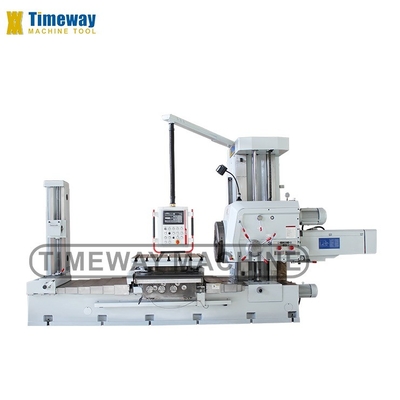

Detailed Images
