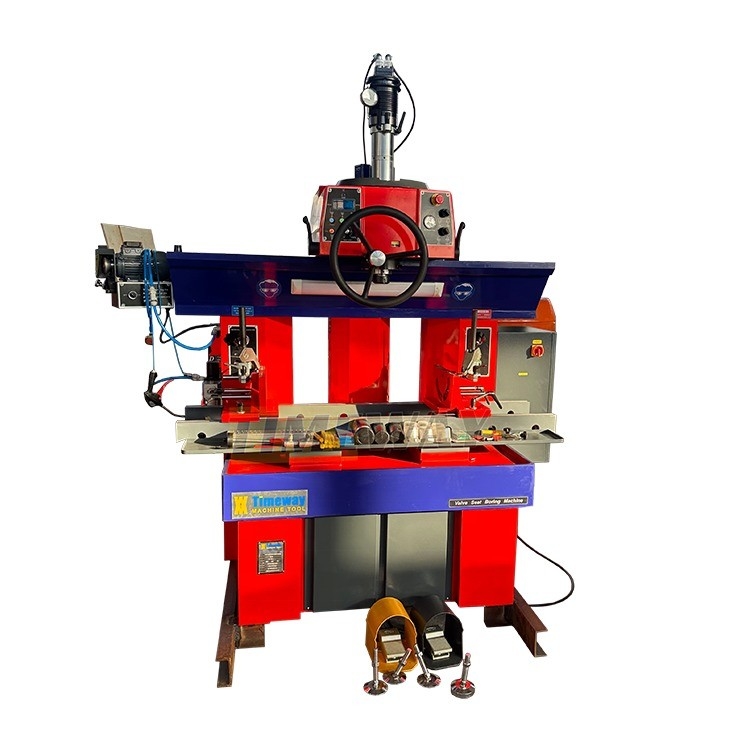

Valve Guide and Seat Boring Machine Made in for Max. Height of Cylinder Head 450mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing |
| Warranty: | 1 Year | Key Selling Points: | Powerful Magnetic Force |
| Weight (KG): | 1550 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | None | Max. Length Of Cylinder Head: | Unlimited |
| Max. Width Of Cylinder Head: | 500 Mm | Max. Height Of Cylinder Head: | 450 Mm |
| Clamper Rotary Angle: | 45° -15° | Work Head Longitudinal Floating Travel: | 900 Mm |
| Work Head Cross Floating Travel: | 40mm | Sphere Cylinder Travel: | 9mm |
| Power Of Spindle: | 100-1200rom | Electric Supply: | 380V/50HZ/3PH |
| Required Rated Air Pressure: | 6 Bar 87 PSI | ||
Product Description
Products Description
Model | VS70 |
Type of drive system | Air / Electric |
Max. length of cylinder head | unlimited |
Max. width of cylinder head | 500 mm |
Max. height of cylinder head | 450 mm |
Clamper rotary angle | 45°/-15° |
Max. boring dia. | 14 - 70 mm |
Work head longitudinal floating travel | 930 mm |
Sphere - cylinder travel | 40 mm |
Power of spindle | 9 mm |
Spindle speed | 1.8kw |
Spindle travel | 20-1000rpm |
Max. spindle incination | 200mm |
Electric supply | 5.5 |
Required rated air pressure | 380V/50HZ/3PH or220V/60HZ/3PH6 Bar / 87 PSI |
Required max air flow | 300 L /Min |
N.W. | 1550kg |
Machine dimensions( LxWxH) | 1750x1050x2170mm |
Carbide pilot, Carbide bit, Tool holder, Bit holder, Tool setting device, Sharpemer, |
Air-floating clamping device with protective cover, Operation manual (English edition) |
