Table Size 500x1500 mm and Max. Boring Diameter 200 mm Cylinder Boring Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Weight (KG): | 3500 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Canada, Turkey, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, South Korea, South Africa | Product Name: | Cylinder Boring And Milling Machine |
| Model: | Cylinder Boring Machine | After-sales Service Provided: | Online Support |
| Machine Type: | Vertical Fine Boring Machine | Application: | Repair |
| Max. Boring Diameter: | 200 Mm | Max. Boring Depth: | 500 Mm |
| Max. Milling Area: | 400x1000 Mm | Max. Drilling & Reaming Diameter: | 30 Mm |
| Table Size: | 500x1500 Mm | ||
Product Description

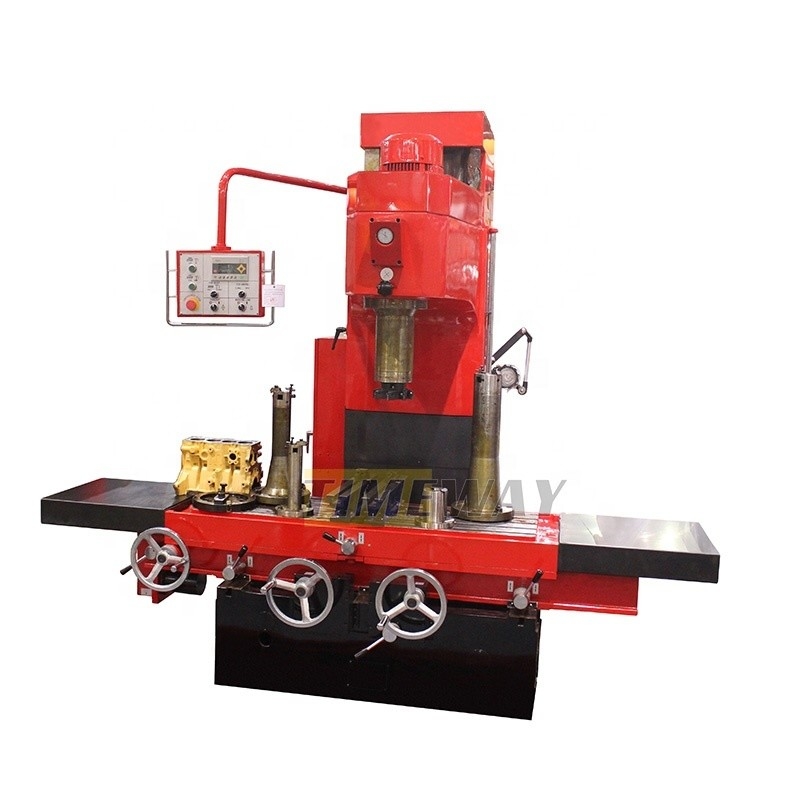

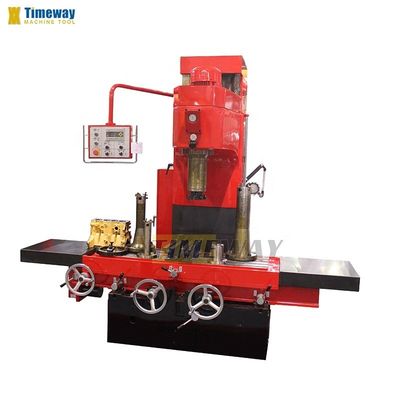

Cylinder Boring & Milling Machine BM170A,BM200A,BM250A

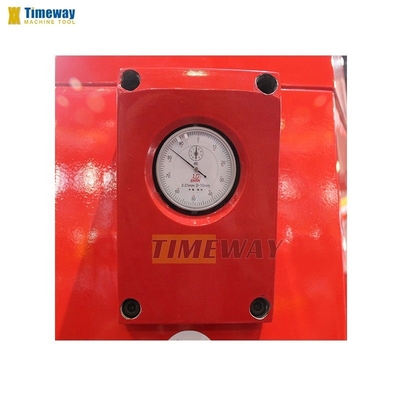

* Stepless of spindle turning ,feeding and table traveling. * Rotating speed and feed of spindle as well as the movement of worktable is free—setup, automatic returning of spindle can be realized. * Longitudinal and cross movement of table. * Complete set of accessories of boring, milling, drilling & reaming and easy exchange. * Tool fast centering device. * Tool measuring device. * Boring depth control device. * Table with digital readout for jig borer machine.
Products Description
Specification | Unit | BM170A | BM200A | BM250A |
Max. boring diameter | mm | 170 | 200 | 250 |
Max. boring depth | mm | 400 | 500 | 500 |
Max. milling area | mm | 400x1000 | 400x1000 | 400x1000 |
Max. drilling & reaming diameter | mm | 30 | 30 | 30 |
Spindle speed | rpm | 120-860 | 120-860 | 120-860 |
Spindle feed speed | mm/min | 14-900 | 14-900 | 14-900 |
Spindle rapid feed speed | mm/mim | 1000 | 1000 | 1000 |
Spindle travel | mm | 700 | 700 | 700 |
Distance from spindle nose to table | mm | 0-700 | 0-700 | 0-700 |
Distance from spindle center to column | mm | 365 | 365 | 365 |
Table longitudinal feed speed | mm/mim | 32-1350 | 32-1350 | 32-1350 |
Table longitudinal rapid feed speed | mm/min | 1350 | 1350 | 1350 |
Table longitudinal travel | mm | 1500 | 1500 | 1500 |
Table cross travel | mm | 200 | 200 | 200 |
Table size | mm | 500x1250 | 500x1500 | 500x1500 |
Boring hole surface roughness | um | Ra2.5 | Ra2.5 | Ra2.5 |
Milling hole surface roughness | um | Ra3.2 | Ra3.2 | Ra3.2 |
Main motor power | kw | 5.5 | 5.5 | 5.5 |
Machine dimensions (LxWxH) | cm | 260x163x230 | 260x163x230 | 260x163x230 |
Packing dimensions (LxWxH) | cm | 225x190x228 | 225x190x228 | 225x190x228 |
N.W/G.W | kg | 3300/3600 | 3500/3800 | 3500/3800 |
▪ Universal spindle stand ▪ Φ 52 Boring spindle ▪ Φ 60 Boring spindle ▪ Tool measuring device ▪ Tools holder and boring cutter ▪ Parallel block ▪ Operator manual in English | ▪ Φ75 Boring Spindle ▪ Φ320 Grinding Head |
Why Choose Us
Renishaw laser interferometer (only for CNC lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
