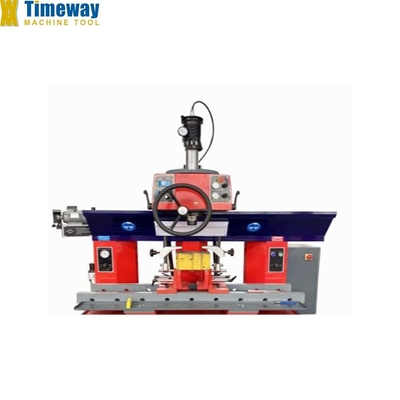

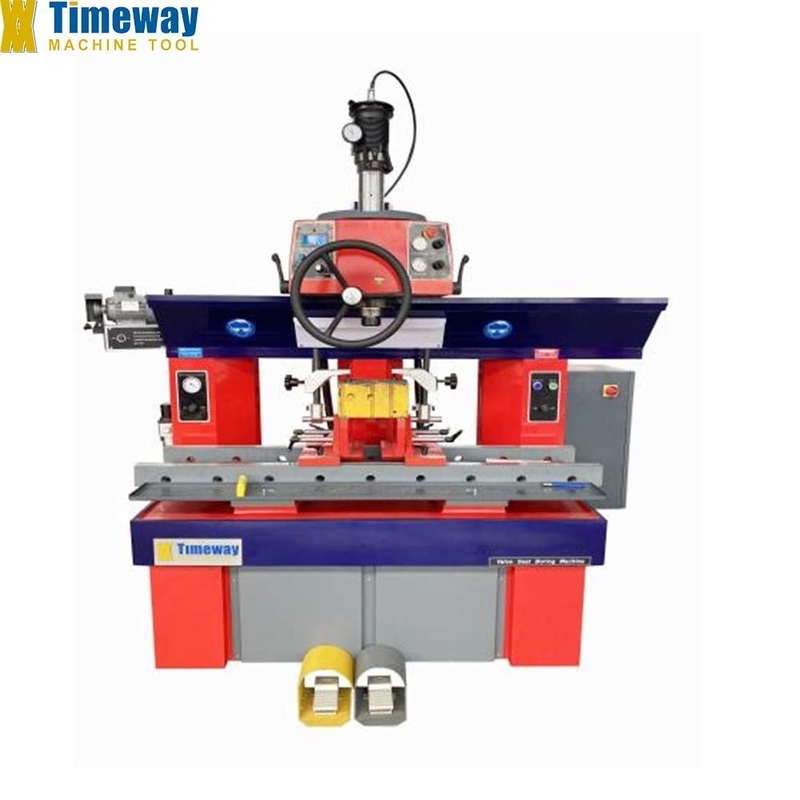

High Accuracy Valve Guide And Seat Boring Machine VS50 Precision Boring Made Easy
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 1260 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works |
| Showroom Location: | Egypt, Canada, Germany, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, Argentina, Romania, South Africa, Japan, Australia | Product Name: | Valve Seat Boring Machine |
| Model: | VS50 | Type Of Drive System: | Air/Electric |
| Max. Length Of Cylinder Head: | Unlimited | Max. Width Of Cylinder Head: | 500 Mm |
| Max. Height Of Cylinder Head: | 450 Mm | Max. Boring Dia.: | 16-50 Mm |
| Spindle Speed: | 100-1200rpm | Spindle Travel: | 200mm |
| Machine Dimensions( LxWxH): | 1450x1050x2170mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Features:
1. Valve Seat Boring Machine Model: VS50, with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats.
2. Triple air-float patented centering system and powerful spindle with built-in motor.
3. Designed for the valve seats from the smallest to the bigger diameter.
4. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 14mm to 120mm.
5. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
2. Triple air-float patented centering system and powerful spindle with built-in motor.
3. Designed for the valve seats from the smallest to the bigger diameter.
4. This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 14mm to 120mm.
5. To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Specification
Specification | VS50 |
Type of drive system | Air / Electric |
Max. length of cylinder head | unlimited |
Max. width of cylinder head | 500 mm |
Max. height of cylinder head | 450 mm |
Clamper rotary angle | 45° / -15° |
Max. boring dia. | 16 – 50 mm |
Work head longitudinal floating travel | 900 mm |
Work head cross floating travel | 40 mm |
Sphere – cylinder travel | 9 mm |
Power of spindle | 1.5kw |
Spindle speed | 100-1200rpm |
Spindle travel | 200mm |
Max. spindle incination | 5.5° |
Electric supply | 380V/50HZ/3PH or 220V/60HZ/3PH |
Required rated air pressure | 6 Bar / 87 PSI |
Required max. air flow | 300 L / Min |
Machine weight | 1260kg |
Machine dimensions( LxWxH) | 1450x1050x2170mm |

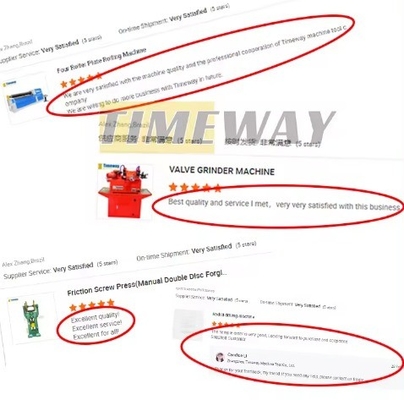

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

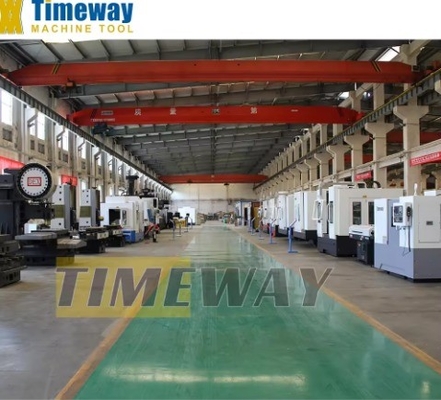

Factory Display：
