Max.width 500mm Max.length 1550mm Easy and Accurate Cylinder Head Pressure Testing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,099.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 800 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | Canada, United Kingdom, Italy, Germany, Viet Nam, Indonesia, India, Mexico, Russia, Thailand, Kenya, Bangladesh, Tajikistan, Japan, Australia | Product Name: | Cylinder Head Pressure Tester |
| Max.length Of Cylinder Head: | 1550mm | Max.width Of Cylinder Head: | 500mm |
| Max.height Of Cylinder Head: | 550mm | Heating Elements Power: | 2x5.5kw |
| Hydraulic Motor Power: | 0.75kw | Workpiece Size: | 1500x600x800mm |
| Vertical Lifting Speed: | 60mm/sec | Power Supply: | 3x380V-AC-50Hz |
| Machine Weight: | 800kg | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

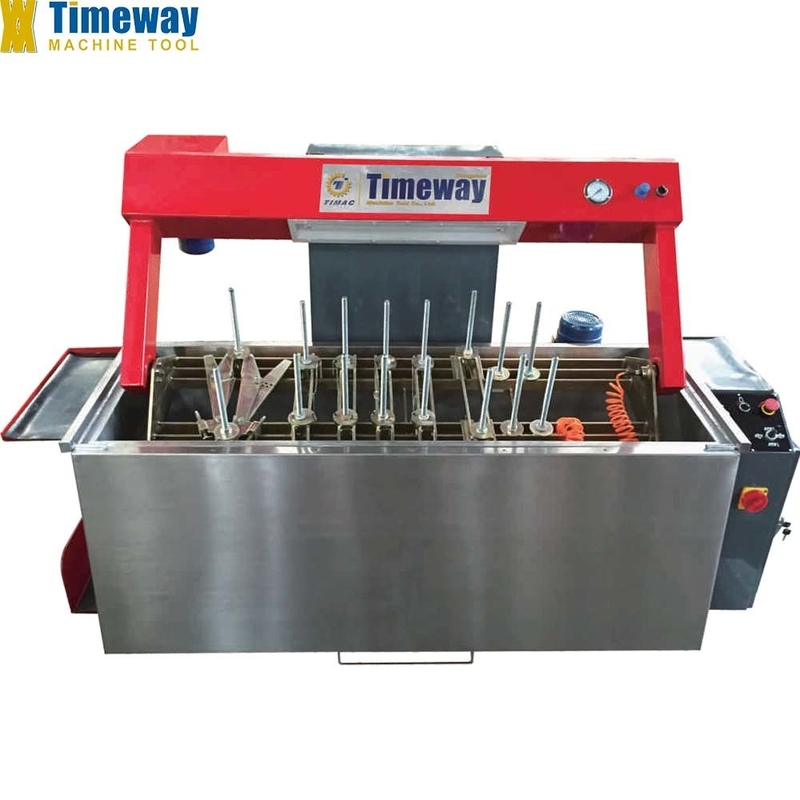

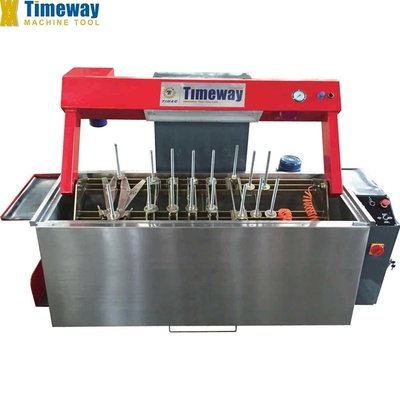

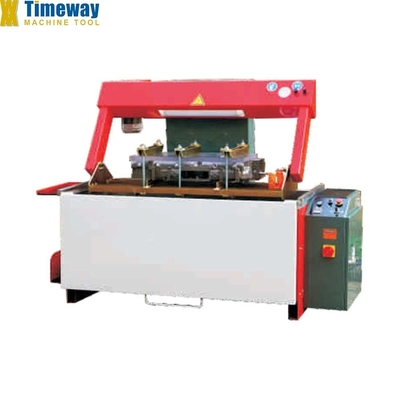

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
360° Electric powered roll-over fixture.
Hydraulic cradle lift for easy positioning of heavy cylinder heads.
Stainless steel tank with heat barrier.
Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.
360° Electric powered roll-over fixture.
Hydraulic cradle lift for easy positioning of heavy cylinder heads.
Stainless steel tank with heat barrier.
Accessories：
Cylinder head holding flat parallels
Clamping system
Rubber washer
Plastic plate
Pipe & connector
Clamping system
Rubber washer
Plastic plate
Pipe & connector
Specification
SPECIFICATION | UNIT | HP60150 |
Max.length of cylinder head | mm | 1550 |
Max.width of cylinder head | mm | 500 |
Max.height of cylinder head | mm | 550 |
Dimensions inside the sink | mm | 1846x880x900 |
Workpiece size | mm | 1500x600x800 |
Heater | kw | 2x5.5 |
Hydraulic oil pump motor | kw | 0.75 |
Geared motor | kw | 0.75 |
Fliping speed | rpm | 4.5 |
Lifting speed | mm/sec | 60 |
Temperature range | °C | 0-90 |
Power supply | - | 3x380V-AC-50Hz |
Workpiece loading capacity | kg | 450 |
Machine weight | kg | 800 |
Machine dimensions (LxWxH) | mm | 3400x1300x1950 |

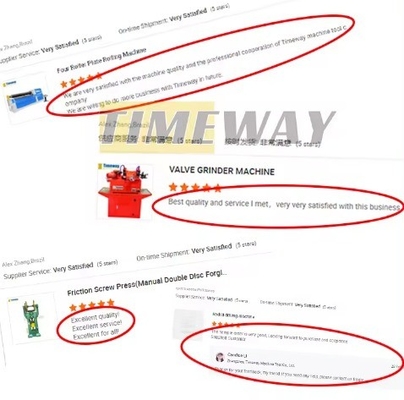

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

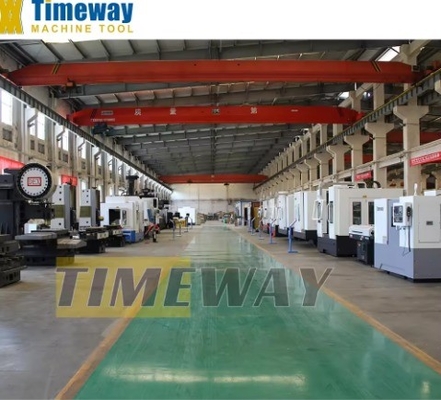

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
