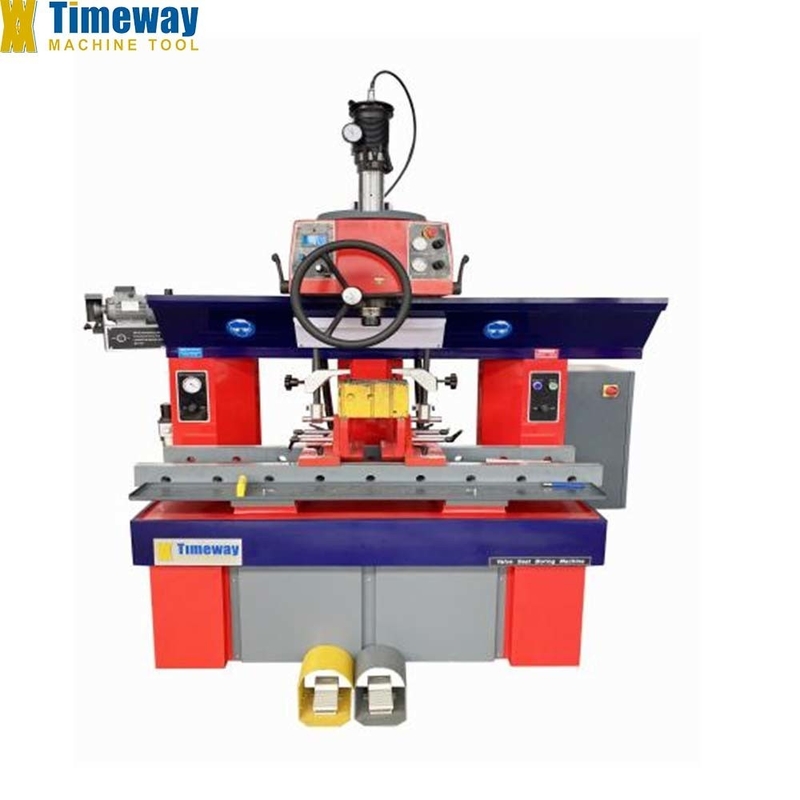

Valve Guide And Seat Boring Machine VS120 With High Availability And Weight KG 1750
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gear |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 1750 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Italy, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Mexico, Thailand, Argentina, South Korea, Uzbekistan, Tajikistan, Japan, Australia | Product Name: | Valve Seat Boring Machine |
| Application: | Machine Accessory | Feature: | High Precision |
| Type Of Drive System: | Air/Electric | Max. Boring Dia.: | 14-120 Mm |
| Power Of Spindle: | 2.2kw | Spindle Speed: | 20-1000rpm |
| Spindle Travel: | 200mm | Required Rated Air Pressure: | 6 Bar/87 PSI |
| Required Max. Air Flow: | 300 L/Min | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Features:
--Valve Seat Boring Machine Model: VS50, VS70,VS90, VS120 with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats. --Triple air-float patented centering system and powerful spindle with built-in motor.
--Designed for the valve seats from the smallest to the bigger diameter.
--This machine can repair any existing engine, from the micro-engine up to the big stationary engine, machining capacity from 14mm to 120mm.
--To reach the requirements of high precision machining for valve guides with a small diameter of 4mm.
Specification
SPECIFICATIN | VS50 | VS70 | VS90 | VS120 | |||
Type of drive system | Air / Electric | Air / Electric | Air / Electric | Air / Electric | |||
Max. length of cylinder head | unlimited | unlimited | unlimited | unlimited | |||
Max. width of cylinder head | 500 mm | 500 mm | 500 mm | 500 mm | |||
Max. height of cylinder head | 450 mm | 450 mm | 450 mm | 450 mm | |||
Clamper rotary angle | 45° / -15° | 45° / -15° | 45° / -15° | 45° / -15° | |||
Max. boring dia. | 16 – 50 mm | 14 – 70 mm | 14 – 90 mm | 14 – 120 mm | |||
Work head longitudinal floating travel | 900 mm | 930 mm | 1000 mm | 1300 mm | |||
Work head cross floating travel | 40 mm | 40 mm | 40 mm | 40 mm | |||
Sphere – cylinder travel | 9 mm | 9 mm | 9 mm | 9 mm | |||
Power of spindle | 1.5 kw | 1.8 kw | 2.2 kw | 2.2 kw | |||
Spindle speed | 100-1200rpm | 20-1000rpm | 20-1000rpm | 20-1000rpm | |||
Spindle travel | 200mm | 200mm | 200mm | 200mm | |||
Max. spindle incination | 5.5° | 5.5° | 5.5° | 5.5° | |||
Electric supply | 380V/50HZ/3PH or 220V/60HZ/3PH | 380V/50HZ/3PH or 220V/60HZ/3PH | |||||
Required rated air pressure | 6 Bar / 87 PSI | 6 Bar / 87 PSI | 6 Bar / 87 PSI | 6 Bar / 87 PSI | |||
Required max. air flow | 300 L / Min | 300 L / Min | 300 L / Min | 300 L / Min | |||
N.W. | 1260kg | 1550kg | 1680kg | 1750kg | |||
Machine dimensions( LxWxH) | 1450x1050x2170mm | 1750x1050x2170mm | 1750x1150x2200mm | 2060x1150x2200mm | |||

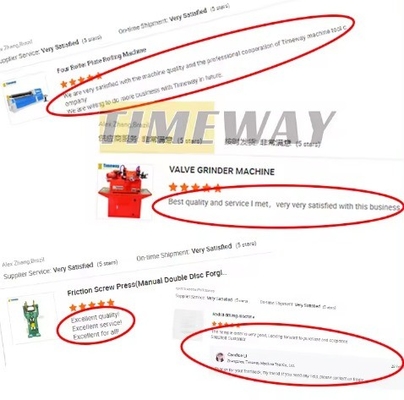

Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

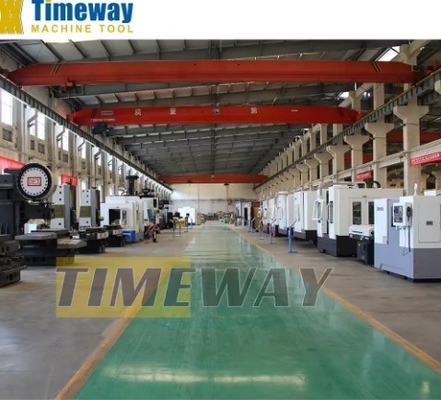

Factory Display：
