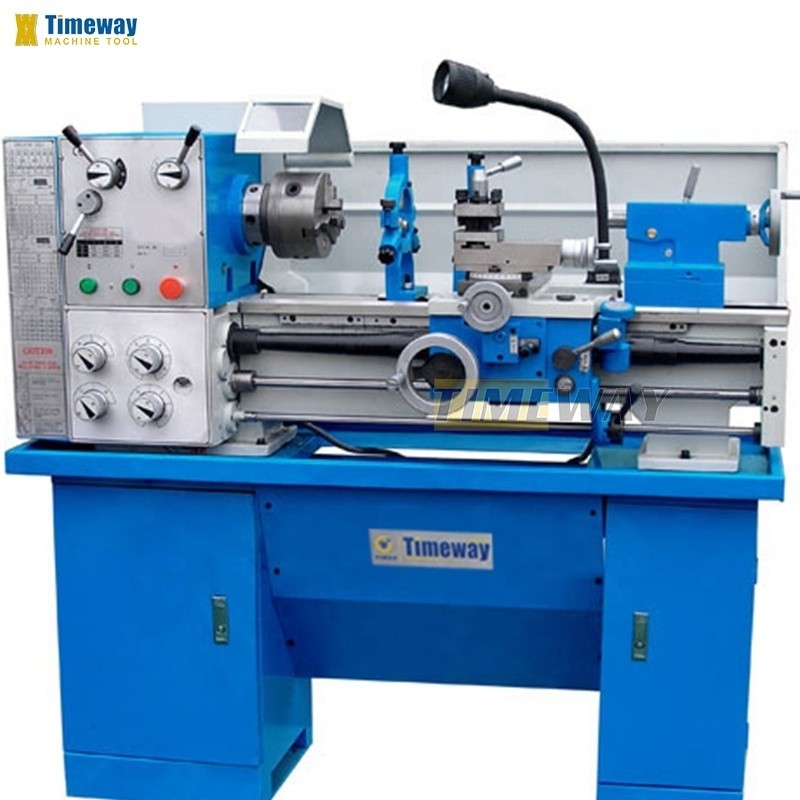

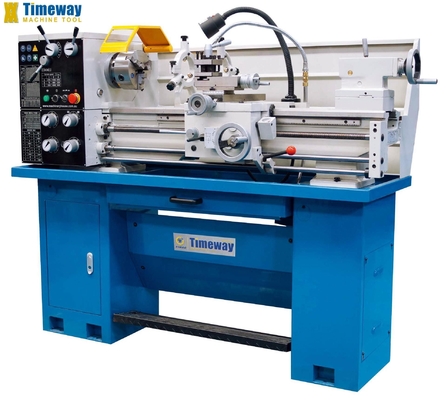

Horizontal Gap-bed Metal Lathe Machine with 590 KG Weight and Other Tool Post Stations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | T-1236A/910 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 910 | Range Of Spindle Speed(r.p.m): | 65 - 1440 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 178 |
| Type: | Horizontal | Dimension(L*W*H): | 1680x750x1400 Mm |
| Weight (KG): | 590 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 100kg |
| Spindle Taper: | MT5 | Cutting Torque: | 11.5 N.m |
| Rapid Feed Speed(mm/min): | 100 - 2100 Mm/min | Feed Speed(mm/min): | 65 - 1440 Mm/min |
| Tool Post Stations: | Other | Max. Swing Over Bed:: | 300 Mm |
| Max. Swing Over Cross Slide:: | 180 Mm | Max. Swing Over Gap:: | 430 Mm |
| Distance Between Centers:: | 910 Mm | Bed Width:: | 178 Mm |
| Spindle Nose:: | D1-4 | Spindle Bore:: | 38 Mm |
| Spindle Bore Taper:: | MT5# | Spindle Speed Range:: | 65-1440 Rpm,9 Steps |
| Longitudinal Feeds:: | 0.079-1.291mm/r | ||
Product Description
Product Description

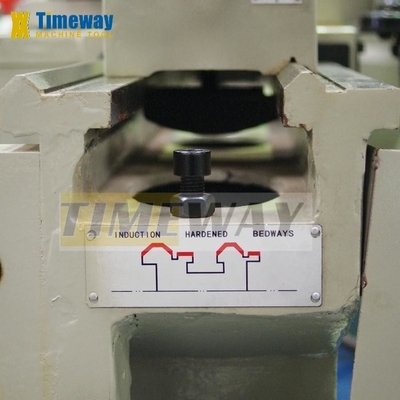

Precision ground and hardened bedways.
The spindle is equipped with precision roller bearins.
Headstock gears adopt high quality steel ground and hardened.
Specification
Specification | T-1236A | |
Max. swing over bed: | 300 mm | |
Max. swing over cross slide: | 180 mm | |
Max. swing over gap: | 430 mm | |
Distance between centers: | 910 mm | |
Bed width: | 178 mm | |
Spindle nose: | D1-4 | |
Spindle bore: | Φ38 mm | |
Spindle bore taper: | MT5# | |
Spindle speed range: | 65-1440 rpm,9 steps | |
Longitudinal feeds: | 0.079-1.291 mm/r | |
Cross feeds: | 0.017-0.276 mm/r | |
Max. cross-slide travel: | 160 mm | |
Max. top-slide travel: | 85 mm | |
Top-slide swivel range: | ±45° | |
Metric threads: | 0.4-7 mm | |
Whitworth threads: | 4-60 TPI | |
Whitworth threads: | MT3# | |
Tailstock quill travel: | 100 mm | |
Main motor power: | 1.1 kw | |
Machine weight: | 590 kg | |
Machine dimensions(L×W×H): | 1680×750×1400 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
