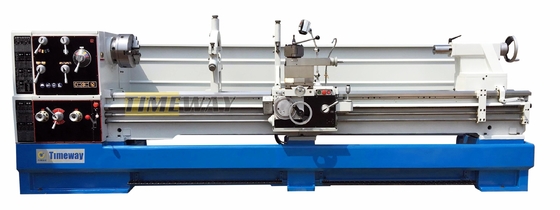

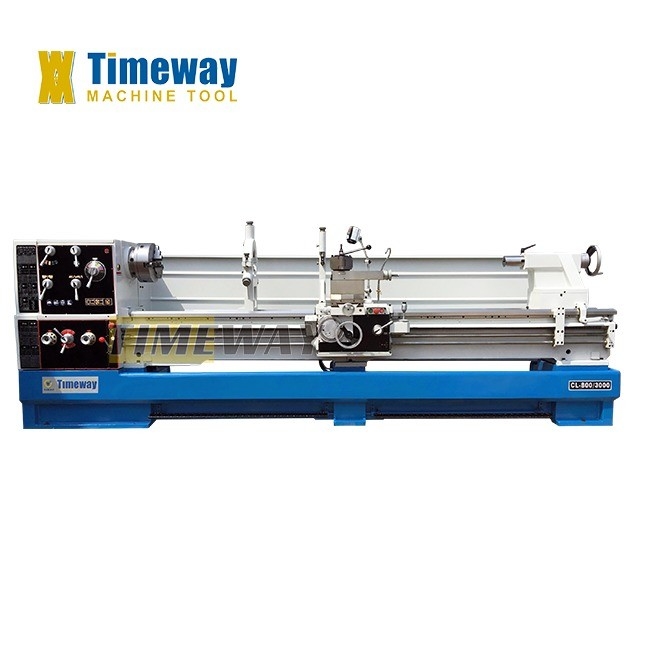

Conventional Gap-bed Lathe Machine CL-800 Your Partner in Metal Workpiece Processing
Product Details:
| Place of Origin: | China |
| Model Number: | CL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Other |
| Dimension(L*W*H): | 321 123 167 | Weight (KG): | 3175 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy, High Rigidity |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 2300 | Spindle Taper: | Metric 113 |
| Cutting Torque: | 66 N.m | Rapid Feed Speed(mm/min): | 25 - 1600 Mm/min |
| Feed Speed(mm/min): | 25 - 1600 Mm/min | Tool Post Stations: | 6 |
| Name: | Gap Bed Lathe Machine | Machine Type: | Gab Bed Lathe |
| After-sales Service Provided: | Online Services | Function: | Machining Metal |
| Precision: | Precision | Processing: | Metal Workpiece |
| CNC Or Not: | Nomal | Max. Swing Diameter: | 800mm |
| Distance Between Centers: | 1500/2000/3000mm | Application: | Material Processing |
Product Description
Product Description
Specification
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1035 |
Distance between centers | mm | 1500/ 2000/ 3000 |
Gap length | mm | 250 |
Bed width | mm | 400 |
Spindle nose | - | D1-8 |
Spindle bore | mm | 105 |
Spindle taper | - | Metric 113 |
Spindle speed range (steps) | rpm | 25-1600 |
Top slide travel | mm | 230 |
Cross slide travel | mm | 420 |
Tool section size | mm | 25x25 |
Leadscrew | - | 12mm or 2TPI |
Longitudinal feed range | mm/rev | 0.044-1.48 |
Cross feed range | mm/rev | 0.022-0.74 |
Metric threads range (kinds) | mm | 0.45-120 (54) |
Inch threads range (kinds) | TPI | 7/16-80 (54) |
Diametrical threads range (kinds) | DP | 7/8-160 (42) |
Module threads range (kinds) | MP | 0.25-60 (46) |
Tailstock quill diameter | mm | 90 |
Tailstock quill travel | mm | 235 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Coolant pump power | kw | 0.1 |
Machine dimensions (LxWxH) | cm | 321/371/471x123x167 |
Packing size (LxWxH) | cm | 324/374/474x114x191 |
Net weight | kg | 3175/3455/3820 |
Gross weight | kg | 3695/4005/4495 |
STANDARD ACCESSORIES:
3-jaw chuck, 4-jaw chuck, Face plate,
Dead center, Thread chasing dial,
Splash guard, Oil gun,
Work lamp, Cooling system, Steady rest
Follow rest, Change gears, Reducing sleeve,
Follow rest, Change gears, Reducing sleeve,
Foot brake, Leveling wedge,
Tool-box & tools, Operation manual.
OPTIONAL ACCESSORIES:

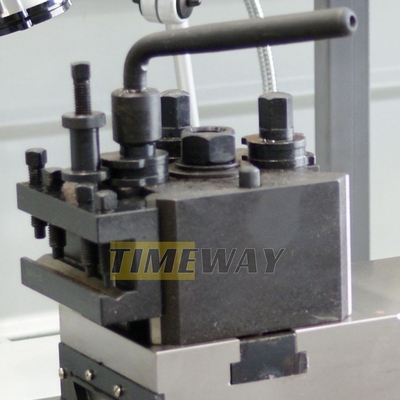

Quick change tool post,
2/3-axis digital readout,
Living center, Taper turning attachment,
Chuck guard, Leadscrew guard,
Tool post guard.
