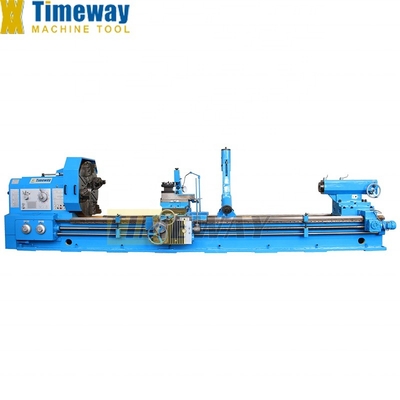

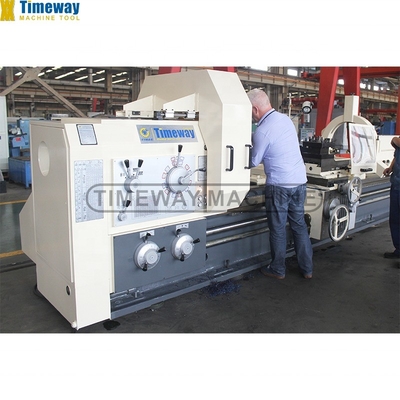

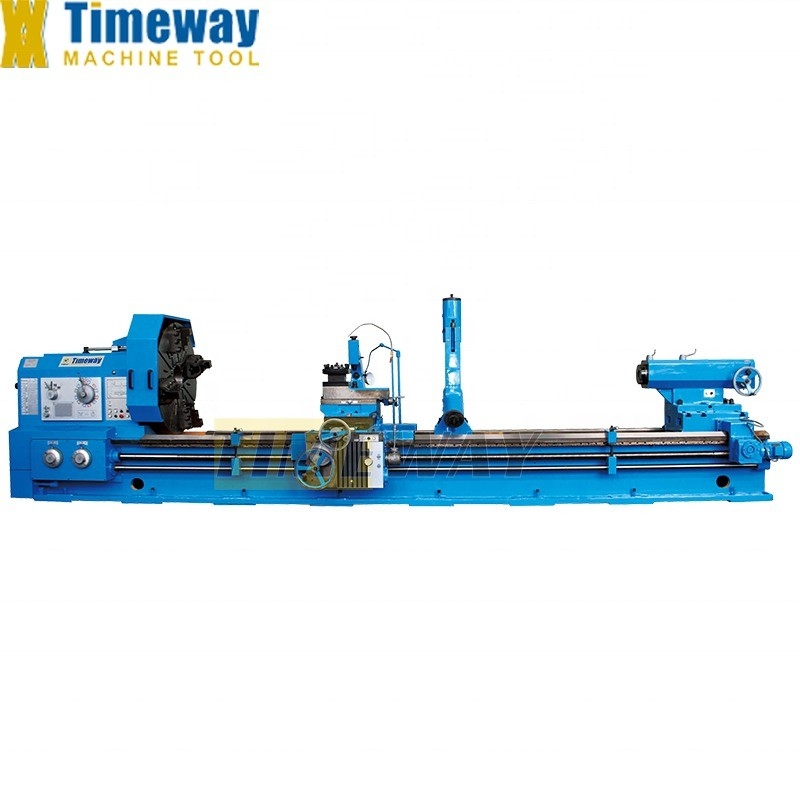

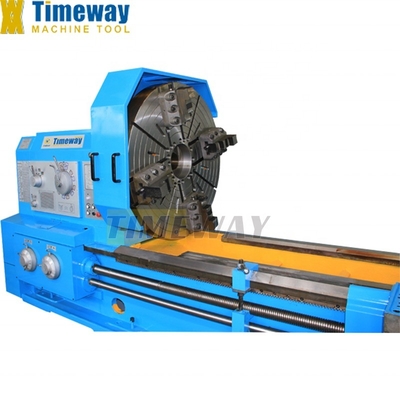

Nomal CNC AL-1250C Heavy-Duty Horizontal Lathe for Industrial Machining 6020x1995x2175mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 12000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 970 |
| Type: | Horizontal | Voltage: | As Customer Requirement |
| Dimension(L*W*H): | 6020x1995x2175mm | Weight (KG): | 7000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level, High-accuracy, High Productivity, Flexible Manufacturing, High Rigidity, Low Maintenance Cost |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 10000/12000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 4500 N.m | Rapid Feed Speed(mm/min): | 0 - 3740 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Tool Post Stations: | 8, 4, 6 |
| Name: | Universal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Function: | Metal Turning |
| CNC Or Not: | Nomal | Processing: | Metal Working Lathe Machine |
| Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000 /- | Spindle Hole: | 130mm |
| Color: | Standard | Precision: | High Precision High Accuracy |
Product Description
Products Description
AL-1250C
Heavy Duty Horizontal Lathe:
SPECIFICATION | UNIT | AL-1250C |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 885 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 970 |
Max. cutting force | N | 45000 |
Loading capacity | kg | 10000 (opt: 12000) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21,Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Cross slide travel | mm | 650 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Tool post swivel angle | ° | ±90° |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 220 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- |
Machine width | mm | 1995 |
Machine height | mm | 2175 |
Machine height | mm | 1622 |
