220/380V Voltage Mini Lathe Horizontal Gap Bed Lathe with 1930*760*1580mm Dimensions
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | T-1440A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,689.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 70 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Voltage: | 220/380V | Dimension(L*W*H): | 1930*760*1580mm |
| Weight (KG): | 645 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 200 |
| Spindle Taper: | ISO40 | Cutting Torque: | 345 N.m |
| Rapid Feed Speed(mm/min): | 0 - 45 Mm/min | Feed Speed(mm/min): | 0 - 800 Mm/min |
| Tool Post Stations: | 4 | Machine Type: | Horizontal Gap Bed Lathe |
| Keyword: | Gap Bed Lathe | After-sales Service Provided: | Provided |
| Max. Swing Over Bed: | 356 Mm | Max. Swing Over Cross Slide: | 224 Mm |
| Distance Between Centers: | 1000 Mm | Spindle Bore: | 38 Mm |
| Spindle Speed Range: | 70-2000 Rpm | Main Motor Power: | 1.5 Kw |
| Machine Weight: | 645 Kg | ||
Product Description
Products Description

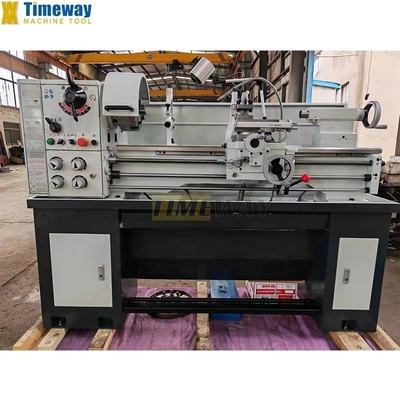

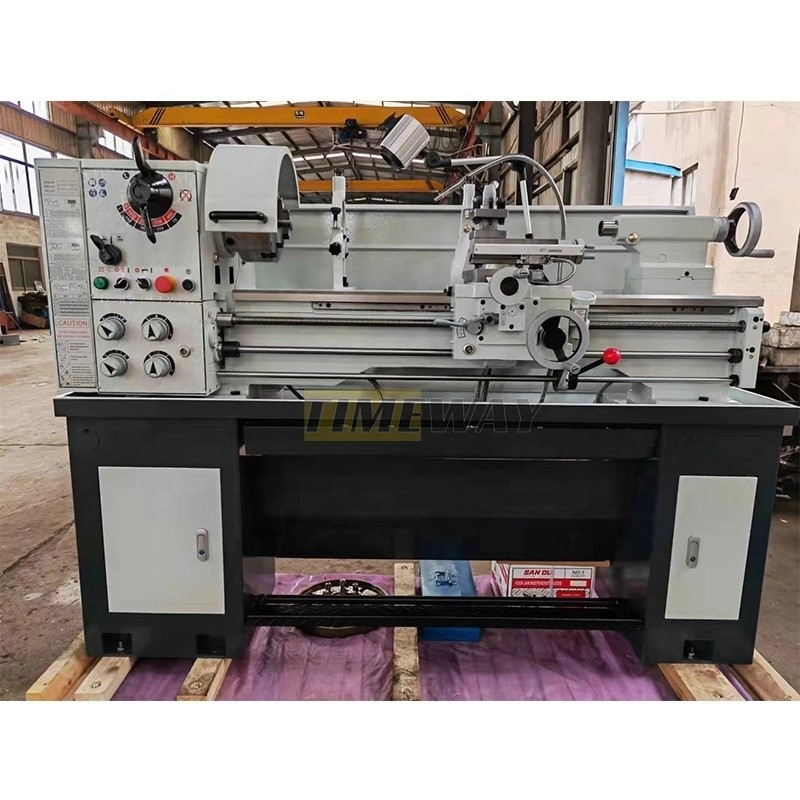

Horizontal Gap Bed Lathe T-1440A
Specification | Unit | T-1440A |
Max. swing over bed | mm | Φ356 |
Max. swing over cross slide | mm | Φ224 |
Max. swing over gap | mm | Φ502 |
Distance between centers | mm | 1000 |
Bed width | mm | 187 |
Valid length of gap | mm | 210 |
Spindle nose | - | D1-4 |
Spindle bore | mm | Φ38 |
Spindle bore taper | - | MT5# |
Spindle speed range | rpm | 70-2000 (8steps) |
Longitudinal feeds | mm/r | 0.052-1.392 |
Cross feeds | mm/r | 0.014-0.38 |
Max. cross-slide travel | mm | 170 |
Max. top-slide travel | mm | 95 |
Top-slide swivel range | ° | ±45° |
Metric threads | mm | 0.4-7 |
Whitworth threads | TPI | 4-56 |
Tailstock quill taper | - | MT3# |
Tailstock quill travel | mm | 100 |
Main motor power | kw | 1.5 |
Packing size (L×W×H) | mm | 1930×760×1580 |
Machine weight | kg | 645 |
3 jaw chuck 4 jaw chuck Face plate Steady rest Follow rest Dead center Foot brake Reduction sleeve 4 way tool post Splash guard | 2/3-axes DRO Quick change tool holder Live center Drill chuck |

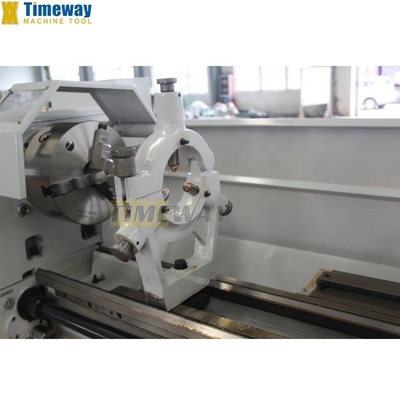

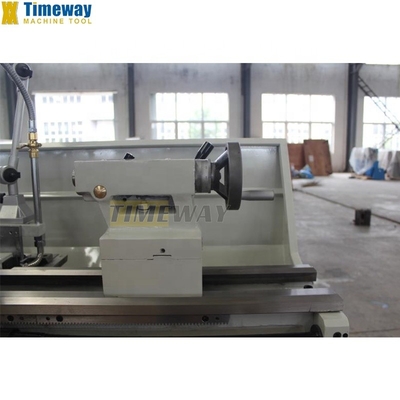

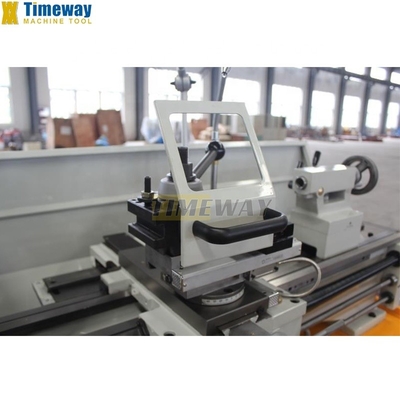

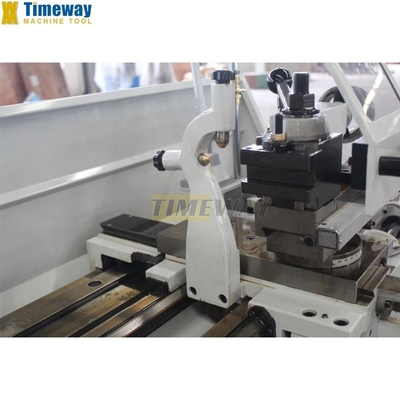

Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
