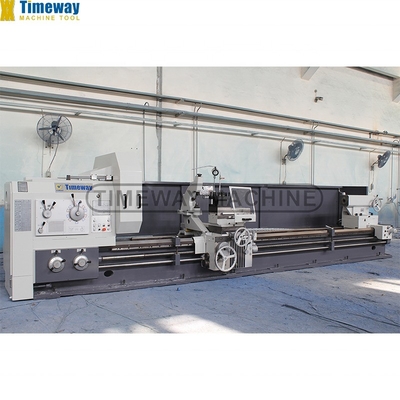

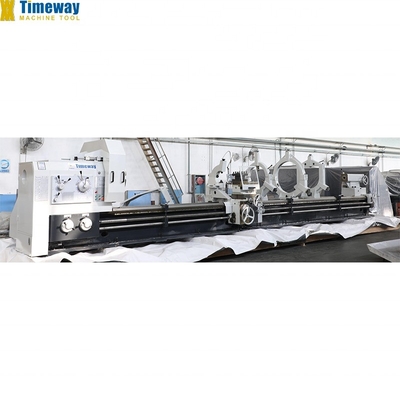

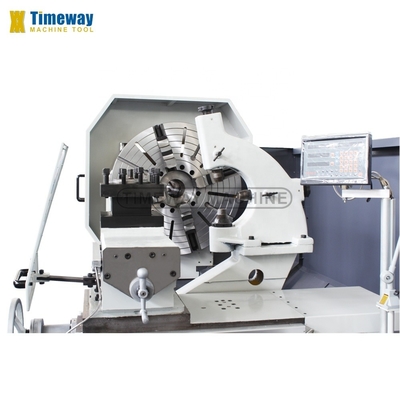

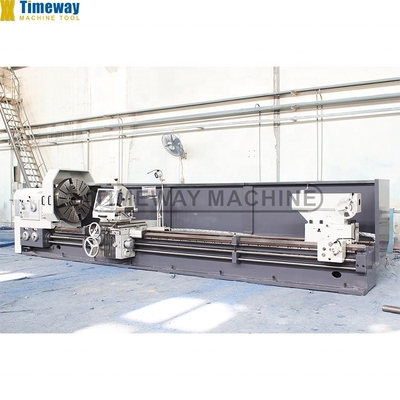

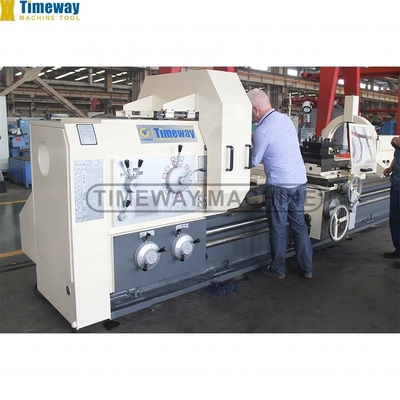

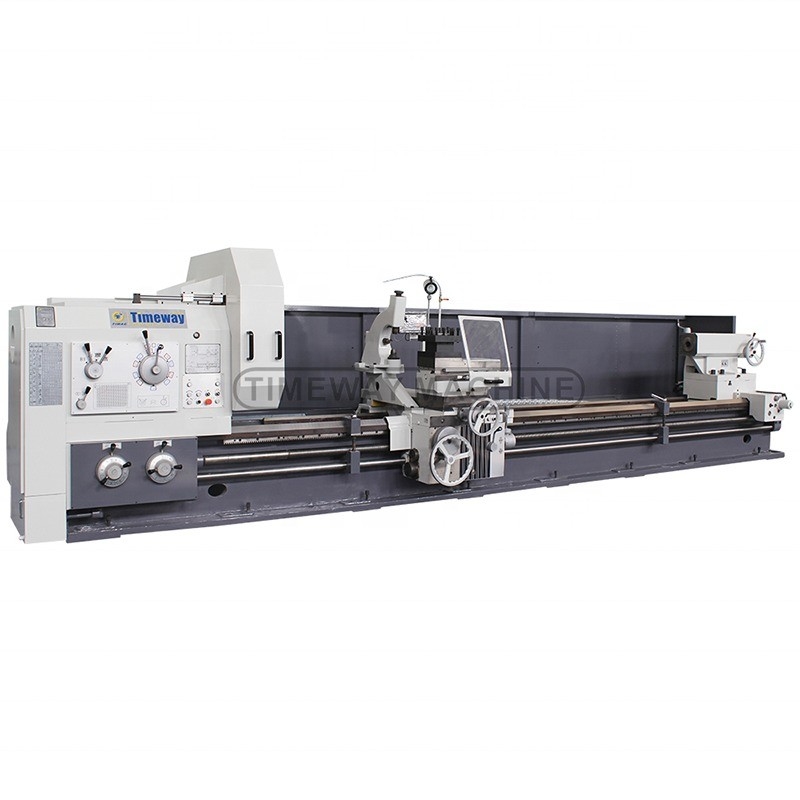

AL-1250B Heavy Duty Turning Machine Perfect Combination of Reliability and Durability
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 12000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Voltage: | As Customer Requirement |
| Dimension(L*W*H): | 4800x2150x1700mm | Weight (KG): | 5000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 3000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 1000 N.m | Rapid Feed Speed(mm/min): | 0 - 3730 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Tool Post Stations: | 8, 4, 6 |
| Name: | Universal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| After-sales Service Provided: | Online Support | Keyword: | Metal Turning Lathe |
| Function: | Metal Turning | CNC Or Not: | Nomal |
| Processing: | Metal Working Lathe Machine | Distance Between Centers: | 1500/2000/3000/4000/5000/6000/8000/10000/12000 /- |
| Spindle Hole: | 130mm | Color: | Standard |
Product Description
Products Description
AL-1250B
Heavy Duty Horizontal Lathe:
Specification | unit | AL-1250B |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 865 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800 |
Bed width | mm | 755 |
Loading capacity | kg | 6000(opt: 8000) |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 48 |
Tool post swivel angle | ±90° | |
Cross slide travel | mm | 580 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100 |
Machine width | mm | 2150 |
Machine height | mm | 1825 |
Machine height | mm | 1622 |
Positive Comments From Customers
Shipping
Exhibitions
TIMEWAY at EMO Hannover
TIMEWAY machine participates in the EMO Hannover exhibition every time, which is Europe's leading machine tool and metal processing technology exhibition. At the exhibition, TIMEWAY machine demonstrated its advanced machine tools and processing technology, as well as comprehensive solutions for different industries and application fields. These solutions include precision machining and production of high-quality metal parts for the automotive, aerospace, energy, and other sectors.
TIMEWAY at CIMT
CIMT is held in China, the hometown of TIMEWAY machine, so TIMEWAY machine will participate in the CIMT exhibition every time. This is the China International Machine Tool Exhibition and one of the largest machine tool exhibitions in Asia. At the exhibition, TIMEWAY displayed its diversified machine tool products, including CNC machine tools, machining centers, gear processing machine tools, precision measuring equipment, etc.
TIMEWAY at Metalloobrabotka
TIMEWAY participated in the Metalloobrabotka exhibition held in Moscow, which is a professional exhibition for the metal processing and machine tool industry in Russia and surrounding areas. At the exhibition, TIMEWAY's booth attracted the attention of many exhibitors and industry experts. The company's professional team had in-depth exchanges with exhibitors and visitors from Russia and other countries and regions, sharing valuable experience and the latest industry trends. In addition, TIMEWAY machine has also participated in exhibitions in many countries and regions.
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
