High Precision Load Bearing 6000kg Semi-Automatic Tornos for Horizontal Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AL-1250Bx5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Voltage: | 220V~460V |
| Dimension(L*W*H): | 8100x2150x1825 Mm | Weight (KG): | 14000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Rigidity |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 3740 Mm/min |
| Feed Speed(mm/min): | 0 - 1870 Mm/min | Tool Post Stations: | 8, 4, 6, 12 |
| Working Accuracy: | IT6 | Surface Roughness: | Ra1.6um |
| Gap Of Connection Surfaces: | Less Than 0.04mm | Tornos Level: | Less Than 0.04/1000mm |
| Max. Swing Over Bed: | 1250mm | Max. Swing Over Cross Slide: | 865mm |
| Load Bearing: | 6000kg | Longitudinal Rapid Feed Speed: | 3740mm/min |
| Cross Rapid Feed Speed: | 1870mm/min | Top Tool-post Rapid Feed Speed: | 935mm/min |
Product Description
Products Description
Features：

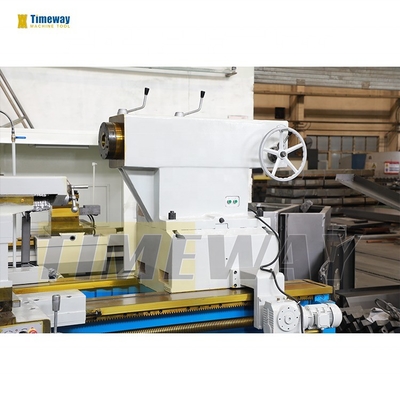

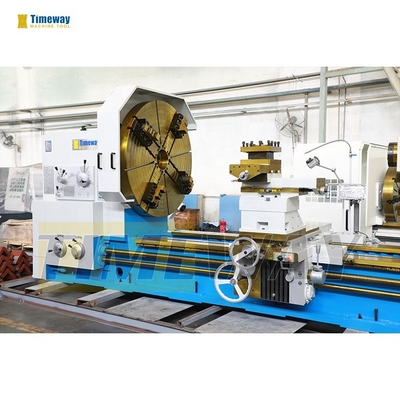

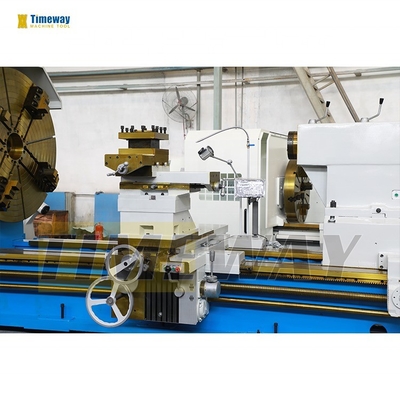

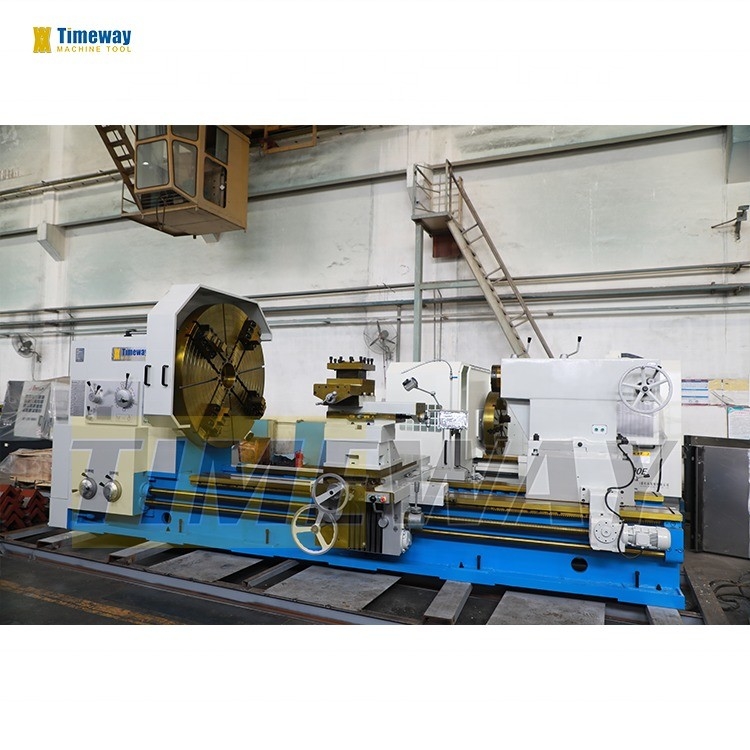

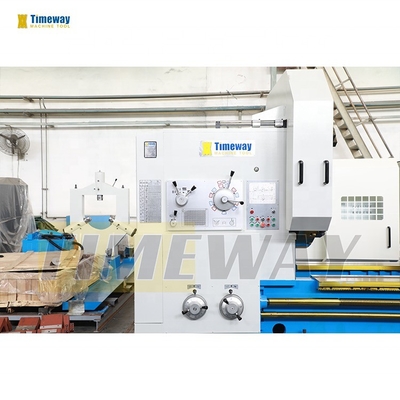

Horizontal lathe is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter. Mature structure: The machine tool is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.High rigidity and high precision spindle: The machine tool spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The spindle adopts precision rolling bearing combination and three supporting structures. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain relatively stable accuracy during long-term operation.Spindle standard through the hole for the Ф100mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better. The machine tool can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed. High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.The machine tool is a heavy-duty machine tool with a maximum load-bearing capacity of 16 tons. It adopts wide rectangular guide rails with good stability and rigidity, bed width is 1100mm. The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.The machine tool standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.
Specification | Unit | AL-2000 |
Max. swing over bed | mm | 2000 |
Max. swing over cross slide | mm | 1650 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Loading capacity | tons | 16 |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance from spindle center to tool base | mm | 53 |
Tool post swivel angle | ° | ±90° |
Cross slide travel | mm | 900 |
Top slide travel | mm | 360 |
Tool section size | mm | 50x50 |
Tool post feed per gar | mm | 0.05 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 30 |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
Machine width | mm | 2430 |
Machine height | mm | 2580 |
· 4-jaw independent chuck · Steady rest (over 3M length) · Follow rest (over 3M length) · Manual moving tailstock · Dead center of tailstock · 4-station tool post · Cooling system · Work lamp · Tools & tool-box · Leveling wedge and bolts · Operation manual (English) | · Face plate · 2 or 3-axis digital indicator · Electrical moving tailstock · Chuck guard · Tool-post guard · Rear splash guard · Quick changing tool post · Grinding attachment |
