Heavy Duty Horizontal Lathe Machine with Range of Spindle Speed r.p.m 3.15 315 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac TIMEWAY |
| Model Number: | AL-1600Bx10M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $170,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 10000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 755 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 13100x2150x2150mm |
| Weight (KG): | 25000 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Guideway Type: | V-flat Type Rails |
| Processing Material: | Metal | Chuck Diameter: | 1250mm |
| Rang Of Inch Threads: | 28-1/4TPI (31) | Rang Of Module Threads: | 0.5-60 (45) |
| Rang Of Diametrical Threads: | 1/2-56 (38) | Tool Section Size: | 45x45mm |
| Spindle Bore: | 130mm | Max. Swing Over Bed: | 1640mm |
| Max. Turning Length: | 11800mm | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Russia, Morocco, Chile, Algeria, Romania | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Other, Pressure Vessel |
| Max. Turned Length (mm): | 9800 Mm | Year: | 2020 |
| Port: | Tianjin Or Shanghai Port | ||
Product Description
Product Description

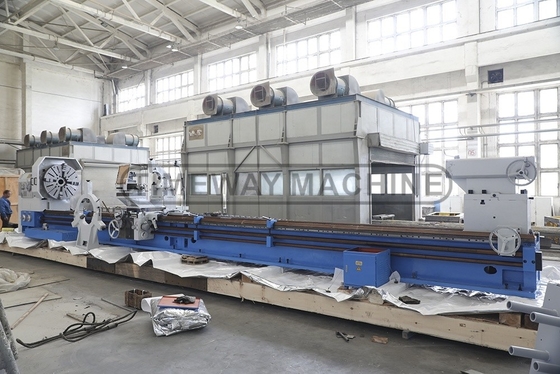

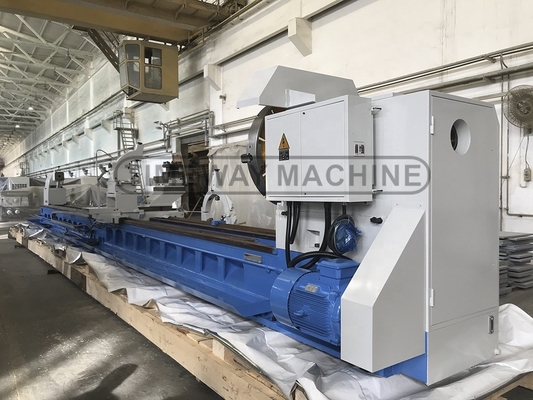

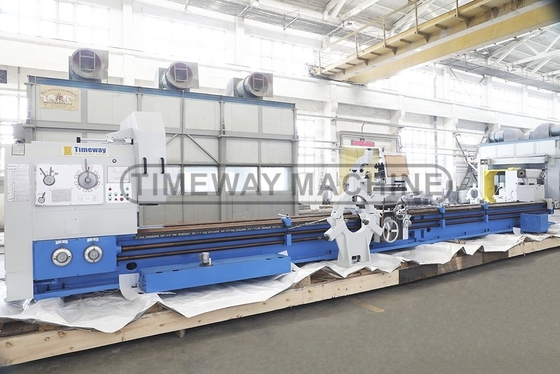

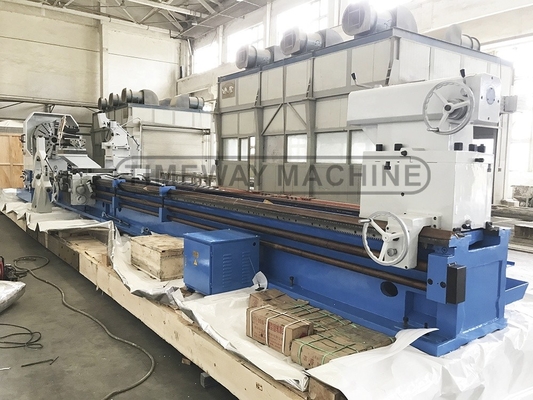

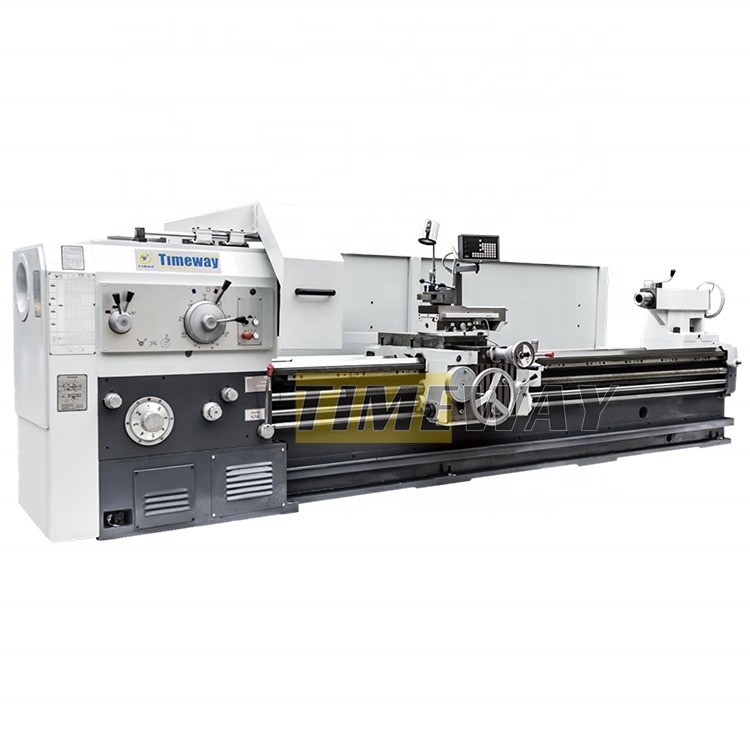

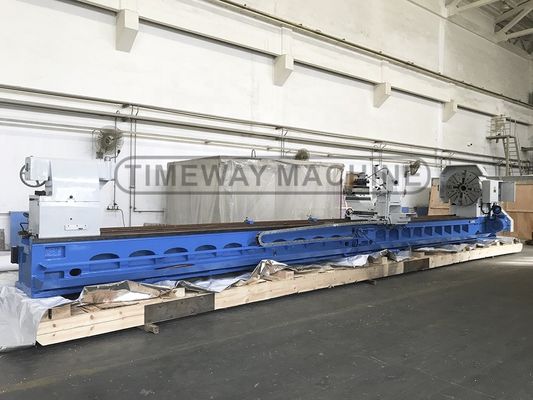

heavy duty horizontal lathe
* This servies Horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous
metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal
and external threads, such as metrical, inch, modulus and diametrical.
* The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal
and external threads, such as metrical, inch, modulus and diametrical.
* The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01mm, the cylindrical degree error is not more than 0.03mm in the measuring length of 300mm.
Feature
* High rigidity one piece type bed with 755mm bed span, which ensures the machine has strong stability and high precision, and the loading capacity between centers can be up to 6000kg, and 8000kg as optional.
* Spindle standard through hole diameter is Φ130mm, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
* The machine can be used to cut the short conical surface by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed together.
* High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
* According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.
* Spindle standard through hole diameter is Φ130mm, and adopt A2-15 spindle nose connection type, runout accuracy of spindle is better.
* The machine can be used to cut the short conical surface by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed together.
* High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.
* According to machining need, customers can choose electric moving tailstock, reduce operator labor intensity and improve work efficiency.
Specification
Specification | Unit | AL-1600B |
Max. swing over bed | mm | 1640 |
Max. swing over cross slide | mm | 1250 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 1300/1800/2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 755 |
Loading capacity | kg | 6000 (opt: 8000) |
Spindle nose | - | A2-15 (8xM22) |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, CW: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56/56 |
Feed range | mm | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Main motor power | kw | 22 |
Machine length | mm | 4600/5100/6100/7100/8100/9100/11100/13100/15100/- |
Machine width | mm | 2150 |
Machine height | mm | 2150 |
Standard accessories:
* 4-jaw independent chuck
* Steady rest (over 3M length)
* Follow rest (over 3M length)
* Manual moving tailstock
* Dead center of tailstock
* 4-station tool post
* Cooling system
* Work lamp
* Tools & tool-box
* Leveling wedge and bolts
* Operation manual (English)
* Steady rest (over 3M length)
* Follow rest (over 3M length)
* Manual moving tailstock
* Dead center of tailstock
* 4-station tool post
* Cooling system
* Work lamp
* Tools & tool-box
* Leveling wedge and bolts
* Operation manual (English)
Optional accessaries:
* Face plate
* 2 or 3-axis digital indicator
* Chuck guard
* Tool-post guard
* Rear splash guard
* Quick changing tool post
* Grinding attachment
* 2 or 3-axis digital indicator
* Chuck guard
* Tool-post guard
* Rear splash guard
* Quick changing tool post
* Grinding attachment
