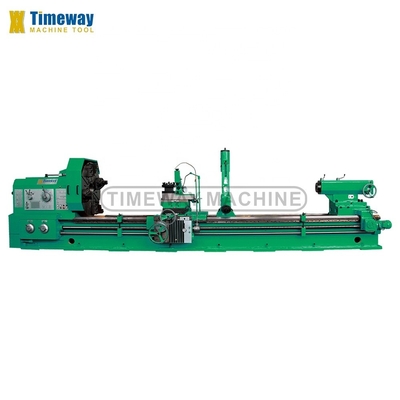

10tons Horizontal Heavy Duty Metal Lathe Machine for External Machining Operations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1600Cx5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or plywood case |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 970 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V-460V | Dimension(L*W*H): | 8020x1995x2525mm |
| Weight (KG): | 18000 KG | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Application: | Metal Cutting |
| Function: | Machining External, Internal, End-surface, Threads, Etc. | Accuracy: | IT6 |
| Roughness: | Ra1.6um | Max. Weight Of Workpiece: | 10tons (opt: 12tons) |
| Customized Cutting Length: | 3-20M | Color: | Custom-made |
| Rapid Feed Device: | Standard | Motorized Tailstock: | Standard |
| DRO: | Optional | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Energy & Mining |
| Showroom Location: | Canada, United States, Italy, Germany | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel |
| Max. Turned Length (mm): | 4800 Mm | Year: | 2020 |
| Port: | China Port | ||
Product Description

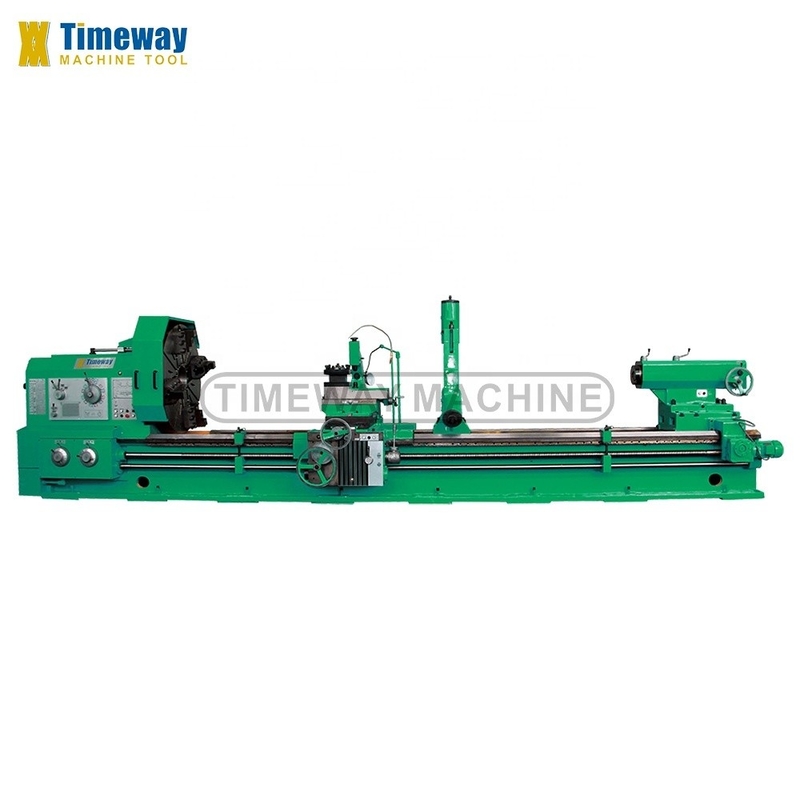

Heavy Duty Horizontal Lathe Machine For Sale
(AL-1250C/AL-1400C/AL-1600C/AL-1800C)
Features :
1.This series heavy duty lathe adopts 970mm wide induction hardened and ground bed guide ways, so of
excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.
2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with
Teflon belt coated. Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical
surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized
turning could be done by top slide combined with longitudinal feed. Further more, these machines can
also carry out drilling, trepanning and boring processes, etc.
Parameter :
| Specification | Al-1250C | AL-1400C | AL-1600C | AL-1800C | ||
| Capacity | Swing over bed | 1250 | 1400 | 1600 | 1800 | |
| Swing over cross slide | 865 | 1010 | 1210 | 1280 | ||
| Max.length of workpiece | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | |||||
| Max.length of turning | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | |||||
| Width of bed | 970 | |||||
| Max.torque of spindle | 12590 | |||||
| Max.cutting force | 45000 | |||||
| Max.force of logitudinal | 18000 | |||||
| Max.weight of workpiece | 10000 | |||||
| Spindle | Dia.of spindle bore | 130 | ||||
| Taper of spindle | metric140 | |||||
| No.of forward turning | 21 kinds | |||||
| No.of reverse turning | 12 kinds | |||||
| Spindle speed | Forward | 3.15-315 | ||||
| Reverse | 3.5-291 | |||||
| Feed motion | No.of feeds per revolution | (Longitudinal/tranverse)56/56 | ||||
| Feed per revolution | Longutudinal | 0.1-12(0.004"-0.473" | ||||
| Tranverse | 0.05-6(0.002"-0.236") | |||||
| Upper tool-post | 0.025-3(0.001"-0.118") | |||||
| No.and range of metric thread | 44kinds:1-120 | |||||
| No.and range of inch thread | 31kinds:28-1/4 | |||||
| No.and range of module thread | 45kinds:0.5-60 | |||||
| No.and range of diametrical thread | 38kinds:1/2-56 | |||||
| Tool post | Size of tool shank | 45×45 | ||||
| swing range of tool post | ±90º | |||||
| Max.travel of cross slide | 650 | |||||
| Max.travel of top slide | 300 | |||||
| Rapid of tool post | Longitudianl:3740 Tranverse:1870 Top slide:935 | |||||
| Tailstock | Dia.of tailstock quill | 220 | ||||
| Travel of tailstock quill | 300 | |||||
| Taper hole of tailstock quill | Morse No.6# | |||||
| Others | Main motor power | 22 | ||||
| Power of tool post rapid move motor | 1.5 | |||||
| Power of cooling pump | 0.15 | |||||
| Overall | Length | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | ||||
| Width | 1995 | |||||
| Height | 2175 | 2325 | 2525 | 2725 | ||
Standard Accessories:
4 jaw chuck, Steady rest, Follow rest, Dead center, Oil gun, Coolant system, Working light, General tools, Foundation bolts, Operation manual(English edition)
Optional Accessories:
2/3-axes DRO, Taper turning attachment, Grinding attachment.
Main structures:

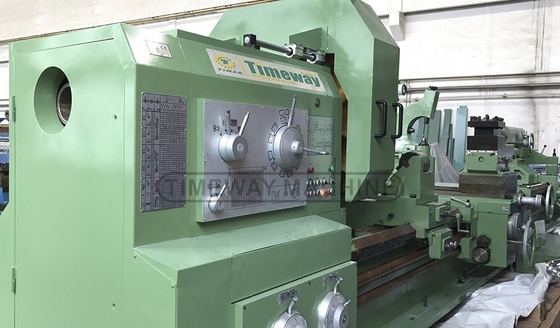

| Headstock & Chuck
⇒ The heavy duty lathe gain wide-range spindle speed of 3.15-315 rpm with 33 speeds. ⇒ The heavy duty lathe are equipped with 4-jaw heavy lathe chuck, strong clamping force. |

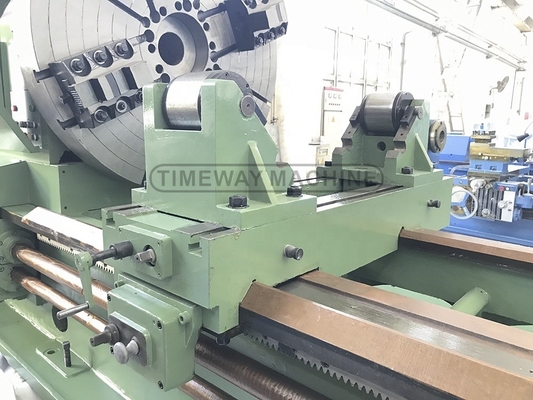

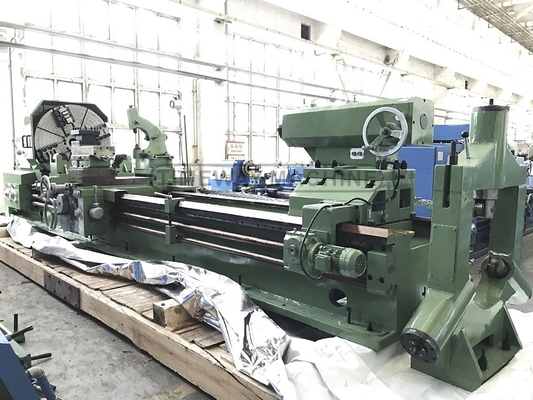

| Open-type Steady Rest ⇒ Roller support (open-type steady rest) is standard configuration, make sure cutting bigger parts. ⇒ The roller support move right and left on the rails of metal lathe through gear and rack, reduce labor intensity. |
| Closed-type Steady Rest ⇒ The steady rest adopts three-point supporting structure, positioning accuracy is higher. |

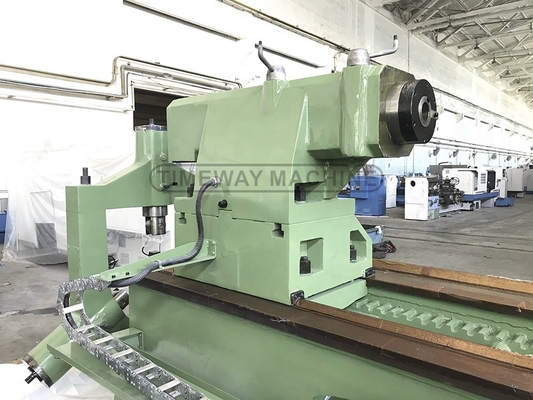

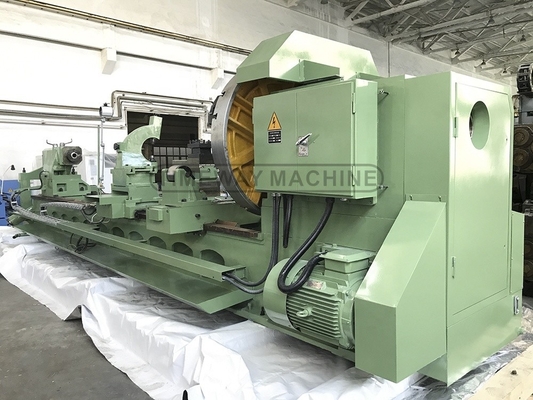

| Motorized Tailstock ⇒ Horizontal lathe are equipped with motorized tailstock, movement simple and easy. ⇒ The sleeve of tailstock can rough feed and fine feed. |
Paint Spraying and Package
The client can choose the color of the metal lathe to painting according to RAL colour. Our all lathes are packed with vacuum pakcages and wooden case for safety shipping.
