accuracy Engine Lathe Machine with Voltage Options to Meet Customer Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac, Timeway |
| Model Number: | T-1640A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case (fumigated) |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 35 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5 | Voltage: | As Customer's Request |
| Dimension(L*W*H): | 1930x860x1550mm | Weight (KG): | 700 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year After Delivery | Product Type: | Engine Lathe Machine |
| Width Of Bed: | 218mm | Max. Swing Diameter: | 400mm |
| Power(W): | 1.5 KW | Swing In Length Of Gap: | 210mm |
| Center Distance: | 1000mm | After-sales Service Provided: | Online Support |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Retail, Energy & Mining, Advertising Company |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, South Africa, Australia | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Spindle Bore(mm): | 51 | Max. Turned Length (mm): | 1000 Mm |
Product Description
Engine Lathe Machine T-1640A
Features:
Precision ground and hardened bedways, ensure rigidity and stability of overall machine, increase service life.
The spindle is equipped with precision roller bearings, reduce axial and radial runout of spindle and lower noise.
Headstock gears adopt high quality steel ground and hardened, guarantee transmission accuracy.
Removable gap is provided for larger working range, especially suitable for end face cutting.
Easy operating gear box has various feeds and threads cutting function.
Oil-bath lubricated main drive and feed gears, reducing temperature rise of spindle and gears, thus realize stability of machining accuracy and low transmission noise.
Interlocking feature prevents simultaneous advance of leadscrew and feed shaft.
Manual central lubrication and closed cooling circuit is included.
Different length of machine tools are available.
Parameters:
| Specification | T-1640A |
| Swing over bed | 400mm |
| Swing over cross slide | 252mm |
| Swing in gap diameter | 540mm |
| Swing in length of gap | 210mm |
| Center distance | 1000mm |
| Bed width | 218mm |
| Spindle bore | 51mm |
| Spindle nose | D1-5 |
| Taper in sleeve | NO.MT3 |
| Speeds number | 8 or 16(pole changeable motor) |
| Speeds range | 70-2000r.p.m.or 35-2000r.p.m.(2 speed motor) |
| Cross slide travel | 170mm |
| Compound rest travel | 95mm |
| Lead screw thread | 8T.P.I. or 3mm or 4mm |
| Feed rod diameter | 19mm |
| Cutting tool max section | 16x16mm |
| Threads imperial pitches | 36 Nos.8-112 T.P.I. or 34 Nos.4-56T.P.I |
| Threads metric pitches | 28 Nos.0.2-5mm pitch or 26 Nos.0.4-7mm pitch |
| Longitudinal feeds imperial | 36 Nos.0.0019-0.0273"/Rev.or 32 Nos.0.002-0.548"/Rev |
| Longitudinal feeds metric | 36 Nos.0.050-0.696"/Rev.or 32 Nos.0.052-0.392mm/Rev |
| Cross feeds imperial | 36 Nos.0.0006-0.0094"/Rev.or 32 Nos.0.007-0.0187"/Rev |
| Cross feeds metric | 36 Nos.0.013-0.188"/Rev.or 32 Nos.0.014-0.380mm/Rev |
| Quill diameter | 32mm(1-1/4") |
| Quill travel | 100mm(3-15/16") |
| Quill taper | NO. MT3 |
| Main motor | 1.5KW |
| Packing size (LxWxH) | 1930x860x1550mm |
| NW/GW | 600/700kg |
Standard Accessories:

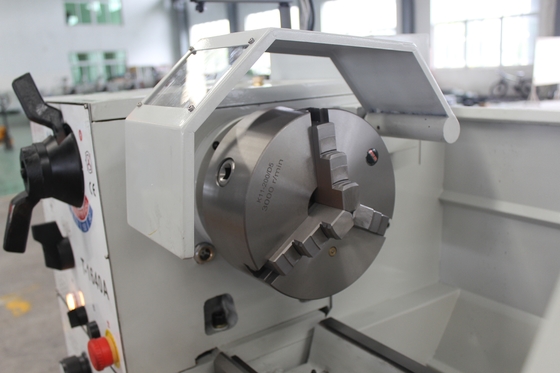

n Three jaw chuck
n Dead center
n Thread chasing dial
n Chip tray
n Work light
n Cooling system
n Rear splash guard
n Tool box and tools
n Operator manual
Optional Accessories:
n Foot brake pedal
n Driving plate
n Taper turning attachment
n Drill chuck
n Quick change tool holder
n Steady rest
n Follow rest
n 2-axis/3-axis position indicator
n Four jaw chuck
n Variable speed
n Chuck guard
n Reducing sleeves
