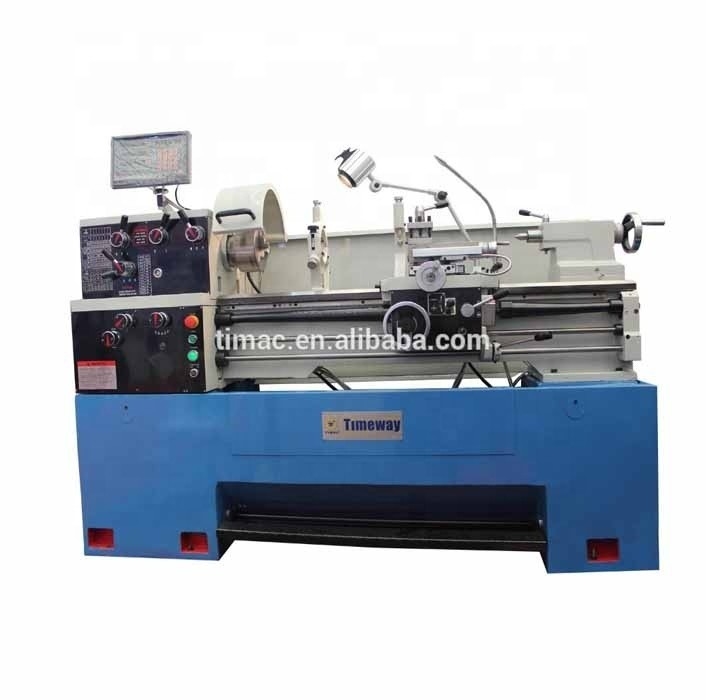

T-1440W 356mm Swing Horizontal Lathe Machine for Versatile Metal Turning Operations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | T-1440W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 40 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 1.5kw/2..4kw | Voltage: | As Customers' Requirement |
| Dimension(L*W*H): | 1940x760x1520mm | Weight (KG): | 1200 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Max. Swing Diameter Over Cross Slide: | 210mm |
| Max. Swing Diameter Over Gap: | 508mm | Spindle Bore Taper: | MT5# |
| Machine Type: | Horizontal Engine Lathe | Max. Swing Diameter: | 356mm |
| Weight: | 1200kg | After-sales Service Provided: | Online Support |
| Max. Swing Diameter (mm): | 356 | Condition: | New |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Energy & Mining | Showroom Location: | Canada, Turkey, United States, Italy, Mexico, Spain, Australia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 1000 Mm |
| Spindle Bore(mm): | 40 | Port: | China Port |
Product Description
Horizontal Engine Lathe Machine
T-1236A T-1340A T-1440A T-1340B T-1440B T-1440W
Feature:
- Precision ground and supersonic frequency hardened bed ways.
- The lathe machine spindle is supported with precision roller bearing;
- Headstock gears are made of high quality steel, ground and hardened;
- Removable gap is provided for larger diameter work;
- Easy operating gear box has various feeds and thread cutting functionCompany Information
Technical Parameter:
| Specification | Unit | T- 1236A | T-1340A | T-1440A | T-1340B | T- 1440B | T- 1440W | |
| Capacity | Center height | mm | 150 | 165 | 178 | 150 | 178 | 178 |
| Max.swing over bed | mm | 300 | 330 | 356 | 300 | 356 | 356 | |
| Max.swing over cross slide | mm | 180 | 198 | 224 | 198 | 220 | 210 | |
| Max.swing in gap | mm | 430 | 450 | 476 | 476 | 506 | 508 | |
| Distance between centers | mm | 910 | 1000 | |||||
| Spindle | Spindle nose |
| D4 | |||||
| Spindle bore | mm | 38 | 40 | |||||
| Spindle bore taper |
| M.T.#5 | ||||||
| Spindle speed | rpm | 65-1810 (8steps) | 70-2000 (8 steps) | 45-1800 (16steps) | 40-1800 (12steps) | |||
| Feed | Longitudinal feed range | mm/rev | 0.079-1.291 | 0.078-1.044 | 0.067-1.019 | 0.043-0.653 | ||
| Cross feed range | mm/rev | 0.017-0.276 | 0.22-0.298 | 0.018-0.275 | 0.015-0.220 | |||
| Threads | Metric threads | mm | 0.4-7 | 0.45-10 | 0.45-10 | 0.4-7 | ||
| Inch threads | T.P.I | 4-60 | 21/4-40 | 31/2-80 | 4-112 | |||
| Tailstock | Tailstock bore taper |
| M.T.#3 | |||||
| Other | Main motor | kw | 1.5 | 1.5/2.4 | ||||
| Net weight/ Gross weight | kg | 540/590 | 560/600 | 580/620 | 495/595 | 750/880 | 1200/1300 | |
| Packing dimension | mm | 1680x750x1420 | 1940x760x1520 | |||||
Standard Accessories:
- 3 jaw chuck
- 4 jaw chuck
- Face plate
- Steady rest
- Follow rest
- Oil gun
- Dead center
- Changing gears
- Reduction sleeve
- Chasing dial indicator
- Working light
- Operatoe manual
Optional accessories:
- Coolant system
- Foot brake system
- Digital readout system (DRO)
- Quick change tool post & holders
- Taper turning attachment
Order Machines(OEM) 220V/60HZ and Inch-type Screw
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
